GV3P32

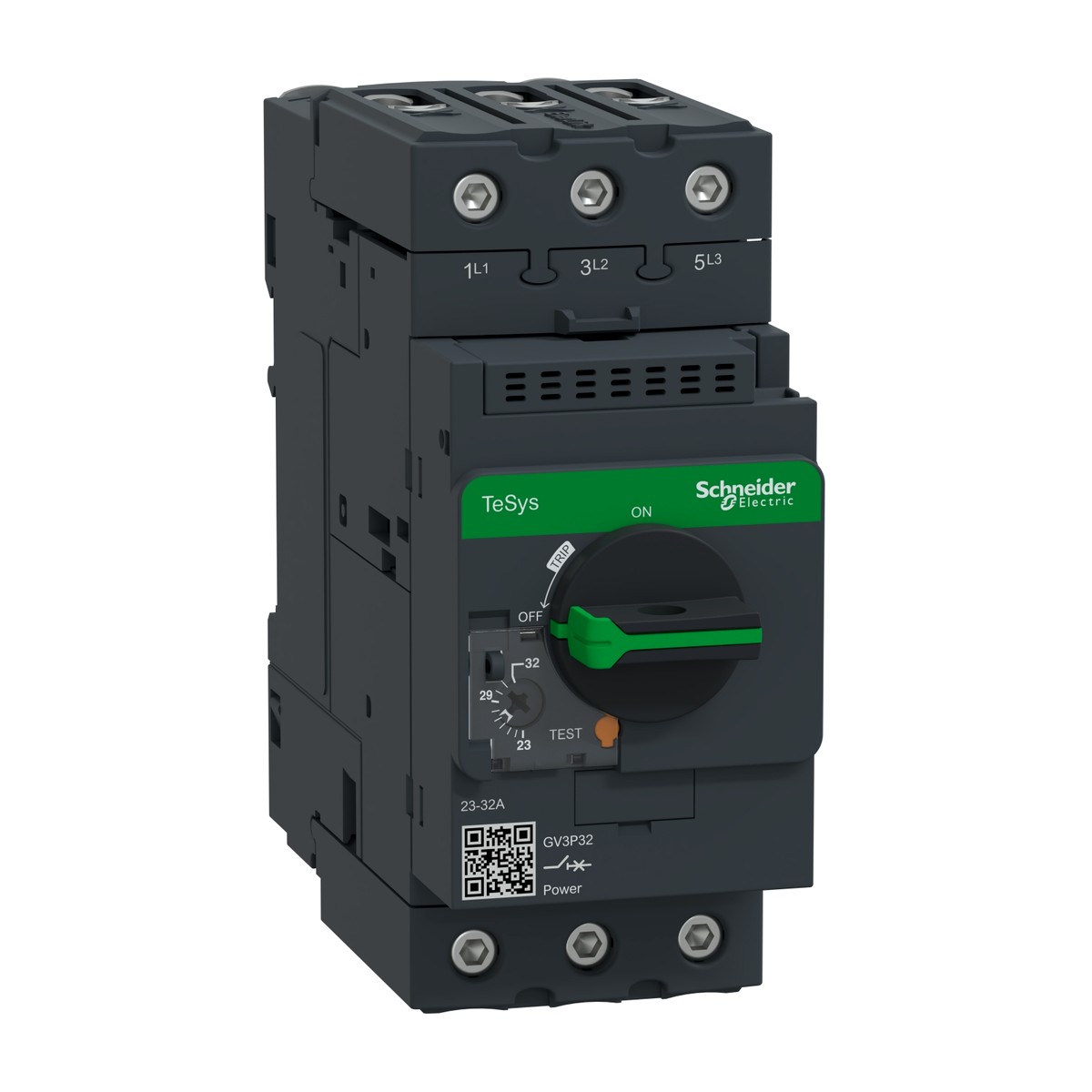

Schneider Electric GV3P32 TeSys GV3 Motor Circuit Breaker. The Schneider Electric TeSys GV3P32 Motor Circuit Breaker delivers robust and reliable thermal-magnetic protection for medium and large AC motors in demanding industrial environments. Part of the acclaimed TeSys Deca range, this GV3P series breaker is engineered with a 3P configuration and a 32 A rated current, featuring an adjustable thermal protection range of 23…32 A and a magnetic tripping current of 448 A. It boasts an impressive breaking capacity of 100 kA Icu at 400/415 V AC 50/60 Hz, making it suitable for motor power up to 15 kW at these common regional voltages. Equipped with a user-friendly rotary handle and innovative EverLink terminals, the Schneider Electric GV3P32 ensures secure and simplified wiring. Its IP20 protection rating and -20…60 °C operational temperature range guarantee performance even in harsh conditions. Ideal for critical applications across Egypt and the Gulf, including cement plants, oil and gas facilities, water treatment plants, food and beverage processing, and building services, this motor circuit breaker is designed for both 35 mm DIN rail and panel mounting.
Details
- Brand: Schneider Electric
- Part number: GV3P32
- Series: TeSys Deca
- Category: Motor Circuit Breaker
Related Schneider Electric parts
- Schneider Electric GV3P50 — TeSys GV3 Motor Circuit Breaker 3P 37-50A Thermal Magnetic
- Schneider Electric GV3P65 — TeSys Deca GV3 Motor Circuit Breaker 65 A
- Schneider Electric GV3P73 — TeSys GV3P motor circuit breaker 3P 62-73A thermal magnetic with EverLink terminals
- TeSys GV3P80 Motor Circuit Breaker 80 A 3P Thermal-Magnetic
- Schneider Electric LAD9R1 — Kit for assembling 3P reversing contactors, LC1D09-D38 with screw clamp terminals, without electrical interlock
- Schneider Electric LC1D066BD — Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 6A, 24VDC coil
- Schneider Electric LC1D066F7 — Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 6A, 110VAC 50/60Hz coil
- Schneider Electric LC1D066M7 — Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 6A, 220VAC 50/60Hz coil
- Schneider Electric LC1D093B7 — Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 24V AC 50/60Hz coil, spring terminals
- Schneider Electric LC1D093BD — TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 24 V DC coil
- Schneider Electric LC1D093BL — Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 24V DC low consumption coil, spring terminals
- Schneider Electric LC1D093E7 — Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 48V AC 50/60Hz coil, spring terminals
Specifications
- Depth
- 136 mm
- Width
- 55 mm
- Height
- 132 mm
- Standards
- EN/IEC 60947-2, EN/IEC 60947-4-1
- Terminals
- EverLink terminals
- Fixing mode
- 35 mm symmetrical DIN rail: clipped; Panel: screwed (with 3 x M4 screws)
- Control type
- Rotary handle
- Network type
- AC
- Motor power kW
- 15 kW at 400/415 V AC 50/60 Hz
- Product weight
- 0.96 kg
- Breaking capacity
- 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
- Network frequency
- 50/60 Hz
- Poles description
- 3P
- [In] rated current
- 32 A
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- GV3P32
- Magnetic tripping current
- 448 A
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz conforming to IEC 60947-2
- Thermal protection adjustment range
- 23…32 A conforming to IEC 60947-2
- Ambient air temperature for operation
- -20…60 °C
