GV3P18

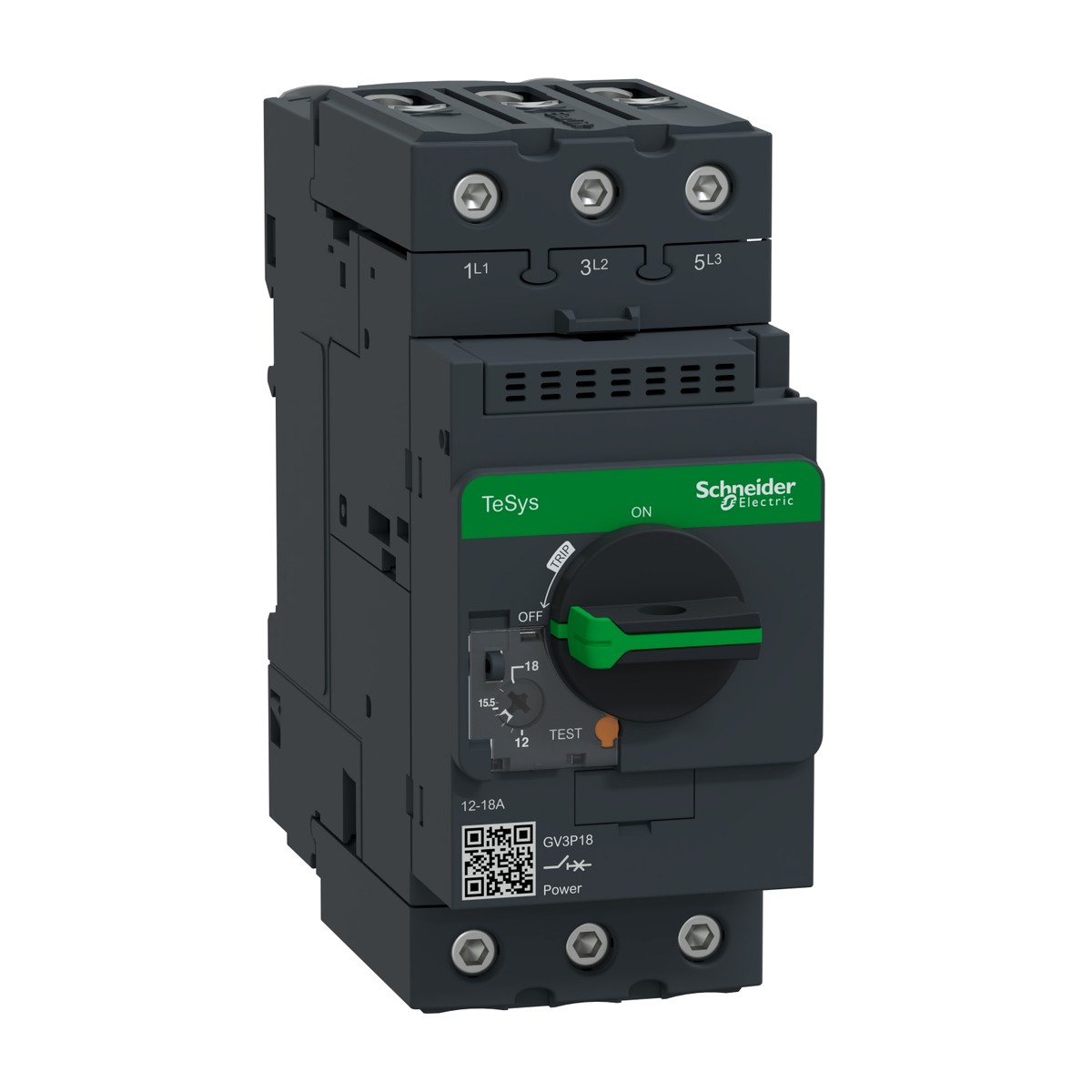

Schneider Electric GV3P18 TeSys Deca motor circuit breaker 18 A 3P. The Schneider Electric GV3P18 motor circuit breaker, part of the robust TeSys Deca range, provides reliable motor protection with advanced thermal-magnetic tripping technology. Designed for medium-sized AC motors, this 3-pole breaker offers a rated current of 18 A and features a thermal protection adjustment range from 12 to 18 A. It boasts an impressive breaking capacity of 100 kA Icu at 400/415 V AC, ensuring high safety and system integrity. Equipped with EverLink terminals and a user-friendly rotary handle, the GV3P18 guarantees secure connections and straightforward operation. With an IP20 degree of protection and operational efficiency in ambient temperatures from -20 to 60 °C, this unit is built for demanding industrial environments. Weighing 0.96 kg and measuring 55x132x136 mm, it is suitable for diverse applications across Egypt and the Gulf, including cement production, oil and gas facilities, water treatment plants, food and beverage processing, textile manufacturing, and building services.
Details
- Brand: Schneider Electric
- Part number: GV3P18
- Series: TeSys Deca
- Category: Motor Circuit Breaker
Related Schneider Electric parts
- Schneider Electric GV3P25 — TeSys GV3P Motor Circuit Breaker, 3P, 17-25A Thermal-Magnetic, EverLink Terminals
- TeSys GV3 Motor Circuit Breaker GV3P32
- Schneider Electric GV3P50 — TeSys GV3 Motor Circuit Breaker 3P 37-50A Thermal Magnetic
- Schneider Electric GV3P65 — TeSys Deca GV3 Motor Circuit Breaker 65 A
- Schneider Electric GV3P73 — TeSys GV3P motor circuit breaker 3P 62-73A thermal magnetic with EverLink terminals
- TeSys GV3P80 Motor Circuit Breaker 80 A 3P Thermal-Magnetic
- Schneider Electric LAD9R1 — Kit for assembling 3P reversing contactors, LC1D09-D38 with screw clamp terminals, without electrical interlock
- Schneider Electric LC1D066BD — Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 6A, 24VDC coil
- Schneider Electric LC1D066F7 — Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 6A, 110VAC 50/60Hz coil
- Schneider Electric LC1D066M7 — Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 6A, 220VAC 50/60Hz coil
- Schneider Electric LC1D093B7 — Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 24V AC 50/60Hz coil, spring terminals
- Schneider Electric LC1D093BD — TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 24 V DC coil
Specifications
- Control type
- Rotary handle
- Network type
- AC
- Terminal type
- EverLink terminals
- Product weight
- 0.96 kg
- Network frequency
- 50/60 Hz
- Poles description
- 3P
- Dimensions (WxHxD)
- 55 mm x 132 mm x 136 mm
- [In] rated current
- 18 A
- Trip unit technology
- Thermal-magnetic
- Product certifications
- CCC, UL, CSA, EAC, ATEX, LROS (Lloyds register of shipping), BV, ABS, DNV-GL, UKCA
- IP degree of protection
- IP20
- Manufacturer part number
- GV3P18
- Magnetic tripping current
- 252 A
- Motor power kW at 400/415 V AC
- 7.5 kW
- [Ue] rated operational voltage
- 690 V AC
- Breaking capacity at 400/415 V AC
- 100 kA Icu
- Thermal protection adjustment range
- 12…18 A
- Ambient air temperature for operation
- -20…60 °C
