O5E200

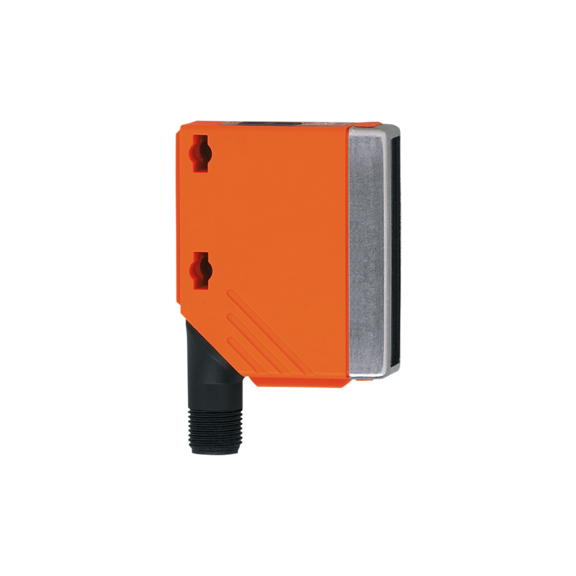

IFM O5E200 — Through-beam sensor receiver

IFM O5E200 Through-beam sensor receiver. IFM lists these product characteristics: Very long range, Robust housing for use in harsh industrial environments, Clearly visible indication of the switching status, Excellent price/performance ratio, With connector that can be rotated by 90°.

Details

Related IFM parts

Request a quote for O5E200

Specifications

EMC
EN 60947-5-2
Display
Switching status: 1 x LED, yellow
Housing
rectangular
Remarks
cULus - Class 2 source required
Material
operator interface: TPE; housing: PA; Front framework: stainless steel
Connector
1 x M12; coding: A; Contacts: 4
Range [m]
< 20
Protection
IP 67
Weight [g]
61.5
Application
Industrial applications
MTTF [years]
1134
Lens material
front lens:PMMA
Pack quantity
1 pcs.
Type of light
red light
Lens alignment
Side sensing
Dimensions [mm]
56 x 18.2 x 46.8
Output function
dark-on mode
IFM product code
O5E200
Protection class
II
Range adjustable
no
Wave length [nm]
624
Electrical design
PNP
Function principle
Through-beam sensor
Overload protection
yes
Operating voltage [V]
10...36 DC
Transmitter / receiver
receiver
Current consumption [mA]
10
Short-circuit protection
yes
Ambient temperature [°C]
-25...60
Reverse polarity protection
yes
Switching frequency DC [Hz]
1000
Type of short-circuit protection
yes (non-latching)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
200
