O5H205

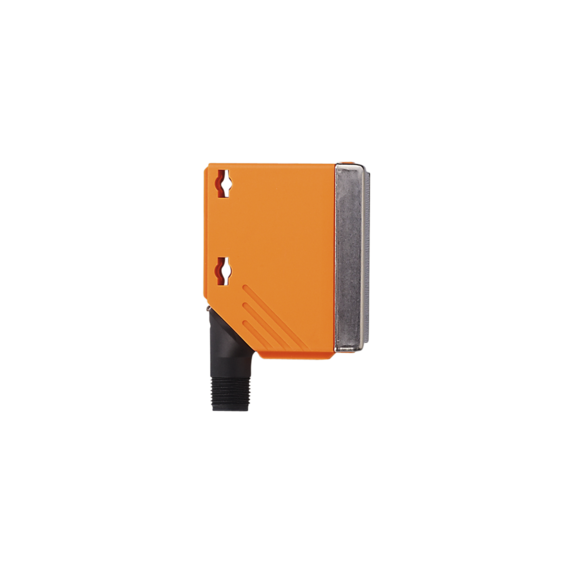

IFM O5H205 — Diffuse reflection sensors with background suppression

IFM O5H205 Diffuse reflection sensors with background suppression. IFM lists these product characteristics: Very long range, Precise background suppression, Intuitive setting of the sensitivity via potentiometer, Robust housing for use in harsh industrial environments, Excellent price/performance ratio.

Details

Related IFM parts

Request a quote for O5H205

Specifications

EMC
EN 60947-5-2
Display
Switching status: 1 x LED, yellow
Housing
rectangular
Material
operator interface: TPE; housing: PA; Front framework: stainless steel
Connector
1 x M12; coding: A; Contacts: 4
Protection
IP 65
Range [mm]
50...1400; (white paper 200 x 200 mm 90 % remission)
Weight [g]
63
Application
Industrial applications
MTTF [years]
331
Lens material
front lens:PMMA
Pack quantity
1 pcs.
Type of light
red light
Lens alignment
Side sensing
Dimensions [mm]
56 x 18.2 x 46.8
Output function
dark-on mode
Special feature
Background suppression
IFM product code
O5H205
Protection class
II
Range adjustable
yes
Electrical design
PNP
Function principle
Diffuse reflection sensor
Operating elements
potentiometer
Overload protection
yes
Operating voltage [V]
10...36 DC; (cULus - Class 2 source required)
Current consumption [mA]
25
Short-circuit protection
yes
Ambient temperature [°C]
-25...60
Reverse polarity protection
yes
Switching frequency DC [Hz]
1000
Max. light spot diameter [mm]
50
Light spot dimensions refer to
Range
Background suppression available
yes
Type of short-circuit protection
yes (non-latching)
Max. voltage drop switching output DC [V]
2.5
Range on black object (6 % remission) [mm]
50...550
Range on grey object (18 % remission) [mm]
50...800
Range on white object (90 % remission) [mm]
50...1400
Permanent current rating of switching output DC [mA]
200
