O5H700

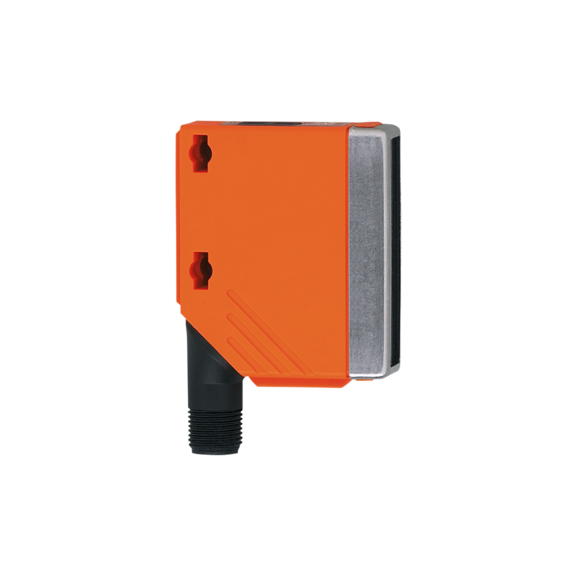

IFM O5H700 LASER diffuse reflection sensor. IFM lists these product characteristics: Sensitivity adjustable via teach buttons, Programmable light-on/dark-on mode, Precise detection of small parts, Visible red light for simple alignment, Precise background suppression.
Details
- Brand: IFM
- Part number: O5H700
- Series: O5
- Category: Photoelectric sensors
Related IFM parts
- Contrast sensor
- Retro-reflective sensor
- Retro-reflective sensor
- Retro-reflective sensor
- Retro-reflective sensor
- Retro-reflective sensor
- Retro-reflective sensor
- Retro-reflective sensor
- Retro-reflective sensor
- Retro-reflective LASER sensor
- Through-beam sensor transmitter
- Through-beam sensor transmitter
Specifications
- EMC
- EN 60947-5-2
- Display
- Switching status: 1 x LED, yellow
- Housing
- rectangular
- Remarks
- cULus - Class 2 source required
- Material
- housing: PA; Front framework: stainless steel; operator interface: TPU (urethane)
- Connector
- 1 x M12; coding: A; Contacts: 4
- Protection
- IP 67
- Range [mm]
- 20...200; (white paper 200 x 200 mm 90 % remission)
- Weight [g]
- 68.5
- Application
- Industrial applications
- MTTF [years]
- 454
- Lens material
- front lens:PMMA
- Pack quantity
- 1 pcs.
- Type of light
- red light
- Lens alignment
- Side sensing
- Teach function
- yes
- Dimensions [mm]
- 56 x 18.2 x 46.8
- Electronic lock
- yes
- Output function
- light-on/dark-on mode; (programmable)
- Special feature
- Background suppression
- IFM product code
- O5H700
- Protection class
- II
- Range adjustable
- yes
- Wave length [nm]
- 655
- Electrical design
- PNP
- Function principle
- Diffuse reflection sensor
- Overload protection
- yes
- Operating voltage [V]
- 10...36 DC
- Laser protection class
- 1
- Tightening torque [Nm]
- < 2; (when using a mounting screw M5)
- Current consumption [mA]
- 15
- Short-circuit protection
- yes
- Ambient temperature [°C]
- -10...60
- Notes on laser protection
- Caution:: Laser light; laser class:: 1; EN / IEC60825-1:2007; EN / IEC60825-1:2014; Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019.
- Reverse polarity protection
- yes
- Switching frequency DC [Hz]
- 1000
- Max. light spot diameter [mm]
- 1.2
- Background suppression available
- yes
- Type of short-circuit protection
- yes (non-latching)
- Max. voltage drop switching output DC [V]
- 2.5
- Range on black object (6 % remission) [mm]
- 20...80
- Range on grey object (18 % remission) [mm]
- 20...160
- Range on white object (90 % remission) [mm]
- 20...200
- Diameter of the smallest detectable object [mm]
- 1.5
- Permanent current rating of switching output DC [mA]
- 200
