O5P500

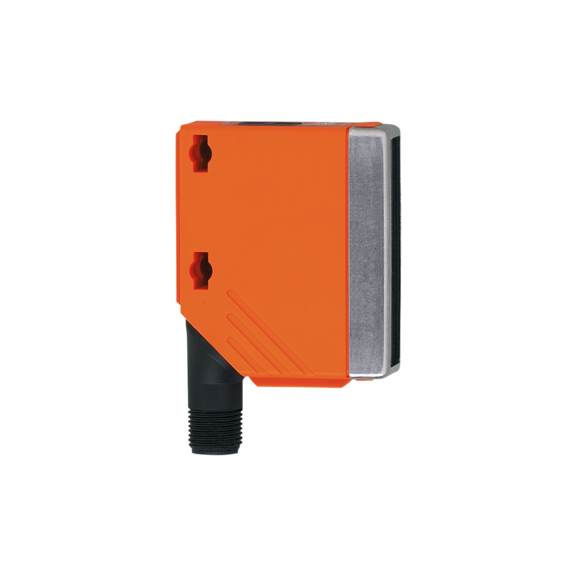

IFM O5P500 Retro-reflective sensor. IFM lists these product characteristics: Sensitivity adjustable via teach buttons, Robust housing for use in harsh industrial environments, Programmable light-on/dark-on mode, Very long range, With connector that can be rotated by 270°.
Details
- Brand: IFM
- Part number: O5P500
- Series: O5
- Category: Photoelectric sensors
Related IFM parts
- Retro-reflective sensor
- Retro-reflective sensor
- Retro-reflective sensor
- Retro-reflective LASER sensor
- Through-beam sensor transmitter
- Through-beam sensor transmitter
- Through-beam sensor transmitter
- Through-beam sensor transmitter
- Through-beam sensor receiver
- Laser distance sensor
- Through-beam laser sensor receiver
- Through-beam laser sensor transmitter
Specifications
- EMC
- EN 60947-5-2
- Display
- Switching status: 1 x LED, yellow
- Housing
- rectangular
- Material
- housing: PA; Front framework: stainless steel; operator interface: TPU (urethane)
- Connector
- 1 x M12; coding: A; Contacts: 4
- Protection
- IP 67
- Weight [g]
- 67.5
- Application
- Industrial applications
- MTTF [years]
- 435
- Lens material
- front lens:PMMA
- Pack quantity
- 1 pcs.
- Type of light
- red light
- Lens alignment
- Side sensing
- Teach function
- yes
- Dimensions [mm]
- 56 x 18.2 x 46.8
- Electronic lock
- yes
- Output function
- light-on/dark-on mode; (programmable)
- Special feature
- polarization filter
- IFM product code
- O5P500
- Protection class
- II
- Range adjustable
- yes
- Wave length [nm]
- 624
- Electrical design
- PNP
- Function principle
- Retro-reflective sensor
- Overload protection
- yes
- Operating voltage [V]
- 10...36 DC; (cULus - Class 2 source required)
- Tightening torque [Nm]
- < 2; (when using a mounting screw M5)
- Current consumption [mA]
- 20
- Short-circuit protection
- yes
- Ambient temperature [°C]
- -25...60
- Reverse polarity protection
- yes
- Switching frequency DC [Hz]
- 2000
- Max. light spot diameter [mm]
- 250
- Polarization filter available
- yes
- Light spot dimensions refer to
- at maximum range
- Type of short-circuit protection
- yes (non-latching)
- Max. voltage drop switching output DC [V]
- 2.5
- Range referred to prismatic reflector [m]
- 0.075...10; (Prismatic reflector Ø 80 E20005)
- Permanent current rating of switching output DC [mA]
- 200
