O5S51A

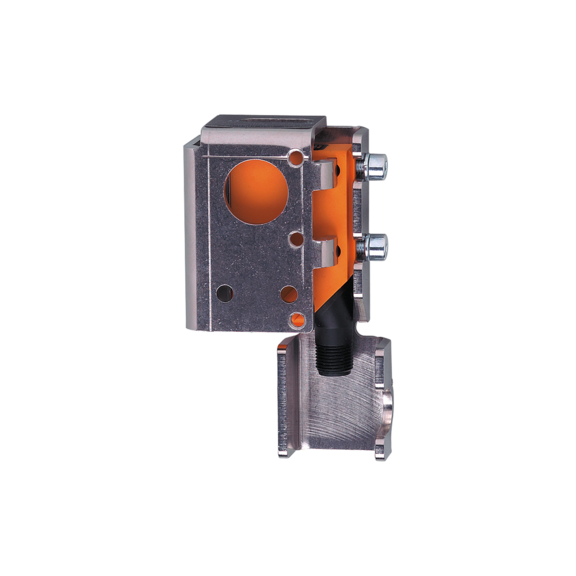

IFM O5S51A Through-beam sensor transmitter. IFM lists these product characteristics: For applications in hazardous areas, Robust housing with stainless steel protective bracket, Very long range, Clearly visible indication of the readiness for operation, Extensive range of mounting components.
Details
- Brand: IFM
- Part number: O5S51A
- Series: O5
- Category: Photoelectric sensors
Related IFM parts
- Through-beam sensor receiver
- Laser distance sensor
- Through-beam laser sensor receiver
- Through-beam laser sensor transmitter
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Color sensor
- Laser distance sensor
- Laser distance sensor
- Laser distance sensor
- Laser distance sensor
- Laser distance sensor
Specifications
- EMC
- EN 60947-5-2
- Display
- Power: 1 x LED, green
- Housing
- rectangular
- Material
- housing: PA; Front framework: stainless steel; operator interface: TPU (urethane); Protective cover: stainless steel
- Connector
- 1 x M12; coding: A; Contacts: 4
- Range [m]
- < 25
- Protection
- IP 65
- Weight [g]
- 332.5
- Application
- For applications in hazardous areas
- ATEX marking
- II 3D Ex tc IIIC T105°C Dc X
- MTTF [years]
- 617
- Lens material
- front lens:PMMA
- Pack quantity
- 1 pcs.
- Type of light
- red light
- Lens alignment
- Side sensing
- Dimensions [mm]
- 105 x 30 x 62
- IFM product code
- O5S51A
- Protection class
- III
- Range adjustable
- no
- Function principle
- Through-beam sensor
- Operating voltage [V]
- 10...30 DC; (when used outside the hazardous area: 10...36)
- Transmitter / receiver
- transmitter
- Current consumption [mA]
- 20
- Ambient temperature [°C]
- -10...50
- Note on ambient temperature
- when used outside the hazardous area: -25...60 °C
- Reverse polarity protection
- yes
- Max. light spot diameter [mm]
- 625
