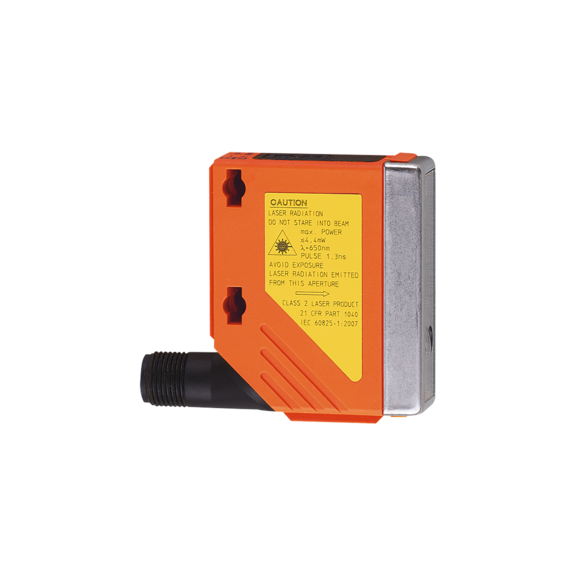

IFM O5D100 Laser distance sensor. IFM lists these product characteristics: Very long range due to time-of-flight measurement, Reliable background suppression and color-independent detection, With display and pushbuttons for precise switch point setting, Oblique angle to the object possible, Reliable detection of glossy surfaces.
Details
- Brand: IFM
- Part number: O5D100
- Series: O5
- Category: Photoelectric sensors
Related IFM parts
- Laser distance sensor
- Laser distance sensor
- Laser distance sensor
- Laser distance sensor
- Laser distance sensor
- Through-beam sensor receiver
- Through-beam sensor receiver
- Through-beam sensor receiver
- Retro-reflective sensor for the detection of transparent objects
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
Specifications
- EMC
- EN 60947-5-2
- Display
- Switching status: LED, yellow Switching output PIN 4; Power: LED, green; Display: alphanumeric display, 3-digit
- Housing
- rectangular
- Material
- housing: PA; Front framework: stainless steel; operator interface: TPU (urethane); lens: PMMA
- Profiles
- Smart Sensor - SSP 0: Generic Profiled Sensor; Function: Multiple switching signal; Function: Process data variable
- SIO mode
- yes
- Connector
- 1 x M12; coding: A; Contacts: 4
- Protection
- IP 65; IP 67
- Weight [g]
- 61.6
- Application
- Industrial applications
- Display unit
- cm
- MTTF [years]
- 151
- Pack quantity
- 1 pcs.
- SDCI standard
- IEC 61131-9
- Type of light
- red light
- Lens alignment
- Side sensing
- Dimensions [mm]
- 56 x 18.2 x 46.8
- Output function
- normally open / closed; (complementary)
- Special feature
- Background suppression
- IFM product code
- O5D100
- IO-Link revision
- 1.1
- Protection class
- III
- Shock resistance
- DIN EN 60068-2-27: 50 g 6 shocks / 11 ms half-sine (x, y, z)
- Wave length [nm]
- 650
- Electrical design
- PNP
- Transmission type
- COM2 (38,4 kBaud)
- Typ. lifetime [h]
- 50000
- Sampling rate [Hz]
- 33
- Measuring range [m]
- 0.03...2
- Overload protection
- yes
- Process data analog
- 1
- Process data binary
- 1
- Supported DeviceIDs
- Type of operation: DeviceID; default: 372
- Vibration resistance
- DIN EN 60068-2-6: 10 g (10...55 Hz) / 120 min. per axis (x, y, z)
- Operating voltage [V]
- 10...30 DC; (cULus - Class 2 source required)
- Laser protection class
- 2
- Communication interface
- IO-Link
- Total number of outputs
- 2
- Current consumption [mA]
- 75; (24 V)
- Short-circuit protection
- yes
- Ambient temperature [°C]
- -25...60
- Notes on laser protection
- Caution:: Laser light; Power:: <= 4,0 mW; Wave length:: 650 nm; pulse:: 1,3 ns; Do not stare into beam.; Avoid exposure to the laser light.; laser class:: 2; EN / IEC60825-1:2007; EN / IEC60825-1:2014; Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019.
- Number of digital outputs
- 2
- Background suppression [m]
- < 20
- Note on ambient temperature
- at ta < -10 °C warm-up is necessary, laser is off
- Reverse polarity protection
- yes
- Switching frequency DC [Hz]
- 11
- Min. process cycle time [ms]
- 6.4
- Number of inputs and outputs
- Number of digital outputs: 2
- Max. light spot diameter [mm]
- 5
- Detection range hysteresis [%]
- < 2.5
- Light spot dimensions refer to
- 2 m
- Background suppression available
- yes
- Type of short-circuit protection
- yes (non-latching)
- Max. current load per output [mA]
- 100
- Note on monitoring range hysteresis
- black 6 % remission
- Max. immunity to extraneous light [klx]
- 10; (on the object)
