O5E501

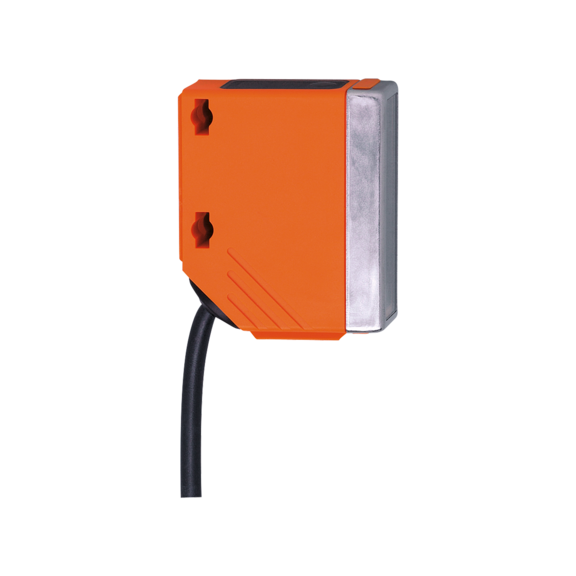

IFM O5E501 — Through-beam sensor receiver

IFM O5E501 Through-beam sensor receiver. IFM lists these product characteristics: Sensitivity adjustable via teach buttons, Robust housing for use in harsh industrial environments, Programmable light-on/dark-on mode, Very long range, With connection cable.

Details

Related IFM parts

Request a quote for O5E501

Specifications

EMC
EN 60947-5-2
Cable
2 m, PUR; 3 x 0.34 mm²
Display
Switching status: 1 x LED, yellow
Housing
rectangular
Remarks
cULus - Class 2 source required
Material
housing: PA; Front framework: stainless steel; operator interface: TPU (urethane)
Range [m]
< 25
Protection
IP 67
Weight [g]
111.15
Application
Industrial applications
MTTF [years]
801
Lens material
front lens:PMMA
Pack quantity
1 pcs.
Type of light
red light
Lens alignment
Side sensing
Teach function
yes
Dimensions [mm]
56 x 18.2 x 46.8
Electronic lock
yes
Output function
light-on/dark-on mode; (programmable)
IFM product code
O5E501
Protection class
II
Range adjustable
yes
Wave length [nm]
624
Electrical design
PNP
Function principle
Through-beam sensor
Overload protection
yes
Operating voltage [V]
10...36 DC
Transmitter / receiver
receiver
Current consumption [mA]
11
Short-circuit protection
yes
Ambient temperature [°C]
-25...60
Reverse polarity protection
yes
Switching frequency DC [Hz]
1000
Type of short-circuit protection
yes (non-latching)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
200
