O5E51A

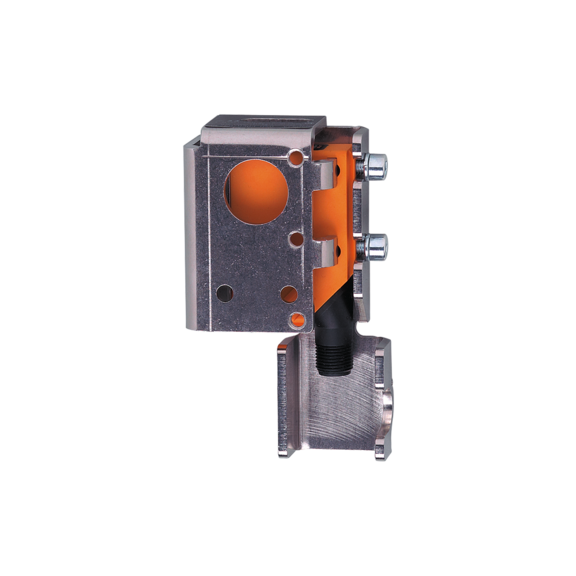

IFM O5E51A — Through-beam sensor receiver

IFM O5E51A Through-beam sensor receiver. IFM lists these product characteristics: For applications in hazardous areas, Robust housing with stainless steel protective bracket, Very long range, Sensitivity adjustable via teach buttons, Programmable light-on/dark-on mode.

Details

Related IFM parts

Request a quote for O5E51A

Specifications

EMC
EN 60947-5-2
Display
Switching status: 1 x LED, yellow
Housing
rectangular
Material
housing: PA; Front framework: stainless steel; operator interface: TPU (urethane); Protective cover: stainless steel
Connector
1 x M12; coding: A; Contacts: 4
Range [m]
< 25
Protection
IP 65
Weight [g]
336
Application
For applications in hazardous areas
ATEX marking
II 3D Ex tc IIIC T105°C Dc X
MTTF [years]
801
Lens material
front lens:PMMA
Pack quantity
1 pcs.
Type of light
red light
Lens alignment
Side sensing
Teach function
yes
Dimensions [mm]
105 x 30 x 62
Electronic lock
yes
Output function
light-on/dark-on mode; (programmable)
IFM product code
O5E51A
Protection class
III
Range adjustable
yes
Electrical design
PNP
Function principle
Through-beam sensor
Overload protection
yes
Operating voltage [V]
10...30 DC; (when used outside the hazardous area: 10...36)
Transmitter / receiver
receiver
Current consumption [mA]
11
Short-circuit protection
yes
Ambient temperature [°C]
-10...50
Note on ambient temperature
when used outside the hazardous area: -25...60 °C
Reverse polarity protection
yes
Switching frequency DC [Hz]
1000
Type of short-circuit protection
yes (non-latching)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100; (when used outside the hazardous area: 200)
