O5G500

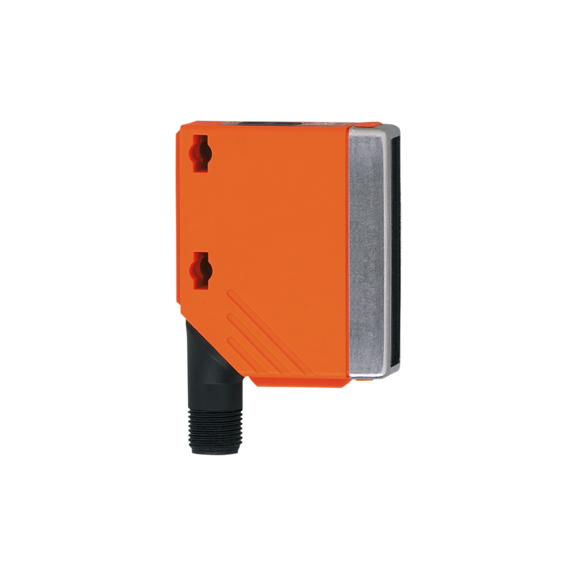

IFM O5G500 Retro-reflective sensor for the detection of transparent objects. IFM lists these product characteristics: Reliable detection of glass, film, PET bottles and transparent packaging, Automatic switch point adjustment in case of soiling, High switching frequency for fast processes, Visible red light for simple alignment, Extensive range of mounting components.
Details
- Brand: IFM
- Part number: O5G500
- Series: O5
- Category: Photoelectric sensors
Related IFM parts
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- LASER diffuse reflection sensor
- Contrast sensor
- Retro-reflective sensor
- Retro-reflective sensor
- Retro-reflective sensor
- Retro-reflective sensor
Specifications
- EMC
- EN 60947-5-2
- Display
- Switching status: 1 x LED, yellow; Function: 1 x LED, red
- Housing
- rectangular
- Material
- housing: PA; Front framework: stainless steel; operator interface: TPU (urethane)
- Connector
- 1 x M12; coding: A; Contacts: 5
- Protection
- IP 67
- Weight [g]
- 73
- Application
- High switching frequency for fast processes
- MTTF [years]
- 405
- Lens material
- front lens:PMMA
- Pack quantity
- 1 pcs.
- Type of light
- red light
- Lens alignment
- Side sensing
- Teach function
- yes
- Dimensions [mm]
- 56 x 18.2 x 46.8
- Electronic lock
- yes
- Output function
- light-on/dark-on mode; (programmable)
- Special feature
- polarization filter; Function check output
- IFM product code
- O5G500
- Protection class
- II
- Range adjustable
- yes
- Wave length [nm]
- 624
- Electrical design
- PNP/NPN; (Automatic load detection PNP/NPN)
- Function principle
- Retro-reflective sensor
- Overload protection
- yes
- Function check output
- yes
- Operating voltage [V]
- 10...36 DC; (cULus - Class 2 source required)
- Tightening torque [Nm]
- < 2; (when using a mounting screw M5)
- Current consumption [mA]
- < 50
- Short-circuit protection
- yes
- Ambient temperature [°C]
- -25...60
- Reverse polarity protection
- yes
- Switching frequency DC [Hz]
- 1500
- Max. light spot diameter [mm]
- 80
- Polarization filter available
- yes
- Light spot dimensions refer to
- at maximum range
- Type of short-circuit protection
- yes (non-latching)
- Max. voltage drop switching output DC [V]
- 2.5
- Range referred to prismatic reflector [m]
- 0...3; (Prismatic reflector 100 x 100 mm E20454)
- Max. voltage drop of function check output [V]
- 2.5
- Max. current load for function check output [mA]
- 50
- Permanent current rating of switching output DC [mA]
- 200
