O5K500

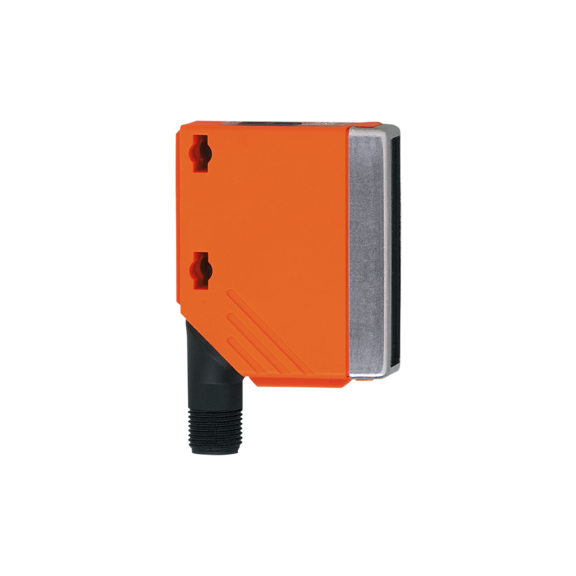

IFM O5K500 — Contrast sensor

IFM O5K500 Contrast sensor. IFM lists these product characteristics: Reliable detection of print marks and particularly flat objects, RGB light source, highest contrast color selected during teach-in, Easy adjustment of the device function via teach, Very high switching frequency of 10,000 Hz for fast processes, Extensive range of mounting components.

Details

Related IFM parts

Request a quote for O5K500

Specifications

EMC
EN 60947-5-2
Display
Switching status: 1 x LED, yellow
Housing
rectangular
Remarks
cULus - Class 2 source required
Material
housing: PA; Front framework: stainless steel; operator interface: TPU / PC
Connector
1 x M12; coding: A; Contacts: 5
Protection
IP 67
Range [mm]
18...22
Weight [g]
79.5
Application
High switching frequency for fast processes
MTTF [years]
568
Lens material
front lens:PMMA
Pack quantity
1 pcs.
Type of light
red light; green light; blue light
Lens alignment
Side sensing
Teach function
yes
Dimensions [mm]
56 x 18.2 x 46.8
Electronic lock
yes
Output function
light-on/dark-on mode; (programmable)
IFM product code
O5K500
Protection class
II
Wave length [nm]
625; 525; 465
Electrical design
PNP/NPN; (Automatic load detection PNP/NPN)
Response time [ms]
< 0.05
Overload protection
yes
Operating voltage [V]
10...36 DC
Current consumption [mA]
50; ((24 V))
Short-circuit protection
yes
Ambient temperature [°C]
-25...60
Max. light spot width [mm]
1.5
Max. light spot height [mm]
5
Reverse polarity protection
yes
Switching frequency DC [Hz]
10000
Type of short-circuit protection
yes (non-latching)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
200
