O5P51A

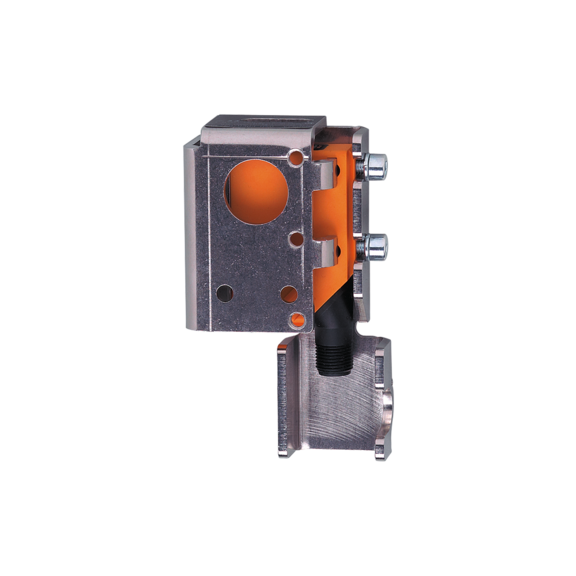

IFM O5P51A Retro-reflective sensor. IFM lists these product characteristics: For applications in hazardous areas, Robust housing with stainless steel protective bracket, Very long range, Sensitivity adjustable via teach buttons, Programmable light-on/dark-on mode.
Details
- Brand: IFM
- Part number: O5P51A
- Series: O5
- Category: Photoelectric sensors
Related IFM parts
- Retro-reflective LASER sensor
- Through-beam sensor transmitter
- Through-beam sensor transmitter
- Through-beam sensor transmitter
- Through-beam sensor transmitter
- Through-beam sensor receiver
- Laser distance sensor
- Through-beam laser sensor receiver
- Through-beam laser sensor transmitter
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Color sensor
Specifications
- EMC
- EN 60947-5-2
- Display
- Switching status: 1 x LED, yellow
- Housing
- rectangular
- Material
- housing: PA; Front framework: stainless steel; operator interface: TPU (urethane); Protective cover: stainless steel
- Connector
- 1 x M12; coding: A; Contacts: 4
- Protection
- IP 65
- Weight [g]
- 336.5
- Application
- For applications in hazardous areas
- ATEX marking
- II 3D Ex tc IIIC T105°C Dc X
- MTTF [years]
- 435
- Lens material
- front lens:PMMA
- Pack quantity
- 1 pcs.
- Type of light
- red light
- Lens alignment
- Side sensing
- Teach function
- yes
- Dimensions [mm]
- 105 x 30 x 62
- Electronic lock
- yes
- Output function
- light-on/dark-on mode; (programmable)
- Special feature
- polarization filter
- IFM product code
- O5P51A
- Protection class
- III
- Range adjustable
- yes
- Electrical design
- PNP
- Function principle
- Retro-reflective sensor
- Overload protection
- yes
- Operating voltage [V]
- 10...30 DC; (when used outside the hazardous area: 10...36)
- Current consumption [mA]
- 20
- Short-circuit protection
- yes
- Ambient temperature [°C]
- -10...50
- Note on ambient temperature
- when used outside the hazardous area: -25...60 °C
- Reverse polarity protection
- yes
- Switching frequency DC [Hz]
- 2000
- Max. light spot diameter [mm]
- 250
- Polarization filter available
- yes
- Type of short-circuit protection
- yes (non-latching)
- Max. voltage drop switching output DC [V]
- 2.5
- Range referred to prismatic reflector [m]
- 0.075...10; (Prismatic reflector Ø 80 E20005)
- Permanent current rating of switching output DC [mA]
- 100; (when used outside the hazardous area: 200)
