O5H505

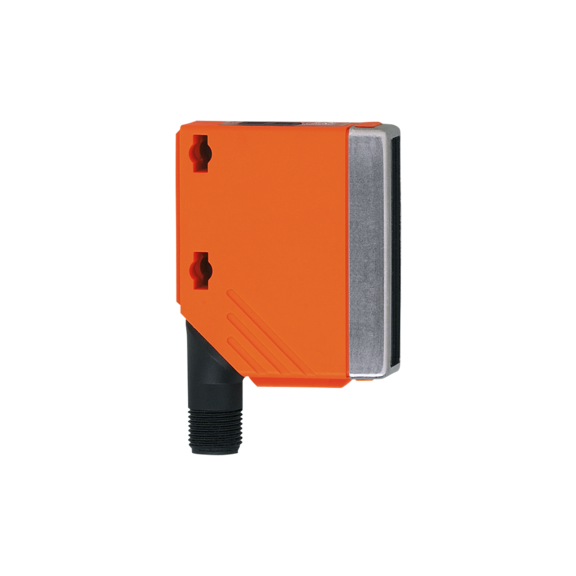

IFM O5H505 Diffuse reflection sensors with background suppression. IFM lists these product characteristics: Sensitivity adjustable via teach buttons, Robust housing for use in harsh industrial environments, Very long range, Precise background suppression, With green LED (readiness for operation).
Details
- Brand: IFM
- Part number: O5H505
- Series: O5
- Category: Photoelectric sensors
Related IFM parts
- Diffuse reflection sensors with background suppression
- Color sensor
- Laser distance sensor
- Laser distance sensor
- Laser distance sensor
- Laser distance sensor
- Laser distance sensor
- Laser distance sensor
- Through-beam sensor receiver
- Through-beam sensor receiver
- Through-beam sensor receiver
- Retro-reflective sensor for the detection of transparent objects
Specifications
- EMC
- EN 60947-5-2
- Display
- Switching status: 1 LED, yellow; Operating voltage: 1 LED, green
- Housing
- rectangular
- Material
- housing: PA; Front framework: stainless steel; operator interface: TPU (urethane)
- Connector
- 1 x M12; coding: A; Contacts: 4
- Protection
- IP 67
- Range [mm]
- 50...1800; (white paper 200 x 200 mm 90 % remission)
- Weight [g]
- 58.1
- Application
- Industrial applications
- UL approval
- Ta: -25...60 °C; Enclosure type: Type 1; voltage supply: Class 2; File number UL: E174191
- Lens material
- front lens:PMMA
- Pack quantity
- 1 pcs.
- Type of light
- red light
- Lens alignment
- Side sensing
- Teach function
- yes
- Dimensions [mm]
- 56 x 18.2 x 46.8
- Electronic lock
- yes
- Output function
- light-on/dark-on mode; (complementary)
- Special feature
- Background suppression
- IFM product code
- O5H505
- Protection class
- II
- Range adjustable
- yes
- Wave length [nm]
- 624
- Electrical design
- PNP
- Function principle
- Diffuse reflection sensor
- Overload protection
- yes
- Operating voltage [V]
- 10...36 DC; (cULus - Class 2 source required)
- Current consumption [mA]
- 25
- Short-circuit protection
- yes
- Ambient temperature [°C]
- -25...60
- Reverse polarity protection
- yes
- Switching frequency DC [Hz]
- 1000
- Max. light spot diameter [mm]
- 50
- Light spot dimensions refer to
- Range
- Background suppression available
- yes
- Type of short-circuit protection
- yes (non-latching)
- Max. voltage drop switching output DC [V]
- 2.5
- Range on black object (6 % remission) [mm]
- 50...600
- Range on grey object (18 % remission) [mm]
- 50...900
- Range on white object (90 % remission) [mm]
- 50...1800
- Permanent current rating of switching output DC [mA]
- 200
