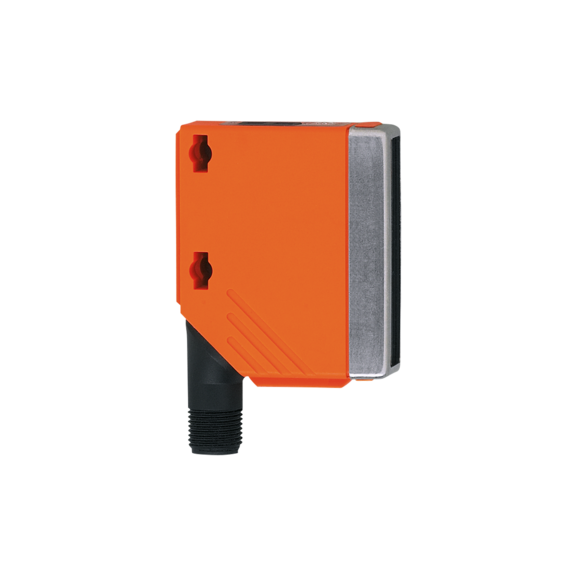

IFM O5C500 — Color sensor

IFM O5C500 Color sensor. IFM lists these product characteristics: Recognition, sorting and checking of objects based on their color, Easy adjustment of the device function via teach, Reliable detection of color shades, High switching frequency for fast processes, Extensive range of mounting components.

Details

Related IFM parts

Request a quote for O5C500

Specifications

EMC
EN 60947-5-2
Display
Switching status: 1 x LED, yellow; Tolerance step: 1 x LED, green
Housing
rectangular
Remarks
cULus - Class 2 source required
Material
housing: PA; Front framework: stainless steel; operator interface: TPU / PC
Connector
1 x M12; coding: A; Contacts: 5
Protection
IP 67
Range [mm]
15...19
Weight [g]
61.3
Application
High switching frequency for fast processes
MTTF [years]
491
Lens material
front lens:PMMA
Pack quantity
1 pcs.
Type of light
red light; green light; blue light
Lens alignment
Side sensing
Teach function
yes
Dimensions [mm]
56 x 18.2 x 46.8
Electronic lock
yes
Output function
light-on/dark-on mode; (programmable)
IFM product code
O5C500
Protection class
II
Wave length [nm]
625; 525; 465
Electrical design
PNP/NPN; (Automatic load detection PNP/NPN)
Response time [s]
< 0.3
Overload protection
yes
Operating voltage [V]
10...36 DC
Current consumption [mA]
50; ((24 V))
Short-circuit protection
yes
Ambient temperature [°C]
-25...60
Max. light spot width [mm]
2.5
Max. light spot height [mm]
6
Reverse polarity protection
yes
Switching frequency DC [Hz]
2000
Type of short-circuit protection
yes (non-latching)
Notes on switching frequency [Hz]
for tolerance step 5
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
200
