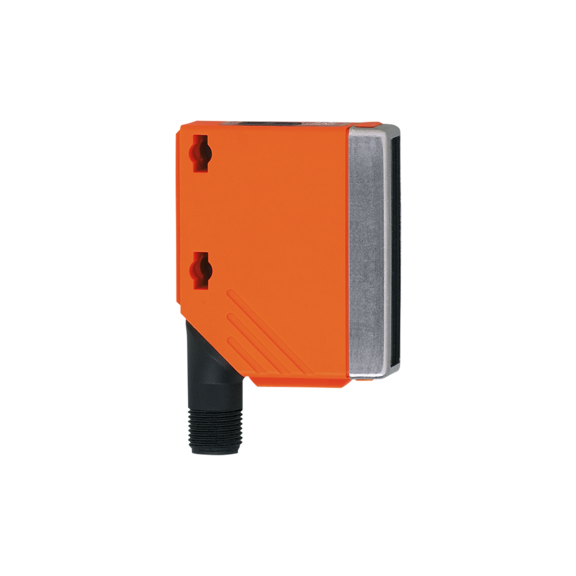

IFM O5H201 — Diffuse reflection sensors with background suppression

IFM O5H201 Diffuse reflection sensors with background suppression. IFM lists these product characteristics: Very long range, Precise background suppression, Intuitive setting of the sensitivity via potentiometer, Robust housing for use in harsh industrial environments, Excellent price/performance ratio.

Details

Related IFM parts

Request a quote for O5H201

Specifications

EMC
EN 60947-5-2
Display
Switching status: 1 x LED, yellow
Housing
rectangular
Remarks
cULus - Class 2 source required
Material
operator interface: TPE; housing: PA; Front framework: stainless steel
Connector
1 x M12; coding: A; Contacts: 4
Protection
IP 65
Range [mm]
50...1400; (white paper 200 x 200 mm 90 % remission)
Weight [g]
62.5
Application
Industrial applications
MTTF [years]
336
Lens material
front lens:PMMA
Pack quantity
1 pcs.
Type of light
red light
Lens alignment
Side sensing
Dimensions [mm]
56 x 18.2 x 46.8
Output function
light-on mode
Special feature
Background suppression
IFM product code
O5H201
Protection class
II
Range adjustable
yes
Wave length [nm]
624
Electrical design
NPN
Function principle
Diffuse reflection sensor
Operating elements
potentiometer
Overload protection
yes
Operating voltage [V]
10...36 DC
Current consumption [mA]
25
Short-circuit protection
yes
Ambient temperature [°C]
-25...60
Reverse polarity protection
yes
Switching frequency DC [Hz]
1000
Max. light spot diameter [mm]
50
Light spot dimensions refer to
Range
Background suppression available
yes
Type of short-circuit protection
yes (non-latching)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
200
