O5H503

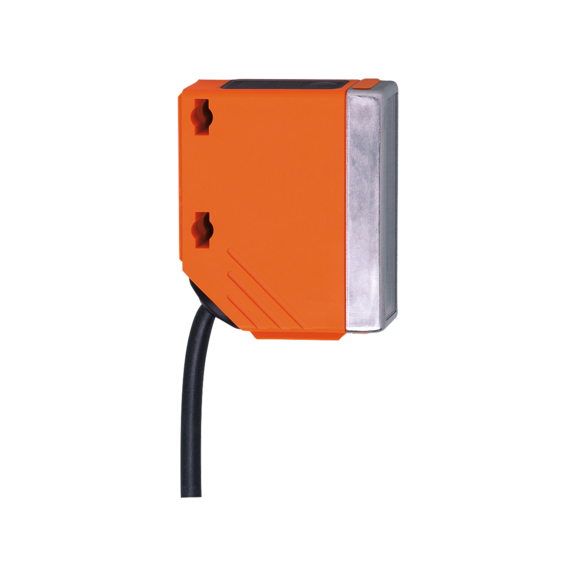

IFM O5H503 — Diffuse reflection sensors with background suppression

IFM O5H503 Diffuse reflection sensors with background suppression. IFM lists these product characteristics: Sensitivity adjustable via teach buttons, Robust housing for use in harsh industrial environments, Programmable light-on/dark-on mode, Very long range, Precise background suppression.

Details

Related IFM parts

Request a quote for O5H503

Specifications

EMC
EN 60947-5-2
Cable
2 m, PUR; 3 x 0.34 mm²
Display
Switching status: 1 x LED, yellow
Housing
rectangular
Remarks
cULus - Class 2 source required
Material
housing: PA; Front framework: stainless steel; operator interface: TPU (urethane)
Protection
IP 67
Range [mm]
50...1800; (white paper 200 x 200 mm 90 % remission)
Weight [g]
111.55
Application
Industrial applications
MTTF [years]
360
Lens material
front lens:PMMA
Pack quantity
1 pcs.
Type of light
red light
Lens alignment
Side sensing
Teach function
yes
Dimensions [mm]
56 x 18.2 x 46.8
Electronic lock
yes
Output function
light-on/dark-on mode; (programmable)
Special feature
Background suppression
IFM product code
O5H503
Protection class
II
Range adjustable
yes
Wave length [nm]
624
Electrical design
PNP
Function principle
Diffuse reflection sensor
Overload protection
yes
Operating voltage [V]
10...36 DC
Current consumption [mA]
25
Short-circuit protection
yes
Ambient temperature [°C]
-25...60
Reverse polarity protection
yes
Switching frequency DC [Hz]
1000
Max. light spot diameter [mm]
50
Light spot dimensions refer to
Range
Background suppression available
yes
Type of short-circuit protection
yes (non-latching)
Max. voltage drop switching output DC [V]
2.5
Range on black object (6 % remission) [mm]
50...600
Range on grey object (18 % remission) [mm]
50...900
Range on white object (90 % remission) [mm]
50...1800
Permanent current rating of switching output DC [mA]
200
