O5S200

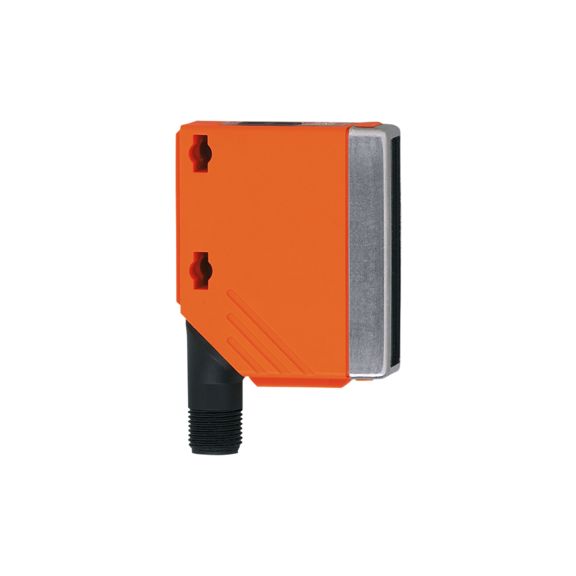

IFM O5S200 Through-beam sensor transmitter. IFM lists these product characteristics: Very long range, Robust housing for use in harsh industrial environments, Clearly visible indication of the readiness for operation, Excellent price/performance ratio, With connector that can be rotated by 270°.
Details
- Brand: IFM
- Part number: O5S200
- Series: O5
- Category: Photoelectric sensors
Related IFM parts
- Through-beam sensor transmitter
- Through-beam sensor transmitter
- Through-beam sensor transmitter
- Through-beam sensor receiver
- Laser distance sensor
- Through-beam laser sensor receiver
- Through-beam laser sensor transmitter
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Color sensor
- Laser distance sensor
- Laser distance sensor
Specifications
- EMC
- EN 60947-5-2
- Display
- Power: 1 x LED, green
- Housing
- rectangular
- Remarks
- cULus - Class 2 source required
- Material
- operator interface: TPE; housing: PA; Front framework: stainless steel
- Connector
- 1 x M12; coding: A; Contacts: 4
- Range [m]
- < 20
- Protection
- IP 67
- Weight [g]
- 60.5
- Application
- Industrial applications
- MTTF [years]
- 760
- Lens material
- front lens:PMMA
- Pack quantity
- 1 pcs.
- Type of light
- red light
- Lens alignment
- Side sensing
- Dimensions [mm]
- 56 x 18.2 x 46.8
- IFM product code
- O5S200
- Protection class
- II
- Range adjustable
- no
- Wave length [nm]
- 624
- Function principle
- Through-beam sensor
- Operating voltage [V]
- 10...36 DC
- Transmitter / receiver
- transmitter
- Current consumption [mA]
- 20
- Ambient temperature [°C]
- -25...60
- Reverse polarity protection
- yes
- Max. light spot diameter [mm]
- 500
- Light spot dimensions refer to
- at maximum range
