O5E500

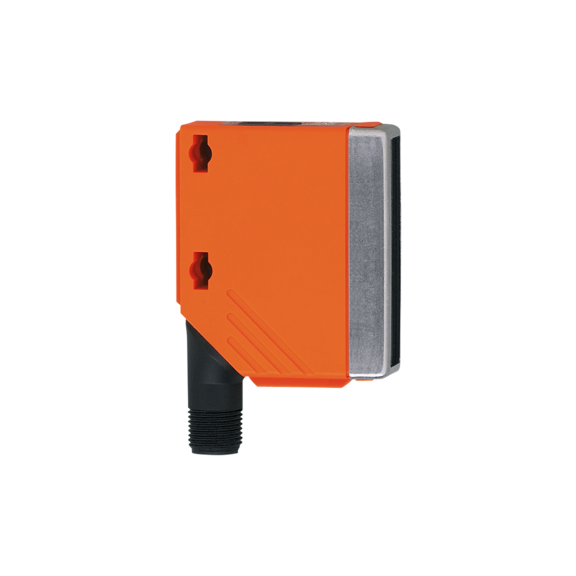

IFM O5E500 Through-beam sensor receiver. IFM lists these product characteristics: Sensitivity adjustable via teach buttons, Robust housing for use in harsh industrial environments, Programmable light-on/dark-on mode, Very long range, With connector that can be rotated by 270°.
Details
- Brand: IFM
- Part number: O5E500
- Series: O5
- Category: Photoelectric sensors
Related IFM parts
- Laser distance sensor
- Through-beam laser sensor receiver
- Through-beam laser sensor transmitter
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Color sensor
- Laser distance sensor
- Laser distance sensor
- Laser distance sensor
- Laser distance sensor
- Laser distance sensor
- Laser distance sensor
Specifications
- EMC
- EN 60947-5-2
- Display
- Switching status: 1 x LED, yellow
- Housing
- rectangular
- Material
- housing: PA; Front framework: stainless steel; operator interface: TPU (urethane)
- Connector
- 1 x M12; coding: A; Contacts: 4
- Range [m]
- < 25
- Protection
- IP 67
- Weight [g]
- 67.5
- Application
- Industrial applications
- MTTF [years]
- 801
- Lens material
- front lens:PMMA
- Pack quantity
- 1 pcs.
- Type of light
- red light
- Lens alignment
- Side sensing
- Teach function
- yes
- Dimensions [mm]
- 56 x 18.2 x 46.8
- Electronic lock
- yes
- Output function
- light-on/dark-on mode; (programmable)
- IFM product code
- O5E500
- Protection class
- II
- Range adjustable
- yes
- Wave length [nm]
- 624
- Electrical design
- PNP
- Function principle
- Through-beam sensor
- Overload protection
- yes
- Operating voltage [V]
- 10...36 DC
- Transmitter / receiver
- receiver
- Current consumption [mA]
- 11
- Short-circuit protection
- yes
- Ambient temperature [°C]
- -25...60
- Reverse polarity protection
- yes
- Switching frequency DC [Hz]
- 1000
- Type of short-circuit protection
- yes (non-latching)
- Max. voltage drop switching output DC [V]
- 2.5
- Permanent current rating of switching output DC [mA]
- 200
