O5E700

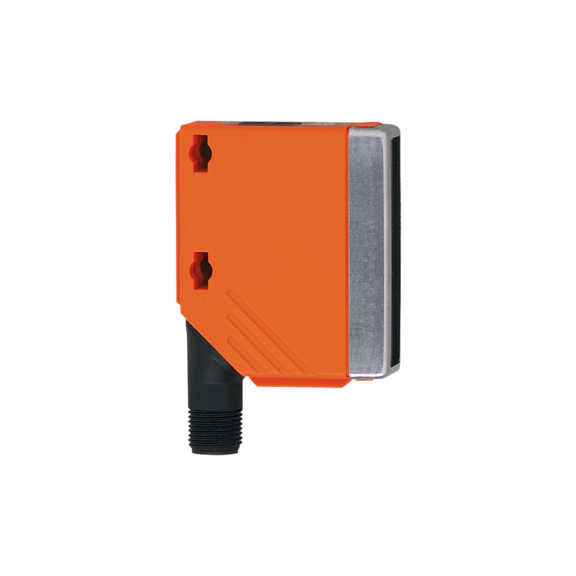

IFM O5E700 — Through-beam laser sensor receiver

IFM O5E700 Through-beam laser sensor receiver. IFM lists these product characteristics: Very long range, Precise detection of small parts, Visible red light for simple alignment, Robust housing for use in harsh industrial environments, With connector that can be rotated by 270°.

Details

Related IFM parts

Request a quote for O5E700

Specifications

EMC
EN 60947-5-2
Display
Switching status: 1 x LED, yellow
Housing
rectangular
Remarks
cULus - Class 2 source required
Material
housing: PA; Front framework: stainless steel; operator interface: TPU (urethane)
Connector
1 x M12; coding: A; Contacts: 4
Range [m]
< 60
Protection
IP 67
Weight [g]
67.5
Application
Industrial applications
MTTF [years]
788
Lens material
front lens:PMMA
Pack quantity
1 pcs.
Type of light
red light
Lens alignment
Side sensing
Teach function
yes
Dimensions [mm]
56 x 18.2 x 46.8
Electronic lock
yes
Output function
light-on/dark-on mode; (programmable)
IFM product code
O5E700
Protection class
II
Range adjustable
yes
Wave length [nm]
655
Electrical design
PNP
Function principle
Through-beam sensor
Overload protection
yes
Operating voltage [V]
10...36 DC
Transmitter / receiver
receiver
Current consumption [mA]
11
Short-circuit protection
yes
Ambient temperature [°C]
-10...60
Reverse polarity protection
yes
Switching frequency DC [Hz]
1000
Type of short-circuit protection
yes (non-latching)
Max. voltage drop switching output DC [V]
2.5
Diameter of the smallest detectable object [mm]
3; (60 m)
Permanent current rating of switching output DC [mA]
200
