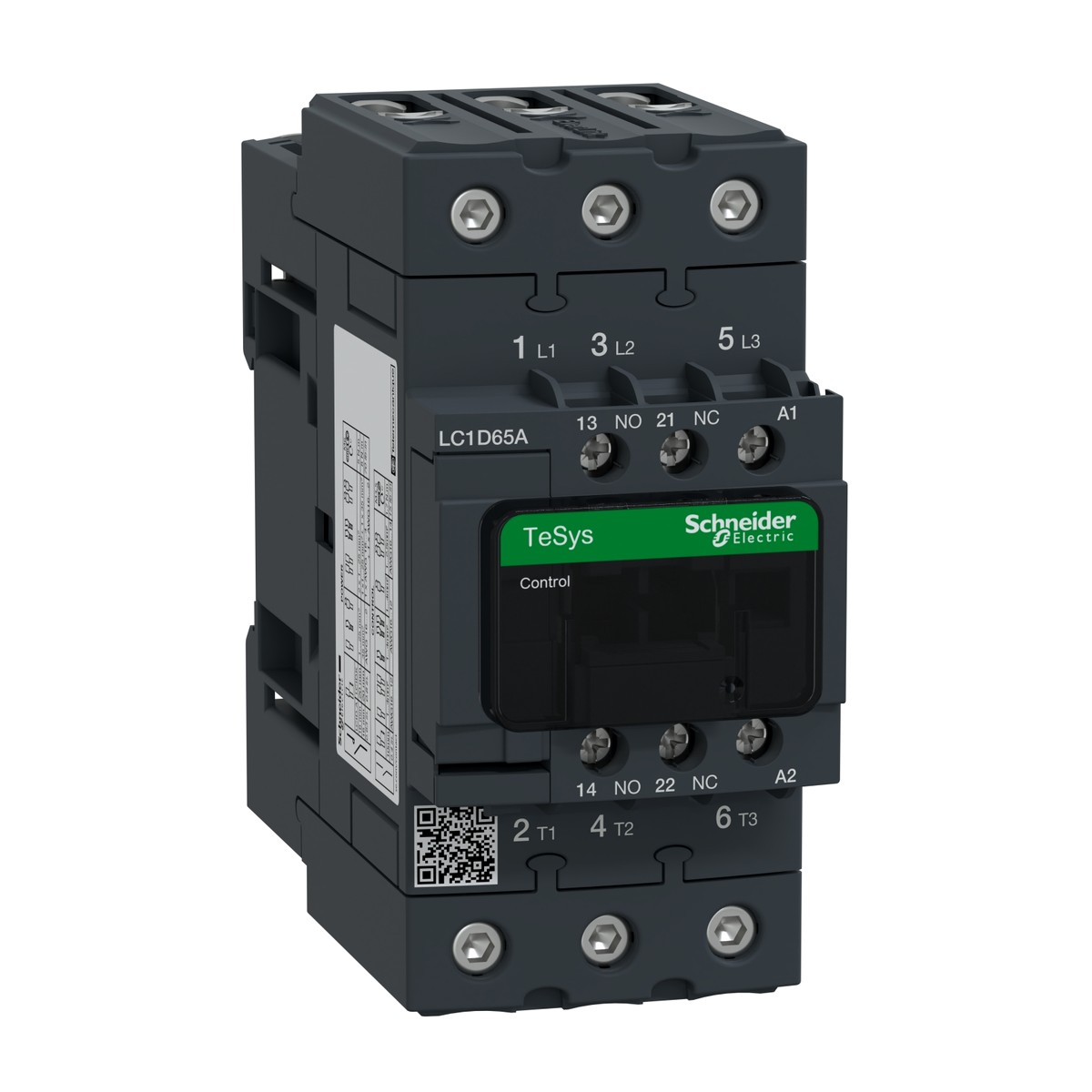

LC1D65AV7
Schneider Electric LC1D65AV7 TeSys Deca contactor 65 A AC-3 3P with 400 V AC 50/60 Hz coil. The Schneider Electric TeSys Deca LC1D65AV7 contactor is a robust 3-pole IEC power contactor engineered for reliable motor control and load switching in industrial panels. This essential component features three normally open (3 NO) power poles and is rated for 65 Amperes (AC-3) at <= 440 V AC, making it suitable for switching motors up to 30 kW at 380/400 V AC 50/60 Hz. Its versatile utilisation categories, including AC-1, AC-3, AC-3e, and AC-4, ensure broad application compatibility. The LC1D65AV7 is equipped with a 400 V AC 50/60 Hz control circuit coil, ideal for direct integration into electrical systems prevalent across Egypt and the Gulf region. Installation is straightforward thanks to secure screw clamp terminals for both control and power circuits, accommodating cables up to 35 mm². With an IP20 front face protection and high mechanical/electrical durability, this Schneider Electric contactor offers consistent performance in demanding environments. It is widely used in critical sectors such as cement production, oil and gas operations, water treatment plants, food and beverage processing, textile manufacturing, and building services.
Details
- Brand: Schneider Electric
- Part number: LC1D65AV7
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D80B7 contactor 80A AC-3 3P with 24V AC 50/60Hz coil
- TeSys Deca LC1D80BD contactor 80A AC-3/AC-3e 3P with 24V DC coil
- TeSys Deca LC1D80BW contactor 80A AC-3 3P with 24V DC wide voltage range coil
- TeSys Deca LC1D80E7 contactor 80 A AC-3/AC-3e 3P with 48 V AC 50/60 Hz coil
- TeSys Deca LC1D80ED contactor 80A AC-3 3P with 48V DC coil
- TeSys Deca LC1D80F7 contactor 80 A AC-3 3P with 110 V AC 50/60Hz coil
- TeSys Deca LC1D80FD contactor 80A AC-3 3P with 110V DC coil
- TeSys Deca LC1D80FE7 contactor 80 A AC-3/AC-3e 3P with 115V AC 50/60Hz coil
- TeSys Deca LC1D80M7 contactor 80 A AC-3 3P with 220 V AC coil
- Schneider Electric LC1D80MD — TeSys Deca LC1D Contactor 80A AC-3 3P with 220V DC Coil
- TeSys Deca LC1D80N7 contactor 80A AC-3 3P with 415V AC 50/60Hz coil
- TeSys Deca LC1D80P7 contactor 80A AC-3/AC-3e 3P with 230V AC coil
Specifications
- Net weight
- 0.86 Kg
- Device short name
- LC1D
- Poles description
- 3P
- Utilisation category
- AC-3, AC-3e, AC-1, AC-4
- Electrical durability
- 1.45 Mcycles 65 A AC-3 at Ue <= 440 V
- Mechanical durability
- 6 Mcycles
- Motor power kW (AC-3)
- 30 KW at 380/400 V AC 50/60 Hz
- Product certifications
- CCC, UL, CB Scheme, CSA, CE, UKCA
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC1D65AV7
- Pole contact composition
- 3 NO
- [Uc] control circuit voltage
- 400 V AC 50/60 Hz
- [Ie] rated operational current
- 65 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- [Ue] rated operational voltage
- Power circuit: <= 690 V AC 25...400 Hz
- Tightening torque (Power circuit)
- 8 N.m - on EverLink BTR screw connectors - cable 25…35 mm² hexagonal screw h
- Connections - terminals (Power circuit)
- screw clamp terminals 1 1…35 mm² - cable stiffness: flexible without cable end
- Permissible ambient air temperature around the device
- -40…60 °C
