GV3P40

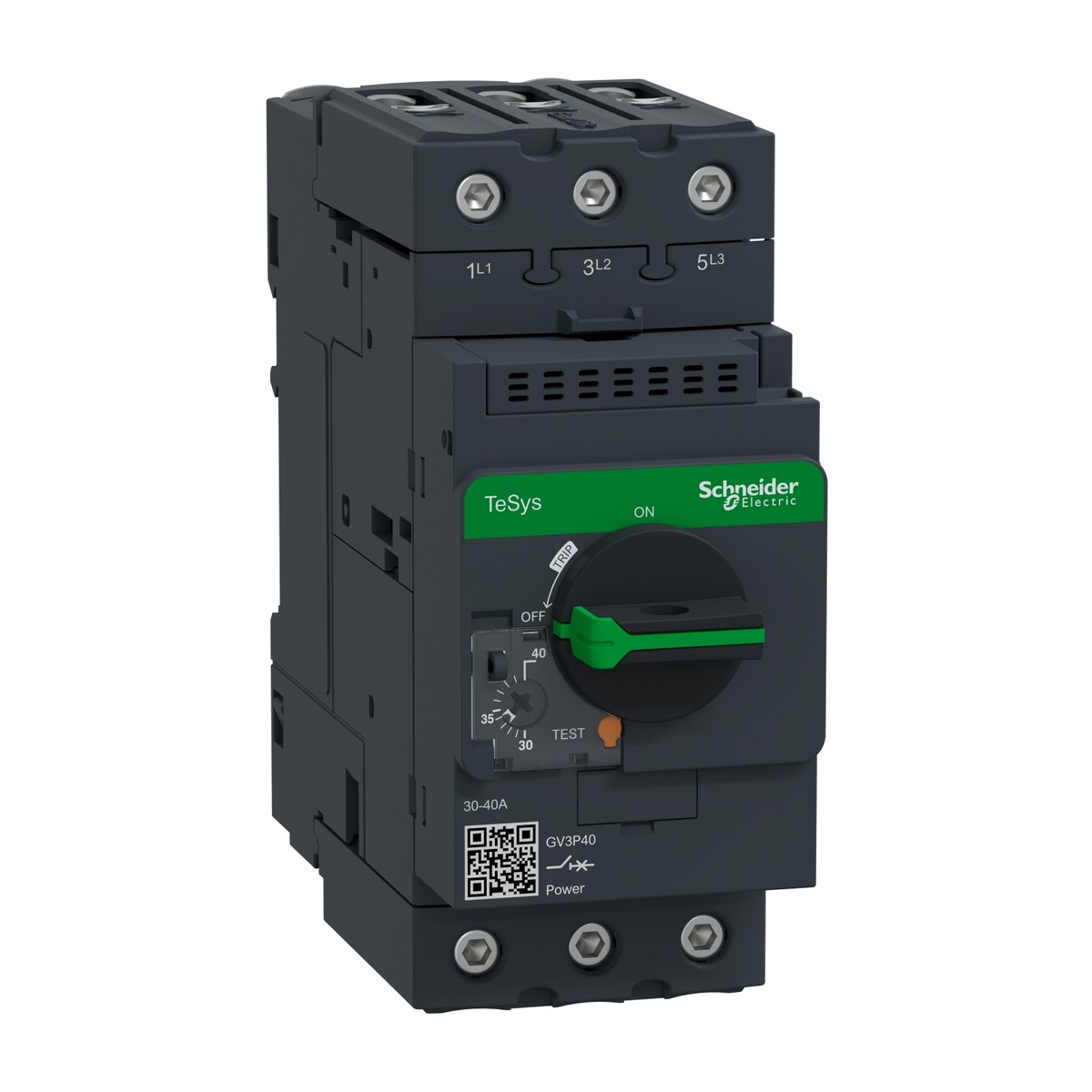

Schneider Electric GV3P40 TeSys motor protection circuit breaker 3P 30-40 A rotary handle. The Schneider Electric GV3P40 is a TeSys GV3 magneto-thermal motor protection circuit breaker with a 30 to 40 A adjustable thermal range, 40 A rated current and a magnetic trip at 560 A. GV3P40 extends TeSys motor protection above the GV2 frame, handling motors up to 18.5 kW at 400/415 V 50 Hz, 22 kW at 500 V and 37 kW at 690 V. It is a three-pole rotary-handle device rated 690 V AC with 6 kV impulse withstand, delivering 50 kA Icu at 400/415 V with 100 % Ics and 100 kA Icu at 230/240 V, and it is suitable for isolation to IEC 60947-1 with phase-failure sensitivity. The 55 x 132 x 136 mm body weighs 0.96 kg, clips to 35 mm DIN rail, dissipates 8 W per pole and is rated for 50,000 mechanical cycles with 5 N.m terminal torque. Typical GV3P40 duties in Egypt and the GCC include raw water and slurry pumps, crusher and mill auxiliaries, compressors and large fans in cement, water and wastewater, oil and gas and food plants.
Details
- Brand: Schneider Electric
- Part number: GV3P40
- Series: TeSys GV3
- Category: Motor Protection Circuit Breaker
Related Schneider Electric parts
- Schneider Electric GV2ME16 — TeSys GV2-Circuit breaker-thermal-magnetic
- TeSys Deca GV2ME08 Motor Circuit Breaker 3P 2.5-4A
- Schneider Electric GV2ME10 — TeSys GV2-Circuit breaker-thermal-magnetic - 4...6.3 A - screw clamp terminals
- TeSys GV2ME14 motor protection circuit breaker 3P 6-10 A
- TeSys GV2ME20 motor protection circuit breaker 3P 13-18 A
- TeSys GV2ME21 motor protection circuit breaker 3P 17-23 A
- TeSys GV2ME22 motor protection circuit breaker 3P 20-25 A
- TeSys GV2P16 motor protection circuit breaker 3P 9-14 A rotary handle
- TeSys GV2MC02 IP55 surface-mounting enclosure for TeSys GV2ME motor circuit breakers
- TeSys F LC1F115 contactor body 3P 3NO 115 A AC-3 without coil
- TeSys F LC1F185 contactor body 3P 3NO 185 A AC-3 without coil
- TeSys Deca LC1D09B7 contactor 9 A AC-3 3P with 24 V AC 50/60 Hz coil
Specifications
- Range
- TeSys Deca
- Standards
- EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
- Fixing mode
- 35 mm symmetrical DIN rail
- Control type
- Rotary handle
- Product name
- TeSys GV3
- Motor power kW
- 18.5 kW at 400/415 V AC 50/60 Hz; 22 kW at 500 V AC 50/60 Hz; 37 kW at 690 V AC 50/60 Hz
- Product weight
- 0.96 kg
- Breaking capacity
- 100 kA Icu at 230/240 V AC; 50 kA Icu at 400/415 V AC; 50 kA Icu at 440 V AC; 12 kA Icu at 500 V AC; 6 kA Icu at 690 V AC (IEC 60947-2)
- Device short name
- GV3P
- Poles description
- 3P
- Tightening torque
- 5 N.m - on screw clamp terminal
- [In] rated current
- 40 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 50000 cycles for AC-3 at 415 V In
- Mechanical durability
- 50000 cycles
- Dimensions (W x H x D)
- 55 mm x 132 mm x 136 mm
- IP degree of protection
- IP20
- Manufacturer part number
- GV3P40
- Magnetic tripping current
- 560 A
- Phase failure sensitivity
- Yes conforming to IEC 60947-4-1
- Suitability for isolation
- Yes conforming to IEC 60947-1
- Power dissipation per pole
- 8 W
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz conforming to IEC 60947-2
- Thermal protection adjustment range
- 30...40 A conforming to IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 6 kV conforming to IEC 60947-2
- [Ith] conventional free air thermal current
- 40 A conforming to IEC 60947-2
- [Ics] rated service short-circuit breaking capacity
- 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
