GV2ME22

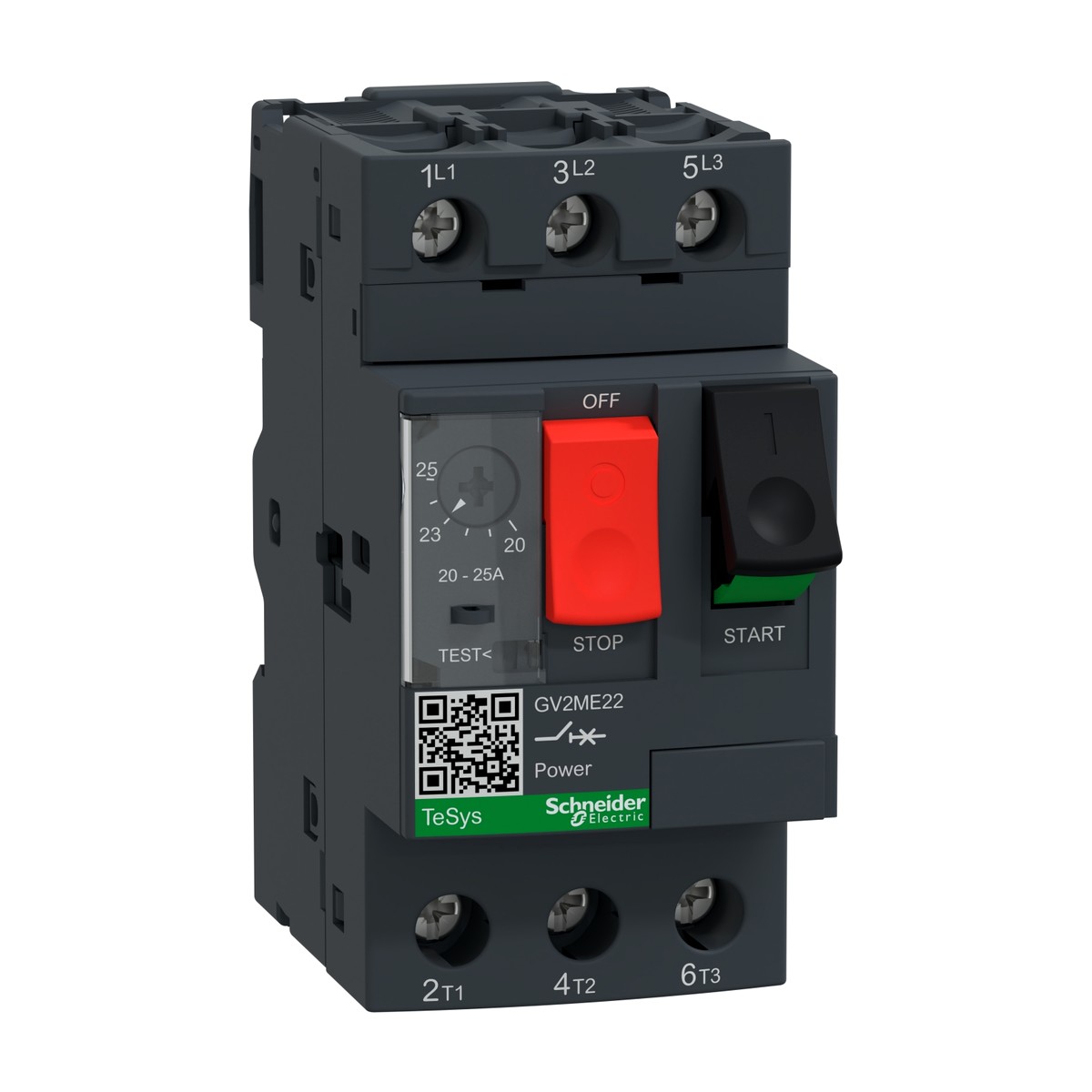

Schneider Electric GV2ME22 TeSys motor protection circuit breaker 3P 20-25 A. The Schneider Electric GV2ME22 is a TeSys GV2 magneto-thermal motor protection circuit breaker with a 20 to 25 A thermal adjustment range, 25 A rated current and a magnetic trip at 388.3 A. As the highest rating in the GV2ME frame, GV2ME22 delivers overload, short-circuit and phase-failure protection plus isolation to IEC 60947-1 in a three-pole DIN-rail device 45 mm wide and 0.26 kg. It is rated 690 V AC with 6 kV impulse withstand, giving 15 kA Icu at 400/415 V and 50 kA Icu at 230/240 V, with IP20 enclosure protection and 2.5 W dissipation per pole. At 400/415 V 50 Hz the GV2ME22 protects motors to 11 kW, matching raw water and slurry pumps, air compressors, bucket elevators, crusher auxiliaries and large fans in Egyptian and GCC cement, water and wastewater, oil and gas, food and beverage and textile plants.
Details
- Brand: Schneider Electric
- Part number: GV2ME22
- Series: TeSys GV2
- Category: Motor Protection Circuit Breaker
Related Schneider Electric parts
- TeSys GV2P16 motor protection circuit breaker 3P 9-14 A rotary handle
- TeSys GV2MC02 IP55 surface-mounting enclosure for TeSys GV2ME motor circuit breakers
- TeSys Deca GV2P02 motor circuit breaker 3P 0.16-0.25A thermal magnetic
- Schneider Electric GV2ME16 — TeSys GV2-Circuit breaker-thermal-magnetic
- Schneider Electric GV2ME10 — TeSys GV2-Circuit breaker-thermal-magnetic - 4...6.3 A - screw clamp terminals
- TeSys GV2ME14 motor protection circuit breaker 3P 6-10 A
- TeSys GV2ME20 motor protection circuit breaker 3P 13-18 A
- TeSys GV2ME21 motor protection circuit breaker 3P 17-23 A
- TeSys GV3P40 motor protection circuit breaker 3P 30-40 A rotary handle
- TeSys Deca GV2ME08 Motor Circuit Breaker 3P 2.5-4A
- TeSys F LC1F115 contactor body 3P 3NO 115 A AC-3 without coil
- TeSys F LC1F185 contactor body 3P 3NO 185 A AC-3 without coil
Specifications
- Range
- TeSys Deca
- Standards
- EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
- Fixing mode
- 35 mm symmetrical DIN rail: clipped; panel: screwed (with adaptor plate)
- Control type
- Push-button
- Product name
- TeSys GV2
- Motor power kW
- 11 kW at 400/415 V AC 50/60 Hz; 15 kW at 500 V AC 50/60 Hz
- Product weight
- 0.26 kg
- Breaking capacity
- 50 kA Icu at 230/240 V AC; 15 kA Icu at 400/415 V AC; 6 kA Icu at 440 V AC; 4 kA Icu at 500 V AC; 3 kA Icu at 690 V AC (IEC 60947-2)
- Device short name
- GV2ME
- Poles description
- 3P
- Tightening torque
- 1.7 N.m - on screw clamp terminal
- [In] rated current
- 25 A
- Trip unit technology
- Thermal-magnetic
- Mechanical durability
- 100000 cycles
- Dimensions (W x H x D)
- 45 mm x 89 mm x 78.5 mm
- Connections - terminals
- Power circuit: screw clamp terminal, 2 cables 1...6 mm2 solid
- IK degree of protection
- IK04
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- GV2ME22
- Magnetic tripping current
- 388.3 A
- Phase failure sensitivity
- Yes conforming to IEC 60947-4-1
- Suitability for isolation
- Yes conforming to IEC 60947-1
- Power dissipation per pole
- 2.5 W
- [Ui] rated insulation voltage
- 690 V AC 50/60 Hz
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz conforming to IEC 60947-2
- Thermal protection adjustment range
- 20...25 A conforming to IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 6 kV conforming to IEC 60947-2
- [Ith] conventional free air thermal current
- 25 A
- [Ics] rated service short-circuit breaking capacity
- 40 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
