GV2P16

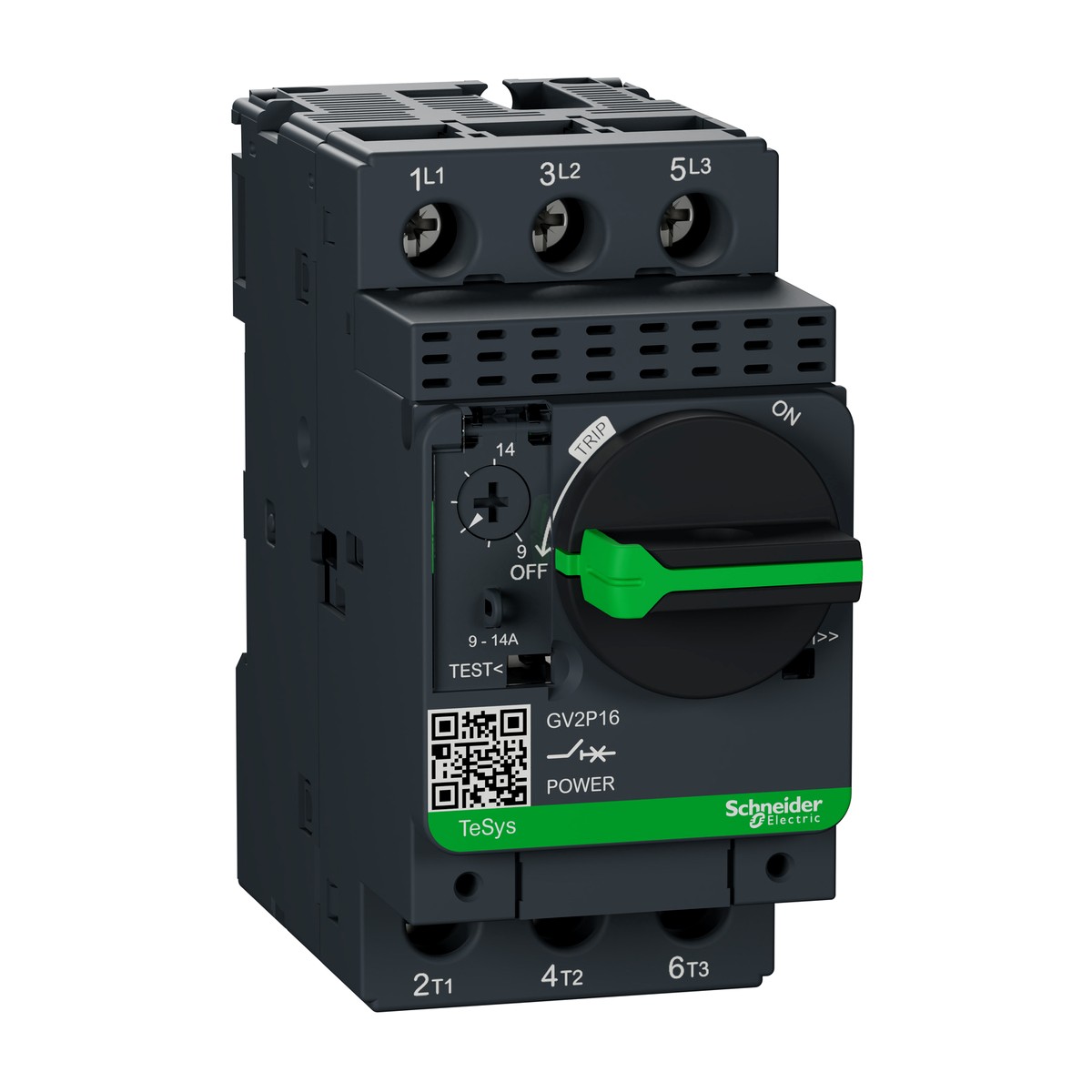

Schneider Electric GV2P16 TeSys motor protection circuit breaker 3P 9-14 A rotary handle. The Schneider Electric GV2P16 is a TeSys GV2 thermal-magnetic motor protection circuit breaker with a 9 to 14 A adjustable thermal range, 14 A rated current and a magnetic trip at 253.4 A. Unlike the push-button GV2ME versions, GV2P16 uses a rotary handle, which allows a door-coupled operating mechanism and lockable off position for safe isolation during maintenance. It is a three-pole device rated 690 V AC with 6 kV impulse withstand, offering 100 kA Icu at 400/415 V with 100 % Ics, IP20 protection and 100,000 mechanical cycles in a 45 x 89 x 97 mm DIN-rail body. At 400/415 V 50 Hz the GV2P16 protects motors to 5.5 kW, covering process and booster pumps, compressors, cooling and dust-extraction fans and conveyor drives used in Egyptian and GCC cement, water and wastewater, oil and gas, food and beverage and textile plants where lockable local isolation is specified.
Details
- Brand: Schneider Electric
- Part number: GV2P16
- Series: TeSys GV2
- Category: Motor Protection Circuit Breaker
Related Schneider Electric parts
- TeSys GV2MC02 IP55 surface-mounting enclosure for TeSys GV2ME motor circuit breakers
- TeSys Deca GV2P02 motor circuit breaker 3P 0.16-0.25A thermal magnetic
- Schneider Electric GV2ME16 — TeSys GV2-Circuit breaker-thermal-magnetic
- Schneider Electric GV2ME10 — TeSys GV2-Circuit breaker-thermal-magnetic - 4...6.3 A - screw clamp terminals
- TeSys GV2ME14 motor protection circuit breaker 3P 6-10 A
- TeSys GV2ME20 motor protection circuit breaker 3P 13-18 A
- TeSys GV2ME21 motor protection circuit breaker 3P 17-23 A
- TeSys GV2ME22 motor protection circuit breaker 3P 20-25 A
- TeSys GV3P40 motor protection circuit breaker 3P 30-40 A rotary handle
- TeSys Deca GV2ME08 Motor Circuit Breaker 3P 2.5-4A
- TeSys F LC1F115 contactor body 3P 3NO 115 A AC-3 without coil
- TeSys F LC1F185 contactor body 3P 3NO 185 A AC-3 without coil
Specifications
- Range
- TeSys Deca
- Standards
- EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
- Fixing mode
- 35 mm symmetrical DIN rail
- Control type
- Rotary handle
- Product name
- TeSys GV2
- Motor power kW
- 5.5 kW at 400/415 V AC 50/60 Hz; 7.5 kW at 500 V AC; 9 kW at 690 V AC; 11 kW at 690 V AC
- Breaking capacity
- 100 kA Icu at 230/240 V AC; 100 kA Icu at 400/415 V AC; 50 kA Icu at 440 V AC; 42 kA Icu at 500 V AC; 6 kA Icu at 690 V AC (IEC 60947-2)
- Device short name
- GV2P
- Poles description
- 3P
- Tightening torque
- 1.7 N.m - on screw clamp terminal
- [In] rated current
- 14 A
- Trip unit technology
- Thermal-magnetic
- Mechanical durability
- 100000 cycles
- Dimensions (W x H x D)
- 45 mm x 89 mm x 97 mm
- IP degree of protection
- IP20
- Manufacturer part number
- GV2P16
- Magnetic tripping current
- 253.4 A
- Power dissipation per pole
- 2.5 W
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz conforming to IEC 60947-2
- Thermal protection adjustment range
- 9...14 A conforming to IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 6 kV conforming to IEC 60947-2
- [Ics] rated service short-circuit breaking capacity
- 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
