GV2MC02

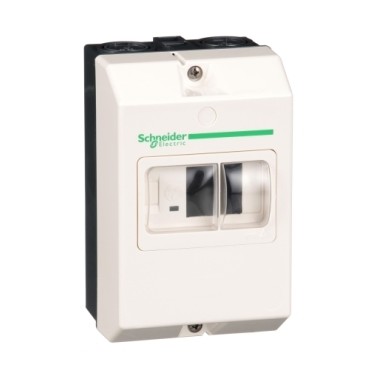

Schneider Electric GV2MC02 TeSys IP55 surface-mounting enclosure for TeSys GV2ME motor circuit breakers. The Schneider Electric GV2MC02 is an IP55 surface-mounting enclosure designed to house a TeSys GV2ME motor protection circuit breaker as a standalone local starter or isolator. GV2MC02 measures 147 mm high, 93 mm wide and 84 mm deep and weighs 0.3 kg, and it accepts an auxiliary contact block mounted on the left or right side of the breaker. The IP55 rating means the assembly is protected against dust ingress and water jets, which is why GV2MC02 is used for field-mounted motor protection outside the main MCC: irrigation and booster pump sets, dosing skids, wash-down areas in food and beverage plants, cooling tower and dust-extraction fans in cement works, and outdoor pump houses in Egyptian and GCC water and wastewater schemes. Ordering the GV2ME breaker together with the GV2MC02 enclosure gives a complete, ready-to-mount protected starter without fabricating a custom box.
Details
- Brand: Schneider Electric
- Part number: GV2MC02
- Series: TeSys GV2
- Category: Motor Protection Circuit Breaker Enclosure
Related Schneider Electric parts
- TeSys Deca GV2P02 motor circuit breaker 3P 0.16-0.25A thermal magnetic
- Schneider Electric GV2ME16 — TeSys GV2-Circuit breaker-thermal-magnetic
- Schneider Electric GV2ME10 — TeSys GV2-Circuit breaker-thermal-magnetic - 4...6.3 A - screw clamp terminals
- TeSys GV2ME14 motor protection circuit breaker 3P 6-10 A
- TeSys GV2ME20 motor protection circuit breaker 3P 13-18 A
- TeSys GV2ME21 motor protection circuit breaker 3P 17-23 A
- TeSys GV2ME22 motor protection circuit breaker 3P 20-25 A
- TeSys GV2P16 motor protection circuit breaker 3P 9-14 A rotary handle
- TeSys F LC1F115 contactor body 3P 3NO 115 A AC-3 without coil
- TeSys F LC1F185 contactor body 3P 3NO 185 A AC-3 without coil
- TeSys Deca LC1D09B7 contactor 9 A AC-3 3P with 24 V AC 50/60 Hz coil
- TeSys Deca LC1D09BD contactor 9 A AC-3 3P with 24 V DC coil
Specifications
- Depth
- 84 mm
- Range
- TeSys
- Width
- 93 mm
- Height
- 147 mm
- Enclosure type
- Surface mounting
- Product weight
- 0.3 kg
- Device short name
- GV2MC
- Product compatibility
- GV2ME
- Product certifications
- UKCA
- IP degree of protection
- IP55
- Manufacturer part number
- GV2MC02
- Product or component type
- Enclosure
- Auxiliary mounting location
- Left, Right
- Environmental characteristic
- Standard environment
