RXM2AB1E7

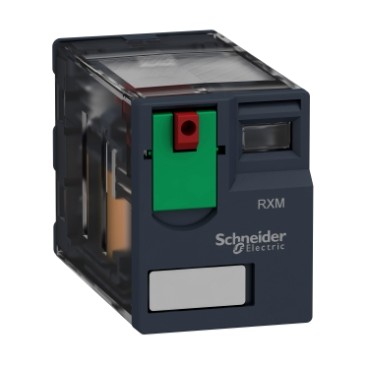

Schneider Electric RXM2AB1E7 Miniature plug-in interface relay 12 A 2 CO 48 V AC. The Schneider Electric RXM2AB1E7 is a compact and reliable miniature plug-in interface relay, designed for versatile control applications across various industrial sectors. This RXM series relay features a 48 V AC 50/60 Hz control circuit voltage and a 2 C/O contact configuration, providing robust switching capabilities up to 12 A at 250 V AC (NO conforming to IEC). With an IP40 degree of protection and a wide operating temperature range of -40 to 55 °C, it ensures dependable performance in demanding environments. Equipped with a lockable test button for ease of commissioning and troubleshooting, the RXM2AB1E7 boasts high electrical durability of 100,000 cycles for resistive loads and mechanical durability of 10 million cycles. Its compact dimensions and AgNi contacts make it an ideal choice for control panels in industries such as oil and gas, water treatment, cement, and food and beverage in Egypt and the Gulf. Certified by UL, CE, CSA, and GOST, this complete product from Schneider Electric offers proven reliability.
Details
- Brand: Schneider Electric
- Part number: RXM2AB1E7
- Series: RXM series
- Category: Plug-in relay
Related Schneider Electric parts
- Schneider Electric RXM2AB1ED — Miniature plug-in interface relay, 12A, 2 C/O, 48V DC, lockable test button
- Schneider Electric RXM2AB1F7 — Miniature Plug-in Relay, 12 A, 2 C/O, 120 V AC coil
- Schneider Electric RXM2AB1FD — Miniature plug-in interface relay, 12 A, 2 C/O, 110 V DC
- Schneider Electric RXM2AB1JD — Miniature plug-in relay 12 A 2 C/O 12 V DC
- Schneider Electric RXM2AB1P7 — Miniature plug-in relay, 12 A, 2 C/O, 230 V AC coil
- Schneider Electric RXM2AB2B7 — Miniature Plug-in Interface Relay, 12A, 2 C/O, 24V AC with LED and Test Button
- Schneider Electric RXM2AB2F7 — Miniature Plug-in Relay, 12 A, 2 C/O, LED, 120 V AC
- Schneider Electric RXM2AB2FD — Miniature plug-in relay 12A 2 C/O with LED lockable test button flat pin 110V DC
- Schneider Electric RXM2AB2JD — Miniature Plug-in Relay, 12A, 2 C/O, 12V DC, LED, Lockable Test Button
- Schneider Electric RXM2AB2P7 — Miniature plug-in relay 12A 2 CO LED 230V AC
- Schneider Electric RXM2AB3BD — Harmony RXM Miniature Plug-in Interface Relay 12A 2 C/O with LED 24V DC
- Schneider Electric RXM4AB1B7 — Miniature Plug-in Interface Relay, 6A, 4 C/O, 24V AC, Faston Type
Specifications
- Relay type
- Miniature relay
- Reset time
- 20 ms
- Control type
- Lockable test button
- Operating time
- 20 ms
- Product weight
- 37 g
- Contacts material
- AgNi
- Electrical durability
- 100000 cycles for resistive load
- Mechanical durability
- 10000000 cycles
- Product certifications
- UL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme
- IP degree of protection
- IP40 conforming to IEC 60529
- Manufacturer part number
- RXM2AB1E7
- Continuous output current
- 10 A
- Maximum switching voltage
- 250 V conforming to IEC
- Product or component type
- Plug-in relay
- [Uc] control circuit voltage
- 48 V AC 50/60 Hz
- Contacts type and composition
- 2 C/O
- [Ie] rated operational current
- 12 A at 250 V (AC) NO conforming to IEC
- Ambient air temperature for operation
- -40…55 °C
- Dielectric strength between coil and contact
- 2000 V AC with basic insulation
- [Ithe] conventional enclosed thermal current
- 12 A
