RXM2AB1F7

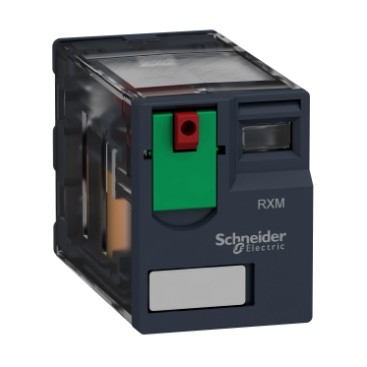

Schneider Electric RXM2AB1F7 Miniature Plug-in Relay, 12 A, 2 C/O, 120 V AC coil. The Schneider Electric RXM2AB1F7 is a high-performance miniature plug-in relay from the Harmony Electromechanical Relays range, specifically the RXM series. Engineered for robust industrial control applications, this versatile relay features a 2 C/O (changeover) contact configuration, making it suitable for a wide array of switching tasks. It operates with a 120 V AC 50/60 Hz control circuit voltage and boasts a conventional enclosed thermal current of 12 A. The RXM2AB1F7 is designed for reliable operation with a load current of 12 A at 250 V AC and 12 A at 28 V DC. Its mechanical durability is an impressive 10,000,000 cycles, while electrical durability for resistive loads reaches 100,000 cycles. Equipped with a lockable test button for ease of commissioning and maintenance, and featuring AgNi contacts for excellent conductivity and longevity, this relay provides dependable performance. With an IP40 degree of protection and an operating temperature range of -40 to 55 °C, the RXM2AB1F7 is well-suited for diverse industrial environments across Egypt and the Gulf, including critical infrastructure such as oil and gas, water treatment, cement production, food and beverage, and building services. Its compact design and reliable functionality make it an ideal choice for panel wiring solutions.
Details
- Brand: Schneider Electric
- Part number: RXM2AB1F7
- Series: RXM series
- Category: Miniature Relay
Related Schneider Electric parts
- Schneider Electric RXM2AB1FD — Miniature plug-in interface relay, 12 A, 2 C/O, 110 V DC
- Schneider Electric RXM2AB1JD — Miniature plug-in relay 12 A 2 C/O 12 V DC
- Schneider Electric RXM2AB1P7 — Miniature plug-in relay, 12 A, 2 C/O, 230 V AC coil
- Schneider Electric RXM2AB2B7 — Miniature Plug-in Interface Relay, 12A, 2 C/O, 24V AC with LED and Test Button
- Schneider Electric RXM2AB2F7 — Miniature Plug-in Relay, 12 A, 2 C/O, LED, 120 V AC
- Schneider Electric RXM2AB2FD — Miniature plug-in relay 12A 2 C/O with LED lockable test button flat pin 110V DC
- Schneider Electric RXM2AB2JD — Miniature Plug-in Relay, 12A, 2 C/O, 12V DC, LED, Lockable Test Button
- Schneider Electric RXM2AB2P7 — Miniature plug-in relay 12A 2 CO LED 230V AC
- Schneider Electric RXM2AB3BD — Harmony RXM Miniature Plug-in Interface Relay 12A 2 C/O with LED 24V DC
- Schneider Electric RXM4AB1B7 — Miniature Plug-in Interface Relay, 6A, 4 C/O, 24V AC, Faston Type
- Schneider Electric RXM4AB1E7 — Miniature plug-in relay 6A 4CO 48V AC control
- Schneider Electric RXM4AB1ED — Miniature Plug-in Relay 6A 4CO without LED 48V DC with Lockable Test Button
Specifications
- Relay type
- Miniature relay
- status LED
- Without
- Control type
- Lockable test button
- Load current
- 12 A at 250 V AC, 12 A at 28 V DC
- Product weight
- 0.037 kg
- Contacts material
- AgNi
- Electrical durability
- 100000 cycles for resistive load
- Mechanical durability
- 10000000 cycles
- IP degree of protection
- IP40 conforming to IEC 60529
- Manufacturer part number
- RXM2AB1F7
- Product or component type
- Plug-in relay
- [Uc] control circuit voltage
- 120 V AC 50/60 Hz
- Contacts type and composition
- 2 C/O
- Average coil consumption in VA
- 1.2 at 60 Hz
- Ambient air temperature for operation
- -40…55 °C
- [Ithe] conventional enclosed thermal current
- 12 A
