RXM2AB2P7

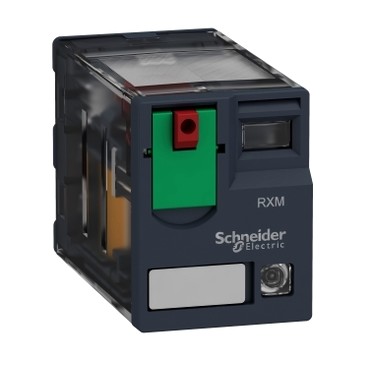

Schneider Electric RXM2AB2P7 Miniature plug-in relay 12A 2 CO LED 230V AC. The Schneider Electric RXM2AB2P7 is a robust miniature plug-in interface relay, engineered for reliable control circuit applications across diverse industrial environments. As part of the Harmony Electromechanical Relays range, this RXM series component features a 2 C/O (changeover) contact configuration with a conventional enclosed thermal current of 12 A, making it suitable for a wide array of switching tasks. Operated by a 230 V AC 50/60 Hz control circuit voltage, it perfectly aligns with the standard electrical infrastructure in Egypt and the Gulf. Enhanced with a status LED and a lockable test button, the RXM2AB2P7 offers clear operational feedback and easy local testing. Its durable design, with AgNi contacts and an IP40 protection rating, ensures consistent performance in demanding settings like cement production, oil and gas facilities, water treatment plants, and food and beverage processing. This versatile relay is also well-suited for textile manufacturing and building services.
Details
- Brand: Schneider Electric
- Part number: RXM2AB2P7
- Series: RXM series
- Category: Plug-in Relay
Related Schneider Electric parts
- Schneider Electric RXM2AB3BD — Harmony RXM Miniature Plug-in Interface Relay 12A 2 C/O with LED 24V DC
- Schneider Electric RXM4AB1B7 — Miniature Plug-in Interface Relay, 6A, 4 C/O, 24V AC, Faston Type
- Schneider Electric RXM4AB1E7 — Miniature plug-in relay 6A 4CO 48V AC control
- Schneider Electric RXM4AB1ED — Miniature Plug-in Relay 6A 4CO without LED 48V DC with Lockable Test Button
- Schneider Electric RXM4AB1F7 — Miniature plug-in interface relay, 6A, 4CO, without LED, lockable test button, flat pins, 120V AC
- Schneider Electric RXM4AB1FD — Miniature plug-in interface relay 6A 4CO 110V DC
- Schneider Electric RXM4AB1JD — Miniature Plug-in Relay 6A 4CO 12V DC
- Schneider Electric RXM4AB1P7 — Miniature plug-in interface relay 6A 4CO 230V AC with lockable test button
- Schneider Electric RXM4AB2B7 — RXM Miniature Plug-in Interface Relay, 4 C/O, 24V AC
- Schneider Electric RXM4AB2BD — Miniature Plug-in Interface Relay with Socket, 4 C/O, 24V DC Coil, 6A Thermal Current
- Schneider Electric RXM4AB2E7 — Miniature plug-in relay, 6A, 4 C/O, LED, lockable test button, flat pin, 48V AC
- Schneider Electric RXM4AB2ED — Miniature plug-in interface relay 6A 4CO LED lockable test button flat pin 48V DC
Specifications
- Standards
- IEC 61810-1, UL 508, CSA C22.2 No 14
- Relay type
- Miniature relay
- status LED
- With
- Control type
- Lockable test button
- Operating rate
- <= 1200 cycles/hour under load
- Operating time
- 20 ms
- Contacts material
- AgNi
- Electrical durability
- 100000 cycles for resistive load
- Mechanical durability
- 10000000 cycles
- Product certifications
- UL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme
- IP degree of protection
- IP40 conforming to IEC 60529
- Manufacturer part number
- RXM2AB2P7
- Continuous output current
- 10 A
- Maximum switching voltage
- 250 V conforming to IEC
- Product or component type
- Plug-in relay
- Maximum switching capacity
- 3000 VA/336 W
- [Uc] control circuit voltage
- 230 V AC 50/60 Hz
- Contacts type and composition
- 2 C/O
- [Ui] rated insulation voltage
- 250 V conforming to IEC
- Ambient air temperature for operation
- -40…55 °C
- [Uimp] rated impulse withstand voltage
- 4 kV during 1.2/50 µs
- [Ithe] conventional enclosed thermal current
- 12 A
