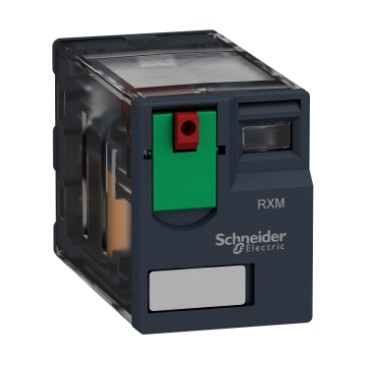

RXM2AB1P7
Schneider Electric RXM2AB1P7 Miniature plug-in relay, 12 A, 2 C/O, 230 V AC coil. The Schneider Electric RXM2AB1P7 is a high-performance miniature plug-in interface relay, designed for efficient and reliable control circuit applications. Part of the robust Harmony Electromechanical Relays RXM series, this compact relay features a 230 V AC 50/60 Hz control circuit voltage, making it perfectly suited for standard industrial power systems found across Egypt and the Gulf region. It boasts a 2 C/O (changeover) contact configuration with a conventional enclosed thermal current of 12 A and a continuous output current of 10 A, ensuring dependable switching for various loads. Equipped with a convenient lockable test button for easy commissioning and maintenance, the RXM2AB1P7 offers excellent durability with 10 million mechanical cycles and 100,000 electrical cycles for resistive loads. Its IP40 degree of protection and wide operating temperature range of -40 to 55 °C ensure reliable performance in diverse industrial environments such as water treatment plants, oil and gas facilities, food and beverage processing, and building services. Certified by UL, CE, CSA, and GOST, this Schneider Electric relay guarantees quality and compliance.
Details
- Brand: Schneider Electric
- Part number: RXM2AB1P7
- Series: RXM series
- Category: Relay
Related Schneider Electric parts
- Schneider Electric RXM2AB2B7 — Miniature Plug-in Interface Relay, 12A, 2 C/O, 24V AC with LED and Test Button
- Schneider Electric RXM2AB2F7 — Miniature Plug-in Relay, 12 A, 2 C/O, LED, 120 V AC
- Schneider Electric RXM2AB2FD — Miniature plug-in relay 12A 2 C/O with LED lockable test button flat pin 110V DC
- Schneider Electric RXM2AB2JD — Miniature Plug-in Relay, 12A, 2 C/O, 12V DC, LED, Lockable Test Button
- Schneider Electric RXM2AB2P7 — Miniature plug-in relay 12A 2 CO LED 230V AC
- Schneider Electric RXM2AB3BD — Harmony RXM Miniature Plug-in Interface Relay 12A 2 C/O with LED 24V DC
- Schneider Electric RXM4AB1B7 — Miniature Plug-in Interface Relay, 6A, 4 C/O, 24V AC, Faston Type
- Schneider Electric RXM4AB1E7 — Miniature plug-in relay 6A 4CO 48V AC control
- Schneider Electric RXM4AB1ED — Miniature Plug-in Relay 6A 4CO without LED 48V DC with Lockable Test Button
- Schneider Electric RXM4AB1F7 — Miniature plug-in interface relay, 6A, 4CO, without LED, lockable test button, flat pins, 120V AC
- Schneider Electric RXM4AB1FD — Miniature plug-in interface relay 6A 4CO 110V DC
- Schneider Electric RXM4AB1JD — Miniature Plug-in Relay 6A 4CO 12V DC
Specifications
- Standards
- IEC 61810-1, UL 508, CSA C22.2 No 14
- Relay type
- Miniature relay
- Control type
- Lockable test button
- Load current
- 12 A at 250 V AC, 12 A at 28 V DC
- Product weight
- 0.037 kg
- Electrical durability
- 100000 cycles for resistive load
- Mechanical durability
- 10000000 cycles
- Product certifications
- UL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme
- IP degree of protection
- IP40 conforming to IEC 60529
- Manufacturer part number
- RXM2AB1P7
- Continuous output current
- 10 A
- Maximum switching voltage
- 250 V conforming to IEC
- Product or component type
- Plug-in relay
- [Uc] control circuit voltage
- 230 V AC 50/60 Hz
- Contacts type and composition
- 2 C/O
- [Ui] rated insulation voltage
- 250 V conforming to IEC
- Average coil consumption in VA
- 1.2 VA at 60 Hz
- Ambient air temperature for operation
- -40…55 °C
- [Ithe] conventional enclosed thermal current
- 12 A
