RXM2AB2F7

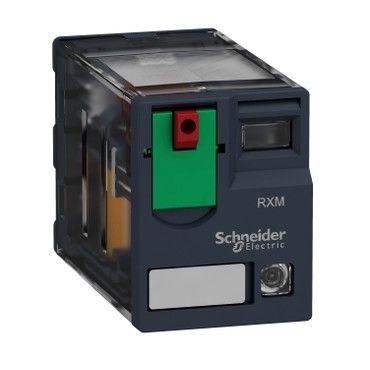

Schneider Electric RXM2AB2F7 Miniature Plug-in Relay, 12 A, 2 C/O, LED, 120 V AC. The Schneider Electric RXM2AB2F7 is a robust miniature plug-in interface relay designed for reliable signal transmission and control in a wide range of industrial applications. Part of the Harmony Electromechanical Relays range and RXM series, this compact device features 2 changeover (C/O) contacts, making it versatile for various switching requirements. Its 120 V AC control coil operates at both 50/60 Hz, complemented by a convenient status LED for clear operational indication and a lockable test button for manual control and troubleshooting. With a conventional enclosed thermal current of 12 A and a continuous output current of 10 A, it offers dependable performance. The relay boasts an impressive mechanical durability of 10,000,000 cycles and an electrical durability of 100,000 cycles for resistive loads. It is certified to multiple standards including UL, CE, and CSA, ensuring global compatibility and safety. The RXM2AB2F7 provides an IP40 degree of protection and operates effectively in temperatures from -40 to 55 °C. Ideal for industrial control panels, automation systems, and machinery across the Gulf and Egypt, serving sectors like oil and gas, water treatment, cement, and food & beverage. For more information or to request a quote for the Schneider Electric RXM2AB2F7, please contact us.
Details
- Brand: Schneider Electric
- Part number: RXM2AB2F7
- Series: RXM series
- Category: Relay
Related Schneider Electric parts
- Schneider Electric RXM2AB2FD — Miniature plug-in relay 12A 2 C/O with LED lockable test button flat pin 110V DC
- Schneider Electric RXM2AB2JD — Miniature Plug-in Relay, 12A, 2 C/O, 12V DC, LED, Lockable Test Button
- Schneider Electric RXM2AB2P7 — Miniature plug-in relay 12A 2 CO LED 230V AC
- Schneider Electric RXM2AB3BD — Harmony RXM Miniature Plug-in Interface Relay 12A 2 C/O with LED 24V DC
- Schneider Electric RXM4AB1B7 — Miniature Plug-in Interface Relay, 6A, 4 C/O, 24V AC, Faston Type
- Schneider Electric RXM4AB1E7 — Miniature plug-in relay 6A 4CO 48V AC control
- Schneider Electric RXM4AB1ED — Miniature Plug-in Relay 6A 4CO without LED 48V DC with Lockable Test Button
- Schneider Electric RXM4AB1F7 — Miniature plug-in interface relay, 6A, 4CO, without LED, lockable test button, flat pins, 120V AC
- Schneider Electric RXM4AB1FD — Miniature plug-in interface relay 6A 4CO 110V DC
- Schneider Electric RXM4AB1JD — Miniature Plug-in Relay 6A 4CO 12V DC
- Schneider Electric RXM4AB1P7 — Miniature plug-in interface relay 6A 4CO 230V AC with lockable test button
- Schneider Electric RXM4AB2B7 — RXM Miniature Plug-in Interface Relay, 4 C/O, 24V AC
Specifications
- Relay type
- Miniature relay
- status LED
- With
- Control type
- Lockable test button
- Electrical durability
- 100000 cycles for resistive load
- Mechanical durability
- 10000000 cycles
- Product certifications
- UL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme
- IP degree of protection
- IP40 conforming to IEC 60529
- Manufacturer part number
- RXM2AB2F7
- Continuous output current
- 10 A
- Maximum switching voltage
- 250 V conforming to IEC
- Product or component type
- Plug-in relay
- [Uc] control circuit voltage
- 120 V AC 50/60 Hz
- Contacts type and composition
- 2 C/O
- Average coil consumption in VA
- 1.2 at 60 Hz
- Rated operational voltage limits
- 96...132 V AC
- [Ie] rated operational current (AC)
- 12 A at 250 V (AC) NO conforming to IEC
- [Ie] rated operational current (DC)
- 12 A at 28 V (DC) NO conforming to IEC
- Ambient air temperature for operation
- -40…55 °C
- [Ithe] conventional enclosed thermal current
- 12 A
