RXM2AB1FD

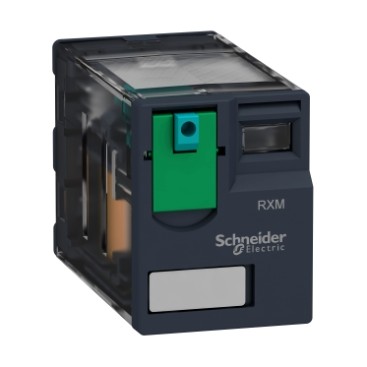

Schneider Electric RXM2AB1FD Miniature plug-in interface relay, 12 A, 2 C/O, 110 V DC. The Schneider Electric RXM2AB1FD is a miniature plug-in interface relay from the Harmony Electromechanical Relays RXM series, engineered for robust industrial control. This essential spare part features a 110 V DC control circuit voltage and a 12 A conventional enclosed thermal current. It includes 2 C/O (Changeover) contacts and a lockable test button, offering flexible switching and local diagnostics. The RXM2AB1FD ensures exceptional durability, with 10,000,000 mechanical cycles and 100,000 electrical cycles for resistive loads. An IP40 protection rating allows dependable operation from -40 to 55 °C. Ideal for control panels in Egypt and Gulf industries such as oil and gas, water treatment, cement, food and beverage, textiles, and building services, this Schneider Electric relay guarantees critical switching functions. Certified by UL, CE, and IEC, the RXM2AB1FD adheres to high quality and safety standards.
Details
- Brand: Schneider Electric
- Part number: RXM2AB1FD
- Series: RXM series
- Category: Relay
Related Schneider Electric parts
- Schneider Electric RXM2AB1JD — Miniature plug-in relay 12 A 2 C/O 12 V DC
- Schneider Electric RXM2AB1P7 — Miniature plug-in relay, 12 A, 2 C/O, 230 V AC coil
- Schneider Electric RXM2AB2B7 — Miniature Plug-in Interface Relay, 12A, 2 C/O, 24V AC with LED and Test Button
- Schneider Electric RXM2AB2F7 — Miniature Plug-in Relay, 12 A, 2 C/O, LED, 120 V AC
- Schneider Electric RXM2AB2FD — Miniature plug-in relay 12A 2 C/O with LED lockable test button flat pin 110V DC
- Schneider Electric RXM2AB2JD — Miniature Plug-in Relay, 12A, 2 C/O, 12V DC, LED, Lockable Test Button
- Schneider Electric RXM2AB2P7 — Miniature plug-in relay 12A 2 CO LED 230V AC
- Schneider Electric RXM2AB3BD — Harmony RXM Miniature Plug-in Interface Relay 12A 2 C/O with LED 24V DC
- Schneider Electric RXM4AB1B7 — Miniature Plug-in Interface Relay, 6A, 4 C/O, 24V AC, Faston Type
- Schneider Electric RXM4AB1E7 — Miniature plug-in relay 6A 4CO 48V AC control
- Schneider Electric RXM4AB1ED — Miniature Plug-in Relay 6A 4CO without LED 48V DC with Lockable Test Button
- Schneider Electric RXM4AB1F7 — Miniature plug-in interface relay, 6A, 4CO, without LED, lockable test button, flat pins, 120V AC
Specifications
- Net weight
- 0.037 kg
- Relay type
- Miniature relay
- Control type
- Lockable test button
- Load current
- 12 A at 250 V AC, 12 A at 28 V DC
- Operating time
- 20 ms
- Electrical durability
- 100000 cycles for resistive load
- Mechanical durability
- 10000000 cycles
- Product certifications
- UL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme
- IP degree of protection
- IP40 conforming to IEC 60529
- Average coil consumption
- 0.9 W
- Manufacturer part number
- RXM2AB1FD
- Maximum switching voltage
- 250 V conforming to IEC
- Maximum switching capacity
- 3000 VA/336 W
- [Uc] control circuit voltage
- 110 V DC
- Contacts type and composition
- 2 C/O
- Ambient air temperature for operation
- -40…55 °C
- [Ithe] conventional enclosed thermal current
- 12 A
