RXM2AB1JD

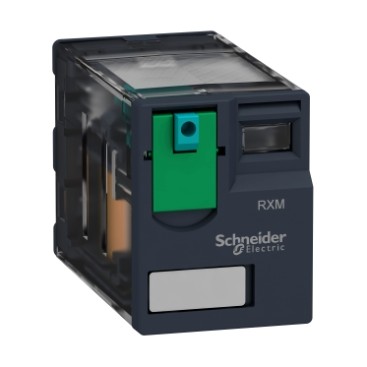

Schneider Electric RXM2AB1JD Miniature plug-in relay 12 A 2 C/O 12 V DC. The Schneider Electric RXM2AB1JD is a robust miniature plug-in interface relay from the Harmony Electromechanical Relays RXM series, meticulously engineered for reliable performance in diverse industrial control applications. This compact and efficient 12 A relay features a 2 C/O (double pole changeover) contact configuration, making it highly versatile for switching and control circuits. It operates with a 12 V DC control circuit voltage and includes a convenient lockable test button for manual operation and system diagnostics, enhancing operational flexibility. Designed without an integrated status LED, it prioritizes simplicity and focused functionality. With an impressive mechanical durability of 10 million cycles and an electrical durability of 100,000 cycles for resistive loads, the Schneider Electric RXM2AB1JD ensures long-term reliability. Its contacts are composed of AgNi, offering excellent conductivity and switching characteristics, capable of handling up to 12 A at 250 V AC and 12 A at 28 V DC. The relay maintains an IP40 degree of protection and operates effectively within an ambient temperature range of -40 to 55 °C, making it suitable for challenging environments found in Egypt and the Gulf region, such as control panels in water treatment plants, oil and gas facilities, and general building services. This dependable component is an ideal choice for automation systems requiring precise and durable signal interfacing.
Details
- Brand: Schneider Electric
- Part number: RXM2AB1JD
- Series: RXM series
- Category: Miniature Relay
Related Schneider Electric parts
- Schneider Electric RXM2AB1P7 — Miniature plug-in relay, 12 A, 2 C/O, 230 V AC coil
- Schneider Electric RXM2AB2B7 — Miniature Plug-in Interface Relay, 12A, 2 C/O, 24V AC with LED and Test Button
- Schneider Electric RXM2AB2F7 — Miniature Plug-in Relay, 12 A, 2 C/O, LED, 120 V AC
- Schneider Electric RXM2AB2FD — Miniature plug-in relay 12A 2 C/O with LED lockable test button flat pin 110V DC
- Schneider Electric RXM2AB2JD — Miniature Plug-in Relay, 12A, 2 C/O, 12V DC, LED, Lockable Test Button
- Schneider Electric RXM2AB2P7 — Miniature plug-in relay 12A 2 CO LED 230V AC
- Schneider Electric RXM2AB3BD — Harmony RXM Miniature Plug-in Interface Relay 12A 2 C/O with LED 24V DC
- Schneider Electric RXM4AB1B7 — Miniature Plug-in Interface Relay, 6A, 4 C/O, 24V AC, Faston Type
- Schneider Electric RXM4AB1E7 — Miniature plug-in relay 6A 4CO 48V AC control
- Schneider Electric RXM4AB1ED — Miniature Plug-in Relay 6A 4CO without LED 48V DC with Lockable Test Button
- Schneider Electric RXM4AB1F7 — Miniature plug-in interface relay, 6A, 4CO, without LED, lockable test button, flat pins, 120V AC
- Schneider Electric RXM4AB1FD — Miniature plug-in interface relay 6A 4CO 110V DC
Specifications
- Standards
- IEC 61810-1, UL 508, CSA C22.2 No 14
- Status LED
- Without
- Control type
- Lockable test button
- Product weight
- 0.037 kg
- Contacts material
- AgNi
- Load current (AC)
- 12 A at 250 V AC
- Load current (DC)
- 12 A at 28 V DC
- Electrical durability
- 100000 cycles for resistive load
- Mechanical durability
- 10000000 cycles
- Control circuit voltage
- 12 V DC
- IP degree of protection
- IP40 conforming to IEC 60529
- Average coil consumption
- 0.9 W
- Manufacturer part number
- RXM2AB1JD
- Rated insulation voltage
- 250 V conforming to IEC
- Continuous output current
- 10 A
- Maximum switching voltage
- 250 V conforming to IEC
- Contacts type and composition
- 2 C/O
- Ambient air temperature for operation
- -40…55 °C
- Conventional enclosed thermal current
- 12 A
