RE17RMEMU

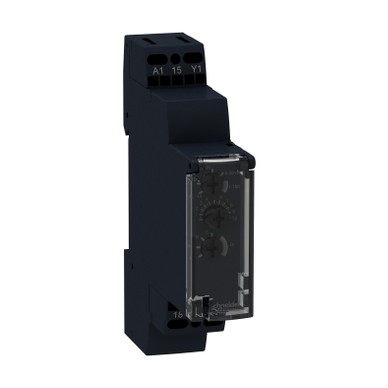

Schneider Electric RE17RMEMU Zelio Time multifunction time delay relay 8 functions 24...240 V AC/DC 1 C/O. The Schneider Electric RE17RMEMU is a Zelio Time modular timing relay just 17.5 mm wide that mounts on 35 mm DIN rail and covers eight time delay functions, including power on-delay, on-delay with pause and summation, single interval with control signal, interval, off-delay with control signal and symmetrical flashing. The RE17RMEMU is supplied from 24...240 V AC 50/60 Hz or 24 V DC and switches one C/O relay output rated 8 A with a maximum switching voltage of 250 V AC and 2000 VA breaking capacity. Timing ranges are selected on the front panel from 0.1...1 s up to 1...10 h, with repeat accuracy of +/- 0.5 % and setting accuracy of +/- 10 % of full scale to IEC 61812-1. Its wide multi-voltage supply makes it the standard sequencing, star-delta and delayed-start timer for panel builders serving water, cement, food and beverage and oil and gas plants in Egypt and the GCC.
Details
- Brand: Schneider Electric
- Part number: RE17RMEMU
- Series: Zelio Time RE17
- Category: Timing Relay
Related Schneider Electric parts
- Schneider Electric RE17RAMU — Modular Timing Relay, 8A, 1 C/O, On-delay, 24-240V AC/DC
- Modicon M221 TM221CE16R logic controller 16 I/O, 9 DI, 7 relay DO, Ethernet
- Modicon M221 TM221CE24R logic controller 24 I/O, 14 DI, 10 relay DO, Ethernet
- Modicon M221 TM221CE40R logic controller 40 I/O, 24 DI, 16 relay DO, Ethernet
- Modicon M241 TM241CE40R logic controller 40 I/O, relay and transistor outputs, Ethernet
- Modicon TM3 TM3DI16 discrete input module 16 inputs 24 V DC screw terminal
- Modicon TM3 TM3AM6 analog I/O module 4 inputs 2 outputs, voltage and current
- TeSys GV2ME14 motor protection circuit breaker 3P 6-10 A
- TeSys GV2ME20 motor protection circuit breaker 3P 13-18 A
- TeSys GV2ME21 motor protection circuit breaker 3P 17-23 A
- TeSys GV2ME22 motor protection circuit breaker 3P 20-25 A
- TeSys GV2P16 motor protection circuit breaker 3P 9-14 A rotary handle
Specifications
- Voltage range
- 0.85...1.1 Us
- Repeat accuracy
- +/- 0.5 % conforming to IEC 61812-1
- Time delay type
- Power on-delay, Interval, Off-delay, Symmetrical flashing (8 functions available)
- Mounting support
- 35 mm DIN rail conforming to IEC 60715
- Range of product
- Harmony Timer Relays
- Time delay range
- 0.1...1 s / 1...10 s / 6...60 s / 1...10 min / 6...60 min / 1...10 h
- Device short name
- RE17R
- breaking capacity
- 2000 VA
- Electrical durability
- 100000 cycles (8 A at 250 V AC maximum) for resistive load
- Mechanical durability
- 10000000 cycles
- Dimensions (H x W x D)
- 90 mm x 17.5 mm x 72 mm
- nominal output current
- 8 A
- IP degree of protection
- IP20 (terminal block), IP40 (housing), IP50 (front panel) conforming to IEC 60529
- Manufacturer part number
- RE17RMEMU
- Maximum switching voltage
- 250 V AC
- Product or component type
- Modular timing relay
- [Us] rated supply voltage
- 24...240 V AC 50/60 Hz, 24 V DC
- Contacts type and composition
- 1 C/O
- Setting accuracy of time delay
- +/- 10 % of full scale at 25 °C conforming to IEC 61812-1
- Ambient air temperature for operation
- -20...60 °C
