C125N350FM

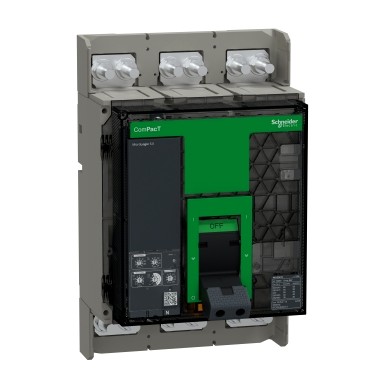

Schneider Electric C125N350FM Circuit breaker, ComPacT NS1250N. The operational current is 1250A. The operational voltage is 690VAC 50/60Hz. The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz. The circuit breaker can be manually operated with its toggle. The electronic MicroLogic 5.0 control unit has a 1250A rating. MicroLogic 5.0 control unit provides an overload protection (true rms and adjustable long time protection). MicroLogic 5.0 control unit provides adjustable short-circuit protections (rms short time and instantaneous protections). MicroLogic 5.0 control unit provides adjustable long time, short time and instantaneous protections (ANSI codes 49/51/50). The circuit breaker can be manually operated with ON, OFF or "push to trip" buttons. The circuit breaker is equipped with front connections terminals at top and bottom sides. The dimensions (without the toggle) are 327mm (Heigh) x 210mm (Width) x 147mm (Depth). It is compliant with IEC 60947-1 and IEC60947-2 international standards. ComPacT NS can be integrated within Schneider Electric EcoStruxure Power architecture. ComPacT NS new generation is part of Schneider Electric EcoStruxure Power architecture. This product is a 3 poles ComPacT NS1250N circuit breaker. This device is in fixed mounting mode and is manually operated.
Details
- Brand: Schneider Electric
- Part number: C125N350FM
- Series: ComPacT NS new generation
- Category: Circuit Breaker
Related Schneider Electric parts
- Schneider Electric C40F32D250 — ComPacT NSX400F Circuit Breaker with MicroLogic 2.3 Trip Unit 250A
- Schneider Electric A9N18365 — Miniature Circuit Breaker C120N 3P 80A C curve
- Schneider Electric LV563552 — EasyPact CVS630N Circuit Breaker
- Schneider Electric C16F4 — ComPacT NSX160F Basic Frame Circuit Breaker 160A 4P without trip unit
- Schneider Electric C40H32D400 — Circuit breaker, ComPacT NSX400H
- Schneider Electric C16H3TM160 — ComPacT NSX new generation Circuit breaker
- Schneider Electric C25H3TM250 — ComPacT NSX250H Circuit Breaker with TM-D Trip Unit 250A
- Schneider Electric C63N32D630 — Circuit breaker, ComPacT NSX630N, 50kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A
- Schneider Electric A9F74210 — Miniature Circuit Breaker iC60N 2P 10A C
- Schneider Electric A9F74225 — Acti9 iC60N Miniature Circuit Breaker 2P 25A C-Curve
- Schneider Electric A9F74220 — Acti9 iC60N Miniature Circuit-Breaker 2P 20A C-curve
- Schneider Electric EZC100F3020 — EasyPact EZC100F 3-Pole 20A Thermal-Magnetic Circuit Breaker
Request a quote for C125N350FM
Specifications
- Poles
- 3P
- Mounting mode
- Fixed
- Rated current
- 1250 A
- Product weight
- 14 kg
- Protection functions
- LSI
- Trip unit technology
- Electronic
- Dimensions (W x H x D)
- 210 x 327 x 147 mm
- Manufacturer part number
- C125N350FM
- Rated operational voltage
- 690 V AC
- Rated ultimate short-circuit breaking capacity (Icu)
- 50 kA at 380/415 V AC
