A9N18365

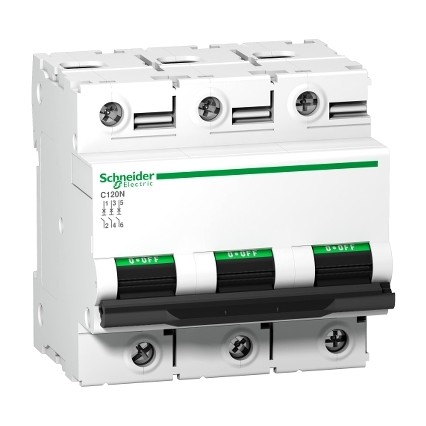

Schneider Electric A9N18365 Miniature Circuit Breaker C120N 3P 80A C curve. This Acti9 C120N is a low voltage multistandard miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 80A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard and 10000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. The presence of green strip guarantees contact open physically and allows work to be carried out safely on the downstream circuit. It has good overvoltage withstand capacity. The product is designed to offer a high industrial performance level It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is equal or below 375VDC, 220VAC to 240VAC, 230VAC to 400VAC, 380VAC to 415VAC or 440VAC. The Ui rated insulation voltage is 500VAC The frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 9 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL 9003). The dimensions are (W) 81mm x (H) 81mm x (D) 73mm. The weight is 0.615kg. It has an IP20 degree of protection (as per IEC 60529 standard) on its terminals. The operating temperature is from -25°C to +70°C. The storage temperature is from -40°C to +85°C.
Details
- Brand: Schneider Electric
- Part number: A9N18365
- Series: Acti9 C120
- Category: Circuit Breaker
Related Schneider Electric parts
- Schneider Electric LV563552 — EasyPact CVS630N Circuit Breaker
- Schneider Electric C16F4 — ComPacT NSX160F Basic Frame Circuit Breaker 160A 4P without trip unit
- Schneider Electric C40H32D400 — Circuit breaker, ComPacT NSX400H
- Schneider Electric C16H3TM160 — ComPacT NSX new generation Circuit breaker
- Schneider Electric C25H3TM250 — ComPacT NSX250H Circuit Breaker with TM-D Trip Unit 250A
- Schneider Electric C63N32D630 — Circuit breaker, ComPacT NSX630N, 50kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A
- Schneider Electric A9F74210 — Miniature Circuit Breaker iC60N 2P 10A C
- Schneider Electric A9F74225 — Acti9 iC60N Miniature Circuit Breaker 2P 25A C-Curve
- Schneider Electric A9F74220 — Acti9 iC60N Miniature Circuit-Breaker 2P 20A C-curve
- Schneider Electric EZC100F3020 — EasyPact EZC100F 3-Pole 20A Thermal-Magnetic Circuit Breaker
- Schneider Electric EZC100F3025 — EZC100F TMD Circuit Breaker 25A 3 Poles 3D
- Schneider Electric EZC100F3030 — EasyPact EZC100F Circuit Breaker, 30A, 3P 3t
Specifications
- Poles
- 3
- Network type
- AC
- Rated current
- 80 A
- Tripping curve
- C
- Electrical durability
- 5000 cycles
- Mechanical durability
- 20000 cycles
- Breaking capacity (Icn)
- 10 kA at 230...400 V AC (EN/IEC 60898-1)
- IP degree of protection
- IP20
- Manufacturer part number
- A9N18365
- Rated insulation voltage
- 500 V AC
- Rated operational voltage
- 230...400 V AC
- Rated impulse withstand voltage
- 6 kV
