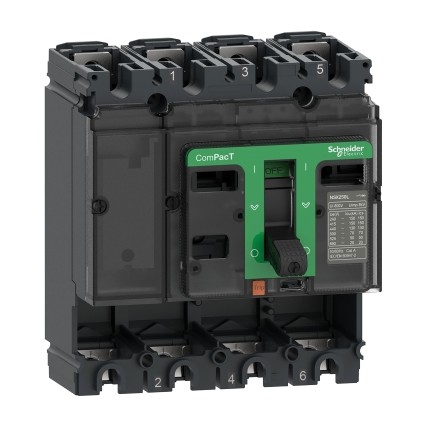

Schneider Electric C16F4 ComPacT NSX160F Basic Frame Circuit Breaker 160A 4P without trip unit. The breaking capacity Icu is 36kA at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if there is an earth-leakage protection). The dimensions are 140mm x 161mm x 86mm. It ensures compliance with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX160F is part of Schneider Electric EcoStruxure Power architecture.
Details
- Brand: Schneider Electric
- Part number: C16F4
- Series: ComPacT
- Category: Circuit Breaker
Related Schneider Electric parts
- Schneider Electric LV432641 — Standard Motor Mechanism Module MT400/630
- circuit breaker;Compact NSX;TMD;3 poles;100 A;415 VAC;C10N3TM100
- circuit breaker;Compact NSX;TMD;3 poles;160 A;415 VAC;C16F3TM160
- circuit breaker;Compact NSX;TMD;3 poles;160 A;415 VAC;C16N3TM160
- circuit breaker;Compact NSX;Micrologic 2.2;3 poles;250 A;415 VAC;C25F32D250
- circuit breaker;Compact NSX;TMD;3 poles;250 A;415 VAC;C25F3TM250
- circuit breaker;Compact NSX;TMD;4 poles;250 A;415 VAC;C25N6TM250
- Schneider Electric C40H32D400 — Circuit breaker, ComPacT NSX400H
- Schneider Electric C16H3TM160 — ComPacT NSX new generation Circuit breaker
- Schneider Electric C25H3TM250 — ComPacT NSX250H Circuit Breaker with TM-D Trip Unit 250A
- Schneider Electric C63N32D630 — Circuit breaker, ComPacT NSX630N, 50kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A
- Schneider Electric A9F74210 — Miniature Circuit Breaker iC60N 2P 10A C
Specifications
- Poles
- 4
- Rated current
- 160 A
- Dimensions (WxHxD)
- 140 x 161 x 86 mm
- Mechanical durability
- 40000 cycles
- Operating temperature
- -25…70 °C
- IP degree of protection
- IP40
- Manufacturer part number
- C16F4
- Rated insulation voltage
- 800 V AC
- Rated operational voltage
- 690 V AC
- Rated ultimate short-circuit breaking capacity
- 36 kA at 380/415 V AC
