LV432641

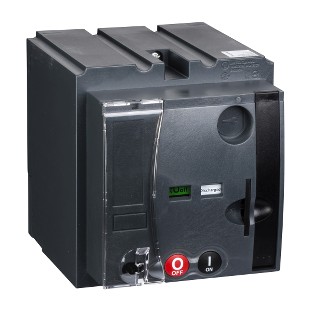

Schneider Electric LV432641 Standard Motor Mechanism Module MT400/630. This is a communicating motor mechanism for Compact NSX 100/160 and PowerPact Multistandard H frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 220VAC to 240VAC 50/60Hz. The consumption is less than 500VA. Padlocking of the device remains possible.
Details
- Brand: Schneider Electric
- Part number: LV432641
- Series: ComPact
- Category: Circuit Breaker Accessory
Related Schneider Electric parts
- circuit breaker;Compact NSX;TMD;3 poles;100 A;415 VAC;C10N3TM100
- circuit breaker;Compact NSX;TMD;3 poles;160 A;415 VAC;C16F3TM160
- circuit breaker;Compact NSX;TMD;3 poles;160 A;415 VAC;C16N3TM160
- circuit breaker;Compact NSX;Micrologic 2.2;3 poles;250 A;415 VAC;C25F32D250
- circuit breaker;Compact NSX;TMD;3 poles;250 A;415 VAC;C25F3TM250
- circuit breaker;Compact NSX;TMD;4 poles;250 A;415 VAC;C25N6TM250
- Schneider Electric C16F4 — ComPacT NSX160F Basic Frame Circuit Breaker 160A 4P without trip unit
- Schneider Electric LV429407 — MN Undervoltage Release for ComPact NSX
- Schneider Electric LV428941 — Extended Rotary Handle for Front Control, Compact INS40 to INS60, Black
- Schneider Electric 29450 — Auxiliary Contact OF/SD/SDE/SDV, 1 C/O, Spring Terminals
- Schneider Electric ATV320D15N4C — Altivar Machine ATV320 Variable Speed Drive 15kW
- Schneider Electric ATV320U07N4C — variable speed drive ATV320 - 0.75kW - 380...500V - 3 phase - compact
Specifications
- Control signal type
- Impulse, Maintained
- Control circuit voltage
- 208-277 V AC, 220-240 V AC
- Manufacturer order code
- LV432641
- Manufacturer part number
- LV432641
- Maximum power consumption
- 500 VA
- Maximum operating frequency
- 4 per minute
- Circuit breaker frame rated current
- 400 A / 630 A
- Circuit breaker response time (open)
- < 700 ms
- Circuit breaker response time (closed)
- < 80 ms
