C63N32D630

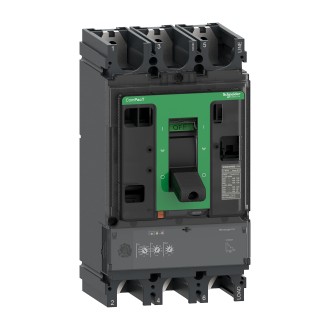

Schneider Electric C63N32D630 Circuit breaker, ComPacT NSX630N, 50kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 2.3 trip unit, with 630A rating. MicroLogic 2.3 trip unit provides adjustable long time and short time protections, and a fixed instantaneous protection. This 3 poles version (140mm x 255mm x 110mm). It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX630N is part of Schneider Electric EcoStruxure Power architecture.
Details
- Brand: Schneider Electric
- Part number: C63N32D630
- Series: ComPacT NSX new generation
- Category: Circuit Breaker
Related Schneider Electric parts
- Schneider Electric C40F32D250 — ComPacT NSX400F Circuit Breaker with MicroLogic 2.3 Trip Unit 250A
- Schneider Electric C40H32D400 — Circuit breaker, ComPacT NSX400H
- Schneider Electric A9F74210 — Miniature Circuit Breaker iC60N 2P 10A C
- Schneider Electric A9F74225 — Acti9 iC60N Miniature Circuit Breaker 2P 25A C-Curve
- Schneider Electric A9F74220 — Acti9 iC60N Miniature Circuit-Breaker 2P 20A C-curve
- Schneider Electric EZC100F3020 — EasyPact EZC100F 3-Pole 20A Thermal-Magnetic Circuit Breaker
- Schneider Electric EZC100F3025 — EZC100F TMD Circuit Breaker 25A 3 Poles 3D
- Schneider Electric EZC100F3030 — EasyPact EZC100F Circuit Breaker, 30A, 3P 3t
- Schneider Electric EZC100F3075 — EasyPact EZC100F circuit breaker, TMD, 75A, 3 poles
- Schneider Electric EZC100H2015 — EasyPact EZC100H circuit breaker 15A 2P
- Schneider Electric EZC100H2025 — EasyPact EZC100H circuit breaker, TMD, 25A, 2 poles
- Schneider Electric EZC100H2030 — EZC100H TMD Circuit Breaker 30A 2-Pole
Request a quote for C63N32D630
Specifications
- Depth
- 110 mm
- Poles
- 3
- Width
- 140 mm
- Height
- 255 mm
- Trip unit
- MicroLogic 2.3
- Net weight
- 6.2 kg
- Rated current
- 630 A
- Trip unit technology
- Electronic
- Electrical durability
- 4000 cycles at 440 V In
- Mechanical durability
- 15000 cycles
- Manufacturer order code
- C63N32D630
- Manufacturer part number
- C63N32D630
- Rated operational voltage
- 690 V AC
- Rated insulation voltage (Ui)
- 800 V AC
- Rated ultimate short-circuit breaking capacity (Icu)
- 50 kA at 415 V AC
