C40F32D250

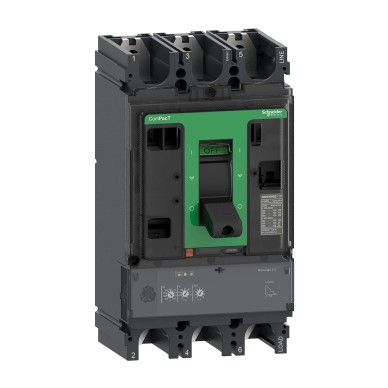

Schneider Electric C40F32D250 ComPacT NSX400F Circuit Breaker with MicroLogic 2.3 Trip Unit 250A. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 2.3 trip unit, with 250A rating. MicroLogic 2.3 trip unit provides adjustable long time and short time protections, and a fixed instantaneous protection. This 3 poles version (140mm x 255mm x 110mm). It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX400F is part of Schneider Electric EcoStruxure Power architecture.
Details
- Brand: Schneider Electric
- Part number: C40F32D250
- Series: ComPacT NSX new generation
- Category: Circuit Breaker
Related Schneider Electric parts
- Schneider Electric C40H32D400 — Circuit breaker, ComPacT NSX400H
- Schneider Electric C63N32D630 — Circuit breaker, ComPacT NSX630N, 50kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A
- Schneider Electric A9N18365 — Miniature Circuit Breaker C120N 3P 80A C curve
- Schneider Electric LV563552 — EasyPact CVS630N Circuit Breaker
- Schneider Electric C16F4 — ComPacT NSX160F Basic Frame Circuit Breaker 160A 4P without trip unit
- Schneider Electric C16H3TM160 — ComPacT NSX new generation Circuit breaker
- Schneider Electric C25H3TM250 — ComPacT NSX250H Circuit Breaker with TM-D Trip Unit 250A
- Schneider Electric A9F74210 — Miniature Circuit Breaker iC60N 2P 10A C
- Schneider Electric A9F74225 — Acti9 iC60N Miniature Circuit Breaker 2P 25A C-Curve
- Schneider Electric A9F74220 — Acti9 iC60N Miniature Circuit-Breaker 2P 20A C-curve
- Schneider Electric EZC100F3020 — EasyPact EZC100F 3-Pole 20A Thermal-Magnetic Circuit Breaker
- Schneider Electric EZC100F3025 — EZC100F TMD Circuit Breaker 25A 3 Poles 3D
Request a quote for C40F32D250
Specifications
- Depth
- 110 mm
- Poles
- 3
- Width
- 140 mm
- Height
- 255 mm
- Standard
- EN/IEC 60947-2
- Trip unit
- MicroLogic 2.3
- Net weight
- 6.05 kg
- Rated current
- 250 A
- Trip unit technology
- Electronic
- Electrical durability
- 6000 cycles at 440 V In
- Mechanical durability
- 15000 cycles
- Manufacturer order code
- C40F32D250
- Manufacturer part number
- C40F32D250
- Rated insulation voltage
- 800 V AC
- Rated operational voltage
- 690 V AC
- Trip unit protection functions
- LSoI
- Rated ultimate short-circuit breaking capacity (Icu)
- 36 kA at 380/415 V AC
