C16H3TM160

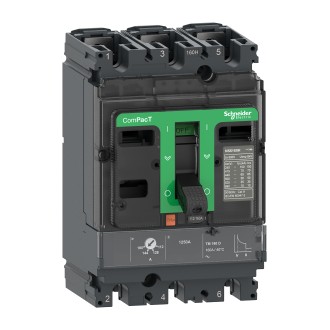

Schneider Electric C16H3TM160 ComPacT NSX new generation Circuit breaker. The operational voltage is 690VAC 50/60Hz. This product embeds a 160A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (105mm x 161mm x 86mm). It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX160H is part of Schneider Electric EcoStruxure Power architecture.
Details
- Brand: Schneider Electric
- Part number: C16H3TM160
- Series: ComPacT new generation
- Category: Circuit Breaker
Related Schneider Electric parts
- Schneider Electric C25H3TM250 — ComPacT NSX250H Circuit Breaker with TM-D Trip Unit 250A
- Schneider Electric C63N32D630 — Circuit breaker, ComPacT NSX630N, 50kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A
- Schneider Electric A9F74210 — Miniature Circuit Breaker iC60N 2P 10A C
- Schneider Electric A9F74225 — Acti9 iC60N Miniature Circuit Breaker 2P 25A C-Curve
- Schneider Electric A9F74220 — Acti9 iC60N Miniature Circuit-Breaker 2P 20A C-curve
- Schneider Electric EZC100F3020 — EasyPact EZC100F 3-Pole 20A Thermal-Magnetic Circuit Breaker
- Schneider Electric EZC100F3025 — EZC100F TMD Circuit Breaker 25A 3 Poles 3D
- Schneider Electric EZC100F3030 — EasyPact EZC100F Circuit Breaker, 30A, 3P 3t
- Schneider Electric EZC100F3075 — EasyPact EZC100F circuit breaker, TMD, 75A, 3 poles
- Schneider Electric EZC100H2015 — EasyPact EZC100H circuit breaker 15A 2P
- Schneider Electric EZC100H2025 — EasyPact EZC100H circuit breaker, TMD, 25A, 2 poles
- Schneider Electric EZC100H2030 — EZC100H TMD Circuit Breaker 30A 2-Pole
Request a quote for C16H3TM160
Specifications
- Depth
- 86 mm
- Poles
- 3
- Width
- 105 mm
- Height
- 161 mm
- Mounting mode
- Fixed
- Rated current
- 160 A
- Trip unit technology
- Thermal-magnetic
- Manufacturer part number
- C16H3TM160
- Rated operational voltage
- 690 V AC
- Rated ultimate short-circuit breaking capacity
- 70 kA at 380/415 V AC
