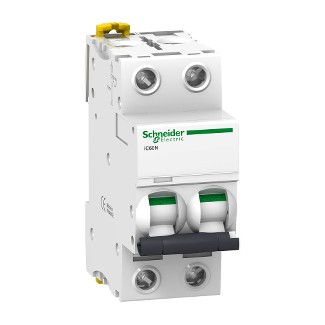

Schneider Electric A9F74210 Miniature Circuit Breaker iC60N 2P 10A C. This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 10A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 20kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6000A at 400VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 85mm x (D) 78.5mm. The weight is 0.25kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.
Details
- Brand: Schneider Electric
- Part number: A9F74210
- Series: Acti9
- Category: Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F74225 — Acti9 iC60N Miniature Circuit Breaker 2P 25A C-Curve
- Schneider Electric A9F74220 — Acti9 iC60N Miniature Circuit-Breaker 2P 20A C-curve
- Schneider Electric A9F73101 — Acti9 iC60N Miniature Circuit Breaker 1P 1A B-Curve
- Schneider Electric A9F73110 — Acti9 iC60N Miniature Circuit Breaker, 1P 10A B-Curve
- Schneider Electric A9F73120 — Miniature Circuit Breaker Acti9 iC60N 1P 20A B-Curve
- Schneider Electric A9F73202 — Acti9 iC60N 2P 2A B-curve Miniature Circuit Breaker
- Schneider Electric A9F73203 — Miniature Circuit Breaker (MCB) Acti9 iC60N 2P 3A B-Curve
- Schneider Electric A9F73204 — Acti9 iC60N Miniature Circuit Breaker 2P 4A B-curve
- Schneider Electric A9F73210 — Miniature Circuit Breaker (MCB) iC60N, 2P, 10A, B Curve
- Schneider Electric A9F73216 — Acti9 iC60N Miniature Circuit Breaker 2P 16A B-Curve
- Schneider Electric A9F73225 — Miniature Circuit Breaker Acti9 iC60N 2P 25A B-curve
- Schneider Electric A9F73240 — Acti9 iC60N Miniature Circuit Breaker 2P 40A B-Curve
Specifications
- Depth
- 78.5 mm
- Poles
- 2P
- Width
- 36 mm
- Height
- 85 mm
- Mounting
- DIN rail
- Standards
- IEC 60947-2, EN 60947-2, IEC 60898-1, EN 60898-1
- Net weight
- 0.25 kg
- Network type
- AC, DC
- Rated current
- 10 A
- Tripping curve
- C
- Breaking capacity Icn
- 6000 A at 400 V AC
- Electrical durability
- 10000 cycles
- Mechanical durability
- 20000 cycles
- Operating temperature
- -35…70 °C
- IP degree of protection
- IP20
- Manufacturer part number
- A9F74210
- Rated insulation voltage
- 500 V AC
- Rated impulse withstand voltage
- 6 kV
