A9F73210

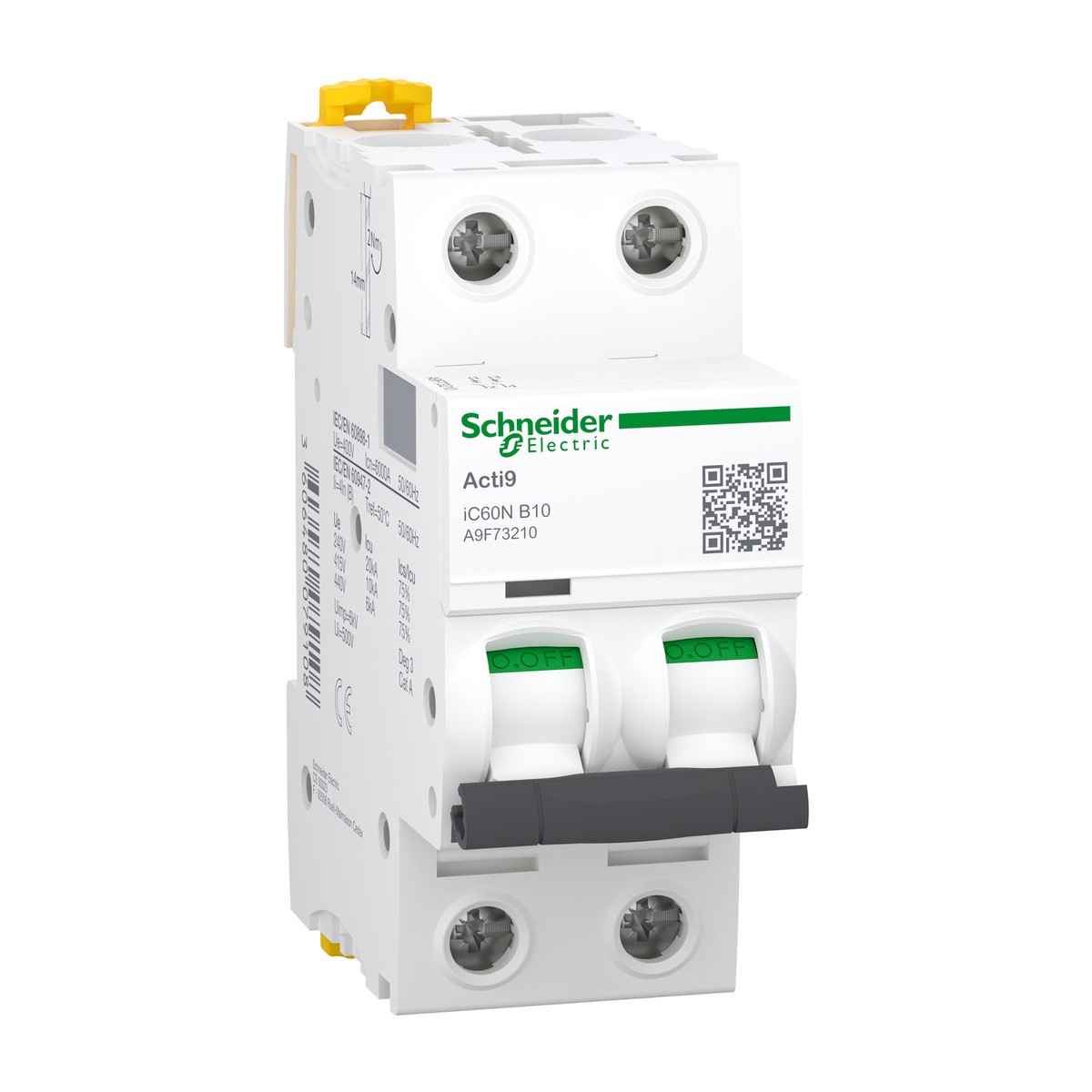

Schneider Electric A9F73210 Miniature Circuit Breaker (MCB) iC60N, 2P, 10A, B Curve. The Schneider Electric A9F73210 is an Acti9 iC60N Miniature Circuit Breaker (MCB) providing reliable protection for final distribution circuits. This 2-pole, 10 Ampere, B-curve thermal-magnetic device is ideal for general-purpose AC/DC applications. Operational voltages include 220-240 V AC, 380-415 V AC (50/60 Hz), and up to 125 V DC. The A9F73210 offers a breaking capacity of 6000 A Icn (IEC/EN 60898-1) at 400 V AC, and 10 kA Icu (IEC/EN 60947-2) at 380-415 V AC and <= 125 V DC, ensuring robust fault protection. It mounts on a 35 mm DIN rail, provides IP20 protection (IP40 in modular enclosures), and is suitable for isolation. This Schneider Electric MCB is crucial for diverse industrial and building service applications across Egypt and the Gulf.
Details
- Brand: Schneider Electric
- Part number: A9F73210
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F73216 — Acti9 iC60N Miniature Circuit Breaker 2P 16A B-Curve
- Schneider Electric A9F73225 — Miniature Circuit Breaker Acti9 iC60N 2P 25A B-curve
- Schneider Electric A9F73240 — Acti9 iC60N Miniature Circuit Breaker 2P 40A B-Curve
- Schneider Electric A9F73250 — Acti9 iC60N MCB 2P 50A B-curve 6000A/10kA
- Schneider Electric A9F73263 — Miniature Circuit Breaker (MCB) 2P 63A B-Curve
- Schneider Electric A9F73304 — Acti9 iC60N Miniature Circuit Breaker 3P 4A B-Curve
- Schneider Electric A9F73306 — Miniature Circuit Breaker, iC60N, 3P, 6A, B curve
- Schneider Electric A9F73316 — Acti9 iC60N Miniature Circuit Breaker 3P 16A B-Curve
- Schneider Electric A9F73320 — MCB, Acti9 iC60N, 3P, 20A, B-curve
- Schneider Electric A9F73325 — Miniature Circuit Breaker (MCB) Acti9 iC60N 3P 25A B-Curve
- Schneider Electric A9F73340 — Miniature Circuit Breaker Acti9 iC60N 3P 40A B curve
- Schneider Electric A9F73350 — Acti9 iC60N Miniature Circuit Breaker 3P 50A B-Curve
Specifications
- Curve code
- B
- Net weight
- 0.25 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- [In] rated current
- 10 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- Single terminal 1...25 mm² rigid; 1...16 mm² flexible
- IP degree of protection
- IP20 (IP40 in modular enclosure)
- Manufacturer part number
- A9F73210
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 220...240 V AC 50/60 Hz; 380...415 V AC 50/60 Hz; <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 10 KA Icu at 380...415 V AC 50/60 Hz; 10 KA Icu at <= 125 V DC
- Ambient air temperature for operation
- -35…70 °C
