A9F73304

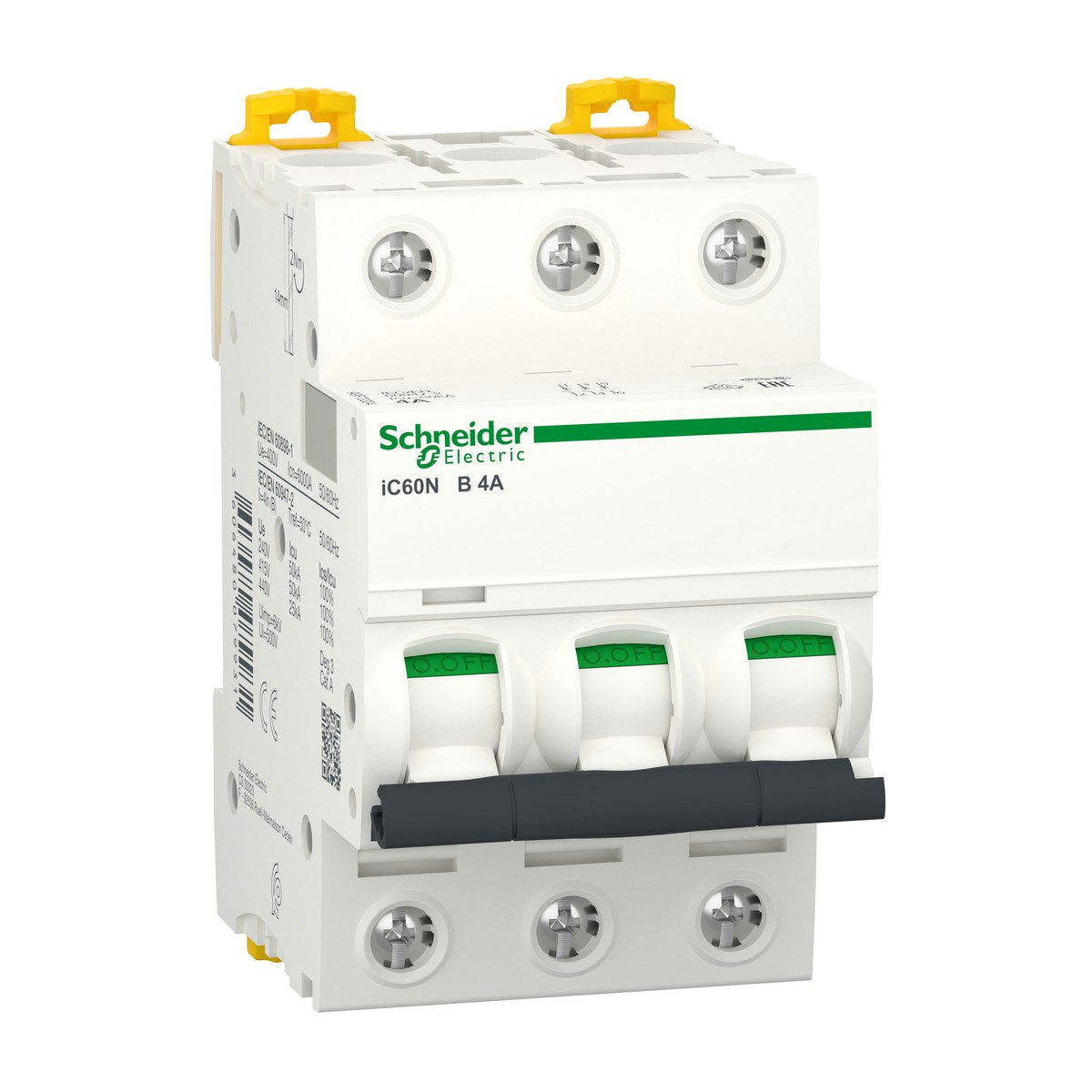

Schneider Electric A9F73304 Acti9 iC60N Miniature Circuit Breaker 3P 4A B-Curve. The Schneider Electric A9F73304 is a robust Acti9 iC60N Miniature Circuit Breaker (MCB) designed for reliable protection in final distribution circuits. This 3-pole, 4A, B-curve thermal-magnetic breaker ensures optimal safety for both AC and DC networks. It boasts a substantial breaking capacity of 6000A Icn at 400V AC (conforming to EN/IEC 60898-1) and 50kA Icu at 380-415V AC (conforming to EN/IEC 60947-2), along with 10kA Icu at <=180V DC. Operating seamlessly across a wide range of operational voltages, including 220-240V AC and 380-415V AC at 50/60 Hz, it is perfectly suited for electrical installations in Egypt and the Gulf region. Featuring clip-on 35mm DIN rail mounting and IP20 protection, the A9F73304 offers straightforward installation and suitability for isolation. This reliable Schneider Electric MCB is ideal for critical applications such as building services, water treatment plants, light industrial settings, and residential power distribution, providing essential circuit protection against overloads and short-circuits.
Details
- Brand: Schneider Electric
- Part number: A9F73304
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F73306 — Miniature Circuit Breaker, iC60N, 3P, 6A, B curve
- Schneider Electric A9F73316 — Acti9 iC60N Miniature Circuit Breaker 3P 16A B-Curve
- Schneider Electric A9F73320 — MCB, Acti9 iC60N, 3P, 20A, B-curve
- Schneider Electric A9F73325 — Miniature Circuit Breaker (MCB) Acti9 iC60N 3P 25A B-Curve
- Schneider Electric A9F73340 — Miniature Circuit Breaker Acti9 iC60N 3P 40A B curve
- Schneider Electric A9F73350 — Acti9 iC60N Miniature Circuit Breaker 3P 50A B-Curve
- Schneider Electric A9F73402 — Acti9 iC60N Miniature Circuit Breaker 4P 2A B-Curve
- Schneider Electric A9F73410 — Miniature Circuit Breaker (MCB) Acti9 iC60N 4P 10A B-Curve
- Schneider Electric A9F73416 — Acti9 iC60N Miniature Circuit Breaker (MCB) 4P 16A B-Curve
- Schneider Electric A9F73450 — Acti9 iC60N Miniature Circuit Breaker 4P 50A B-Curve
- Schneider Electric A9F73463 — Acti9 iC60N Miniature Circuit Breaker, 4P, 63A, B-Curve
- Schneider Electric A9F74102 — Miniature Circuit Breaker Acti9 iC60N 1P 2A C Curve
Specifications
- Depth
- 78.5 Mm
- Width
- 54 Mm
- Height
- 85 Mm
- Curve code
- B
- Net weight
- 0.375 Kg
- Network type
- DC, AC
- Product name
- Acti9 iC60
- Mounting support
- 35 mm DIN rail
- Poles description
- 3P
- [In] rated current
- 4 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- Single terminal (top or bottom) , for 1 cable(s) , 1…25 mm², rigid, copper
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9F73304
- Suitability for isolation
- Yes conforming to EN/IEC 60898-1, Yes conforming to EN/IEC 60947-2
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 180 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 50 KA Icu at 380...415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
