A9F73350

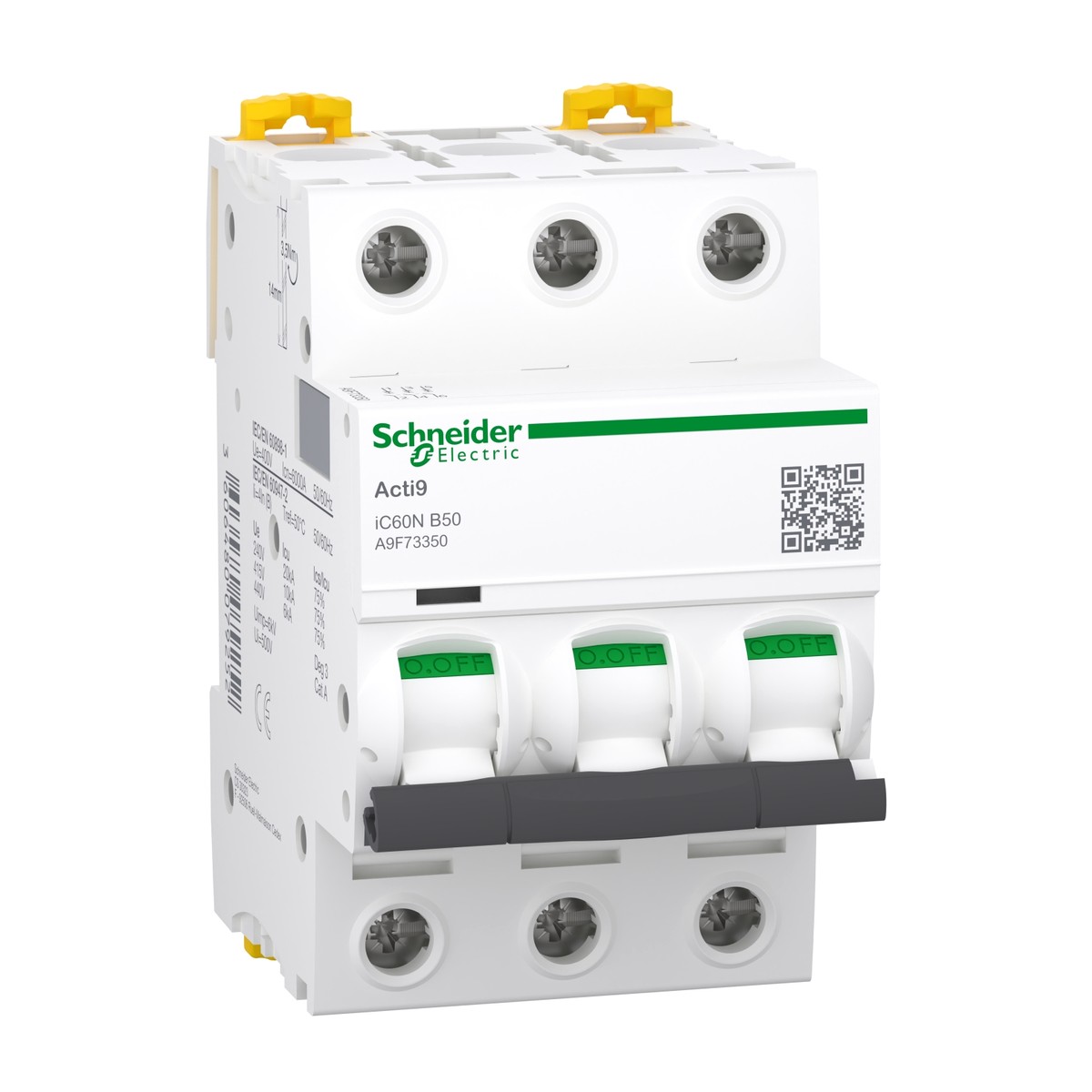

Schneider Electric A9F73350 Acti9 iC60N Miniature Circuit Breaker 3P 50A B-Curve. The Schneider Electric A9F73350 is a robust Acti9 iC60N Miniature Circuit Breaker (MCB) engineered for reliable electrical distribution in final circuits. This 3-pole (3P) device features a 50A rated current and a B-curve tripping characteristic, making it suitable for a wide range of applications. It supports both AC and DC networks and utilizes thermal-magnetic trip unit technology for comprehensive circuit protection. Key breaking capacities include 6000A (IEC/EN 60898-1) at 400V AC and 10kA (IEC/EN 60947-2) at 380-415V AC, alongside multi-voltage operational flexibility up to 440V AC and 180V DC. Designed for easy installation, the A9F73350 clips onto a 35 mm DIN rail and offers an IP20 degree of protection. Its wide operating temperature range (-35 to 70 °C) ensures performance in challenging environments. This MCB is an excellent choice for protecting critical circuits in demanding sectors across Egypt and the Gulf, including cement production, oil and gas facilities, water treatment plants, food and beverage processing, and general building services.
Details
- Brand: Schneider Electric
- Part number: A9F73350
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F73402 — Acti9 iC60N Miniature Circuit Breaker 4P 2A B-Curve
- Schneider Electric A9F73410 — Miniature Circuit Breaker (MCB) Acti9 iC60N 4P 10A B-Curve
- Schneider Electric A9F73416 — Acti9 iC60N Miniature Circuit Breaker (MCB) 4P 16A B-Curve
- Schneider Electric A9F73450 — Acti9 iC60N Miniature Circuit Breaker 4P 50A B-Curve
- Schneider Electric A9F73463 — Acti9 iC60N Miniature Circuit Breaker, 4P, 63A, B-Curve
- Schneider Electric A9F74102 — Miniature Circuit Breaker Acti9 iC60N 1P 2A C Curve
- Schneider Electric A9F74106 — Acti9 iC60N Miniature Circuit Breaker, 1P, 6A, C curve, 6000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
- Schneider Electric A9F74140 — Acti9 iC60N MCB 1P 40A C-curve
- Schneider Electric A9F74201 — Miniature Circuit Breaker, iC60N, 2P, 1A, C-Curve
- Schneider Electric A9F74202 — Miniature Circuit Breaker Acti9 iC60N 2P 2A C-curve
- Schneider Electric A9F74204 — Acti9 iC60N Miniature Circuit Breaker, 2P, 4A, C Curve
- Schneider Electric A9F74206 — iC60N Miniature Circuit Breaker, 2P 6A C-Curve
Specifications
- Depth
- 78.5 Mm
- Width
- 54 Mm
- Height
- 85 Mm
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- B
- Net weight
- 0.375 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Poles description
- 3P
- [In] rated current
- 50 A
- Trip unit technology
- Thermal-magnetic
- IP degree of protection
- IP20
- Manufacturer part number
- A9F73350
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 180 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 10 KA Icu at 380-415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
