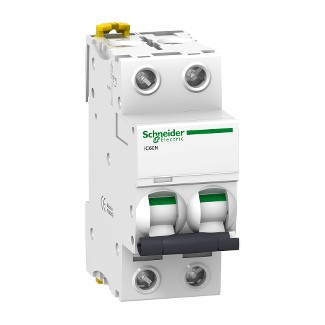

Schneider Electric A9F74206 iC60N Miniature Circuit Breaker, 2P 6A C-Curve. The Schneider Electric A9F74206 is a robust Acti9 iC60N Miniature Circuit Breaker (MCB) engineered for critical circuit protection in final distribution applications. This high-performance 2-pole, 6A C-curve MCB features thermal-magnetic trip technology, safeguarding electrical installations against overcurrents and short circuits across both AC and DC networks. It supports a wide range of operational voltages, notably 220-240 V AC and 380-415 V AC, and up to 125 V DC. Key breaking capacities include 10 kA Icu at 380-415 V AC (EN/IEC 60947-2) and 6000 A Icn at 400 V AC (EN/IEC 60898-1), ensuring reliable fault interruption. Designed for easy 35 mm DIN rail clip-on mounting with IP20 protection, it operates reliably in ambient temperatures from -35 to 70 °C. This Schneider Electric A9F74206 MCB is ideal for Egyptian and Gulf industries like cement, oil and gas, water treatment, food and beverage, and building services, also being certified for isolation.
Details
- Brand: Schneider Electric
- Part number: A9F74206
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F74216 — iC60N Miniature Circuit Breaker 2P 16A C-curve
- Schneider Electric A9F74250 — Acti9 iC60N Miniature Circuit Breaker 2P 50A C-Curve
- Schneider Electric A9F74302 — Miniature Circuit Breaker (MCB) Acti9 iC60N 3P 2A C-curve
- Schneider Electric A9F74303 — Miniature circuit breaker Acti9 iC60N 3P 3A C-curve
- Schneider Electric A9F74313 — Miniature Circuit Breaker Acti9 iC60N 3P 13A C-Curve
- Schneider Electric A9F74316 — Acti9 iC60N Miniature Circuit Breaker 3P 16A C-Curve
- Schneider Electric A9F74325 — Acti9 iC60N 3P 25A C-Curve Miniature Circuit Breaker
- Schneider Electric A9F74332 — Acti9 iC60N Miniature Circuit Breaker, 3P, 32A, C Curve
- Schneider Electric A9F74340 — iC60N Miniature Circuit Breaker 3P 40A C-curve
- Schneider Electric A9F74350 — Miniature circuit breaker, iC60N, 3P, 50A, C curve
- Schneider Electric A9F74403 — Miniature Circuit Breaker (MCB) Acti9 iC60N 4P 3A C-curve
- Schneider Electric A9F74406 — Miniature circuit breaker (MCB) Acti9 iC60N 4P 6A C-curve
Specifications
- Depth
- 78.5 Mm
- Width
- 36 Mm
- Height
- 85 Mm
- Curve code
- C
- Net weight
- 0.25 Kg
- Network type
- AC, DC
- Product name
- Acti9 iC60
- Mounting mode
- Clip-on
- Mounting support
- 35 mm DIN rail
- Device short name
- IC60N
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- [In] rated current
- 6 A
- Trip unit technology
- Thermal-magnetic
- Breaking capacity (DC)
- 10 KA Icu at <= 125 V DC conforming to EN/IEC 60947-2
- Connections - terminals
- Single terminal (top or bottom) , for 1 cable(s) , 1…25 mm², rigid, copper
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9F74206
- Number of protected poles
- 2
- Product or component type
- Miniature circuit-breaker
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 10 KA Icu at 380...415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
