A9F74350

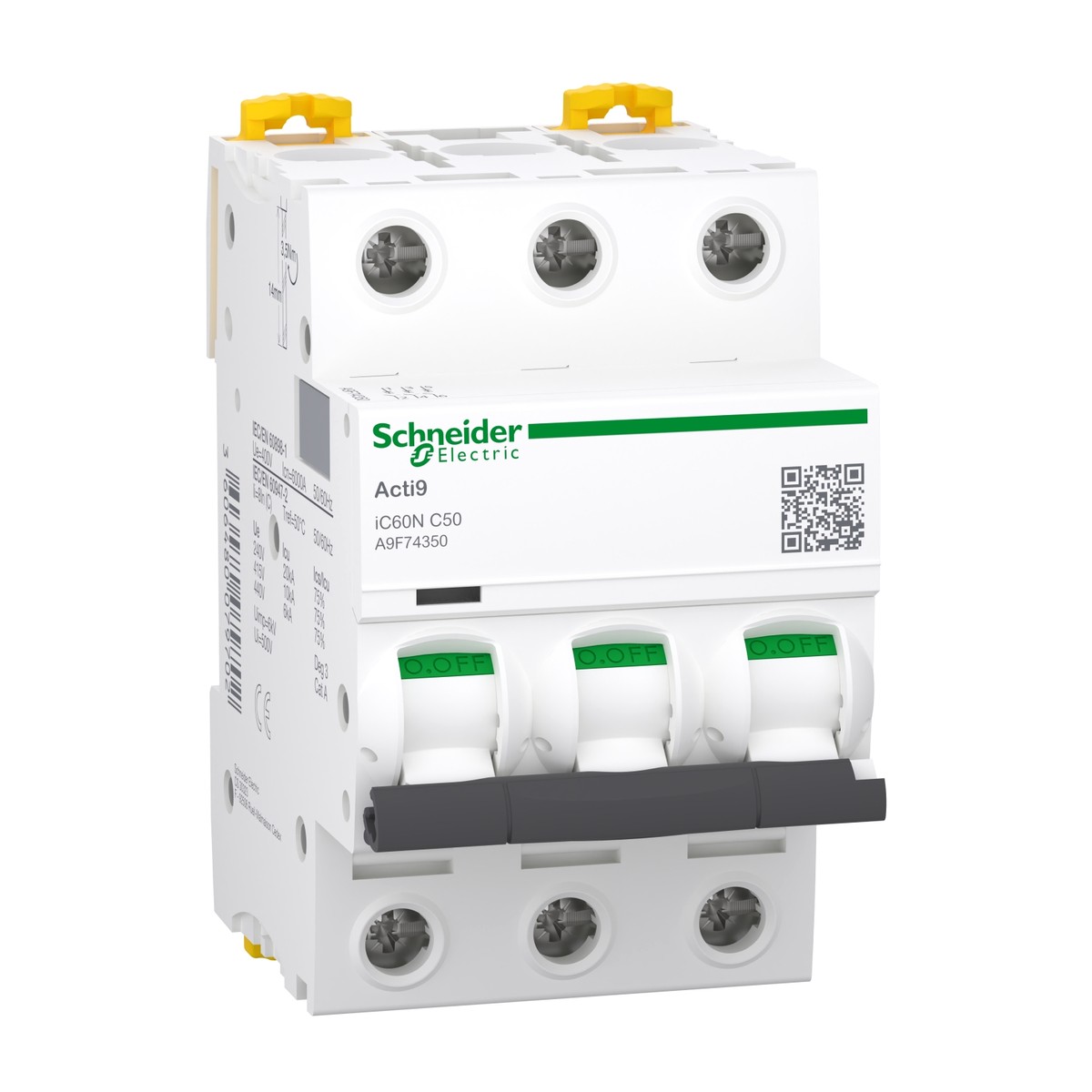

Schneider Electric A9F74350 Miniature circuit breaker, iC60N, 3P, 50A, C curve. The Schneider Electric A9F74350 is a robust Acti9 iC60N miniature circuit breaker, engineered for reliable protection in final distribution circuits. This 3-pole, 50A MCB features a C-curve thermal-magnetic trip unit, providing effective overload and short-circuit protection for both AC and DC networks. It supports a wide operational voltage range, including 220-240V AC and 380-415V AC at 50/60 Hz, as well as up to 180V DC. With an impressive breaking capacity of 10 kA Icu at 380-415V AC and 10 kA Icu at <= 180V DC, alongside 6000A Icn at 400V AC (IEC/EN 60898-1), the A9F74350 ensures high performance and safety. Its DIN-rail mounting makes installation straightforward, and the IP20 degree of protection (IP40 in modular enclosures) highlights its durability. This versatile circuit breaker is ideal for diverse applications across Egypt and the Gulf, including commercial buildings, industrial facilities, water treatment plants, oil and gas infrastructure, and general power distribution systems.
Details
- Brand: Schneider Electric
- Part number: A9F74350
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F74403 — Miniature Circuit Breaker (MCB) Acti9 iC60N 4P 3A C-curve
- Schneider Electric A9F74406 — Miniature circuit breaker (MCB) Acti9 iC60N 4P 6A C-curve
- Schneider Electric A9F74410 — Miniature Circuit Breaker (MCB) Acti9 iC60N 4P 10A C-Curve
- Schneider Electric A9F74420 — Acti9 iC60N Miniature Circuit Breaker 4P 20A C-Curve
- Schneider Electric A9F74432 — Miniature Circuit Breaker, Acti9 iC60N, 4P, 32A, C curve
- Schneider Electric A9F74440 — Acti9 iC60N Miniature Circuit Breaker 4P 40A C-Curve
- Schneider Electric A9F74450 — Miniature Circuit Breaker (MCB) 4P 50A C-Curve
- Schneider Electric A9F75101 — Acti9 iC60N MCB 1P 1A D-Curve
- Schneider Electric A9F75120 — Acti9 iC60N Miniature Circuit Breaker (MCB), 1P, 20A, D curve
- Schneider Electric A9F75125 — Miniature circuit breaker (MCB) Acti9 iC60N 1P 25A D curve
- Schneider Electric A9F75204 — Miniature circuit breaker Acti9 iC60N 2P 4A D-curve
- Schneider Electric A9F75210 — Acti9 iC60N 2P 10A D-Curve Miniature Circuit Breaker
Specifications
- Depth
- 78.5 Mm
- Width
- 54 Mm
- Height
- 85 Mm
- Curve code
- C
- Net weight
- 0.375 Kg
- Network type
- AC; DC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 3P
- [In] rated current
- 50 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- Single terminal (top or bottom) , for 1 cable(s) , 1…35 mm², rigid, copper
- IP degree of protection
- IP20 conforming to IEC 60529; IP40 in modular enclosure (Insulation class II) conforming to IEC 60529
- Manufacturer part number
- A9F74350
- Number of protected poles
- 3
- Suitability for isolation
- Yes conforming to EN/IEC 60898-1; Yes conforming to EN/IEC 60947-2
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz; 220...240 V AC 50/60 Hz; 380...415 V AC 50/60 Hz; 440 V AC 50/60 Hz; <= 180 V DC
- Breaking capacity (Icn at 400 V AC)
- 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
- Ambient air temperature for operation
- -35…70 °C
- Breaking capacity (Icu at <= 180 V DC)
- 10 KA Icu at <= 180 V DC conforming to EN/IEC 60947-2
- Breaking capacity (Icu at 380-415 V AC)
- 10 KA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
