A9F74216

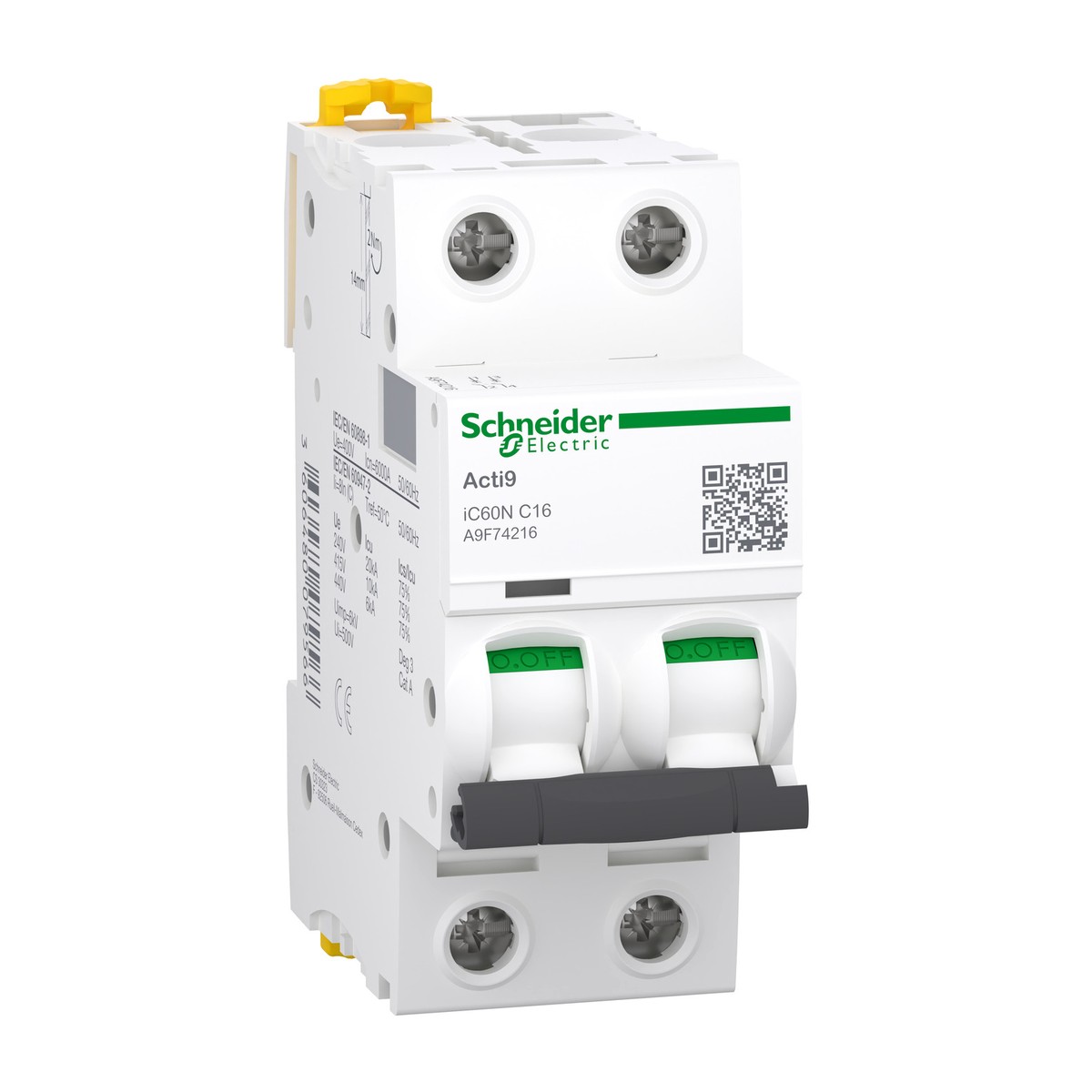

Schneider Electric A9F74216 iC60N Miniature Circuit Breaker 2P 16A C-curve. The Schneider Electric A9F74216 is a robust Acti9 iC60N Miniature Circuit Breaker (MCB) engineered for reliable electrical distribution in diverse applications. This 2-pole, 16A MCB features a C-curve trip unit, providing thermal-magnetic protection against overloads and short circuits. It is designed for both AC and DC networks, accommodating a wide range of operational voltages including 220-240V and 380-415V AC, perfectly suited for the electrical standards in Egypt and the Gulf region. With a breaking capacity of 6000A (IEC/EN 60898-1) at 400V AC and 10kA (IEC/EN 60947-2) at 380-415V AC, the A9F74216 ensures robust protection. Its DIN-rail mountable design, IP20 degree of protection, and an operating temperature range of -35 to 70 °C make it ideal for demanding environments. This MCB is commonly deployed in critical infrastructure across the Gulf and Egypt, including cement plants, oil and gas facilities, water treatment, and commercial building services, ensuring safety and continuity for final distribution circuits.
Details
- Brand: Schneider Electric
- Part number: A9F74216
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F74250 — Acti9 iC60N Miniature Circuit Breaker 2P 50A C-Curve
- Schneider Electric A9F74302 — Miniature Circuit Breaker (MCB) Acti9 iC60N 3P 2A C-curve
- Schneider Electric A9F74303 — Miniature circuit breaker Acti9 iC60N 3P 3A C-curve
- Schneider Electric A9F74313 — Miniature Circuit Breaker Acti9 iC60N 3P 13A C-Curve
- Schneider Electric A9F74316 — Acti9 iC60N Miniature Circuit Breaker 3P 16A C-Curve
- Schneider Electric A9F74325 — Acti9 iC60N 3P 25A C-Curve Miniature Circuit Breaker
- Schneider Electric A9F74332 — Acti9 iC60N Miniature Circuit Breaker, 3P, 32A, C Curve
- Schneider Electric A9F74340 — iC60N Miniature Circuit Breaker 3P 40A C-curve
- Schneider Electric A9F74350 — Miniature circuit breaker, iC60N, 3P, 50A, C curve
- Schneider Electric A9F74403 — Miniature Circuit Breaker (MCB) Acti9 iC60N 4P 3A C-curve
- Schneider Electric A9F74406 — Miniature circuit breaker (MCB) Acti9 iC60N 4P 6A C-curve
- Schneider Electric A9F74410 — Miniature Circuit Breaker (MCB) Acti9 iC60N 4P 10A C-Curve
Specifications
- Depth
- 78.5 Mm
- Width
- 36 Mm
- Height
- 85 Mm
- Curve code
- C
- Net weight
- 0.25 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- [In] rated current
- 16 A
- Trip unit technology
- Thermal-magnetic
- IP degree of protection
- IP20
- Manufacturer part number
- A9F74216
- Suitability for isolation
- Yes
- Rated Operational Voltage AC
- 12...133 V, 220...240 V, 380...415 V, 440 V
- Rated Operational Voltage DC
- <= 125 V
- Rigid cable connection capacity
- 1…25 mm²
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 10 KA Icu at 380...415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
