A9F73225

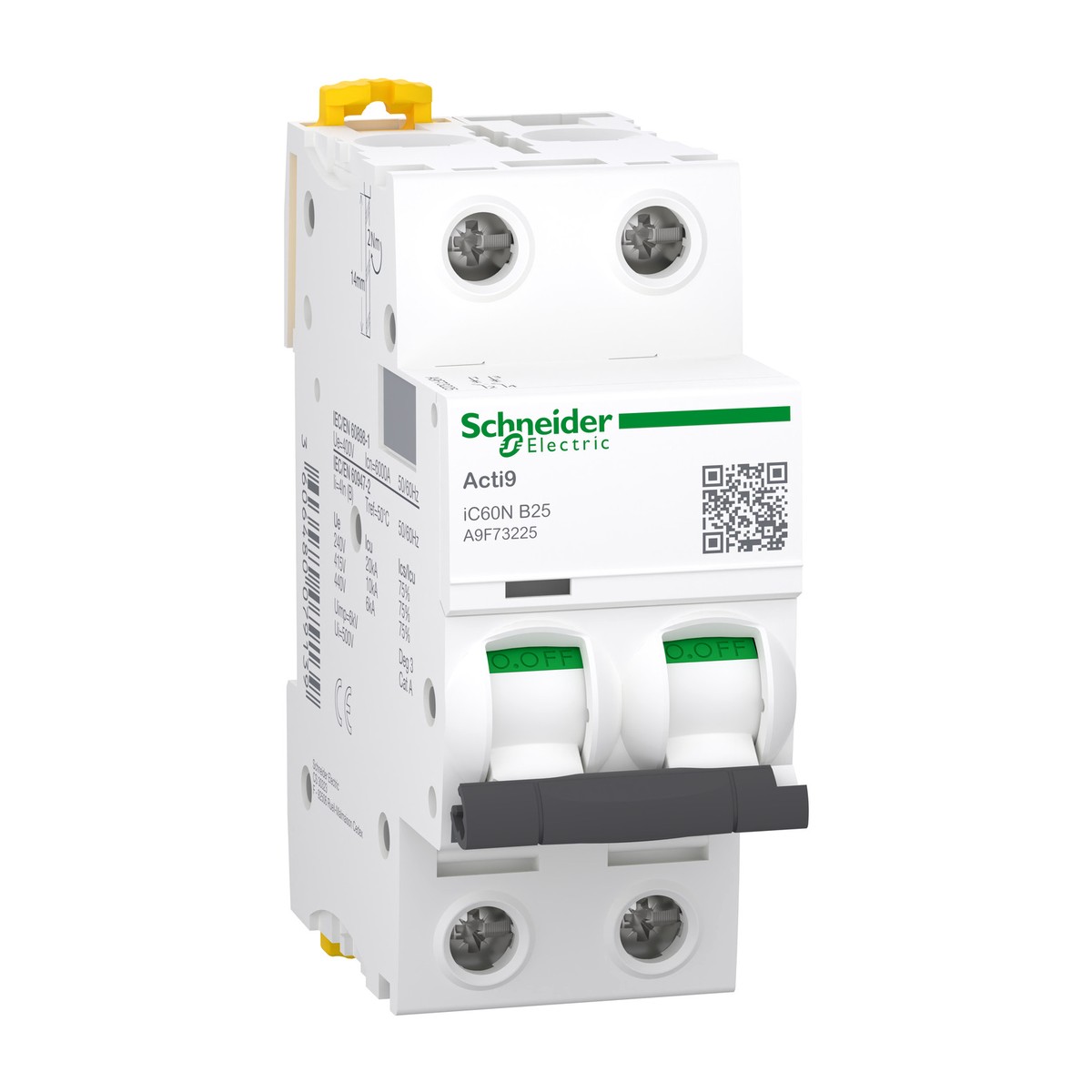

Schneider Electric A9F73225 Miniature Circuit Breaker Acti9 iC60N 2P 25A B-curve. The Schneider Electric A9F73225 Miniature Circuit Breaker from the Acti9 iC60N series is engineered to deliver reliable protection for final distribution circuits. This 2-pole, 25A, B-curve MCB features thermal-magnetic trip unit technology, ensuring effective overload and short-circuit protection for both AC (up to 440V) and DC (up to 125V) networks, operating flawlessly at 50/60 Hz. With a breaking capacity of 6000A (IEC/EN 60898-1) at 400V AC and 10kA (IEC/EN 60947-2) at 380-415V AC, it meets rigorous safety standards. Designed for 35 mm DIN rail mounting, this robust Schneider Electric A9F73225 MCB offers IP20 protection and maintains optimal performance across an ambient temperature range of -35 to 70 °C. It is an ideal solution for critical applications in Egypt and the Gulf region, including cement plants, oil and gas facilities, water treatment plants, food and beverage processing, textile manufacturing, and various building services. Its versatile design and proven reliability make it a top choice for demanding industrial and commercial environments.
Details
- Brand: Schneider Electric
- Part number: A9F73225
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F73240 — Acti9 iC60N Miniature Circuit Breaker 2P 40A B-Curve
- Schneider Electric A9F73250 — Acti9 iC60N MCB 2P 50A B-curve 6000A/10kA
- Schneider Electric A9F73263 — Miniature Circuit Breaker (MCB) 2P 63A B-Curve
- Schneider Electric A9F73304 — Acti9 iC60N Miniature Circuit Breaker 3P 4A B-Curve
- Schneider Electric A9F73306 — Miniature Circuit Breaker, iC60N, 3P, 6A, B curve
- Schneider Electric A9F73316 — Acti9 iC60N Miniature Circuit Breaker 3P 16A B-Curve
- Schneider Electric A9F73320 — MCB, Acti9 iC60N, 3P, 20A, B-curve
- Schneider Electric A9F73325 — Miniature Circuit Breaker (MCB) Acti9 iC60N 3P 25A B-Curve
- Schneider Electric A9F73340 — Miniature Circuit Breaker Acti9 iC60N 3P 40A B curve
- Schneider Electric A9F73350 — Acti9 iC60N Miniature Circuit Breaker 3P 50A B-Curve
- Schneider Electric A9F73402 — Acti9 iC60N Miniature Circuit Breaker 4P 2A B-Curve
- Schneider Electric A9F73410 — Miniature Circuit Breaker (MCB) Acti9 iC60N 4P 10A B-Curve
Specifications
- Width
- 36 Mm
- Curve code
- B
- Net weight
- 0.25 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- Terminal capacity
- 1...25 mm² rigid copper, 1...16 mm² flexible copper
- Rated current [In]
- 25 A
- Trip unit technology
- Thermal-magnetic
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9F73225
- Suitability for isolation
- Yes
- Rated operational voltage [Ue]
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 10 KA Icu at 380...415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
- Rated service breaking capacity [Ics]
- 7.5 KA 75 % x Icu at 380...415 V AC 50/60 Hz
