A9F73202

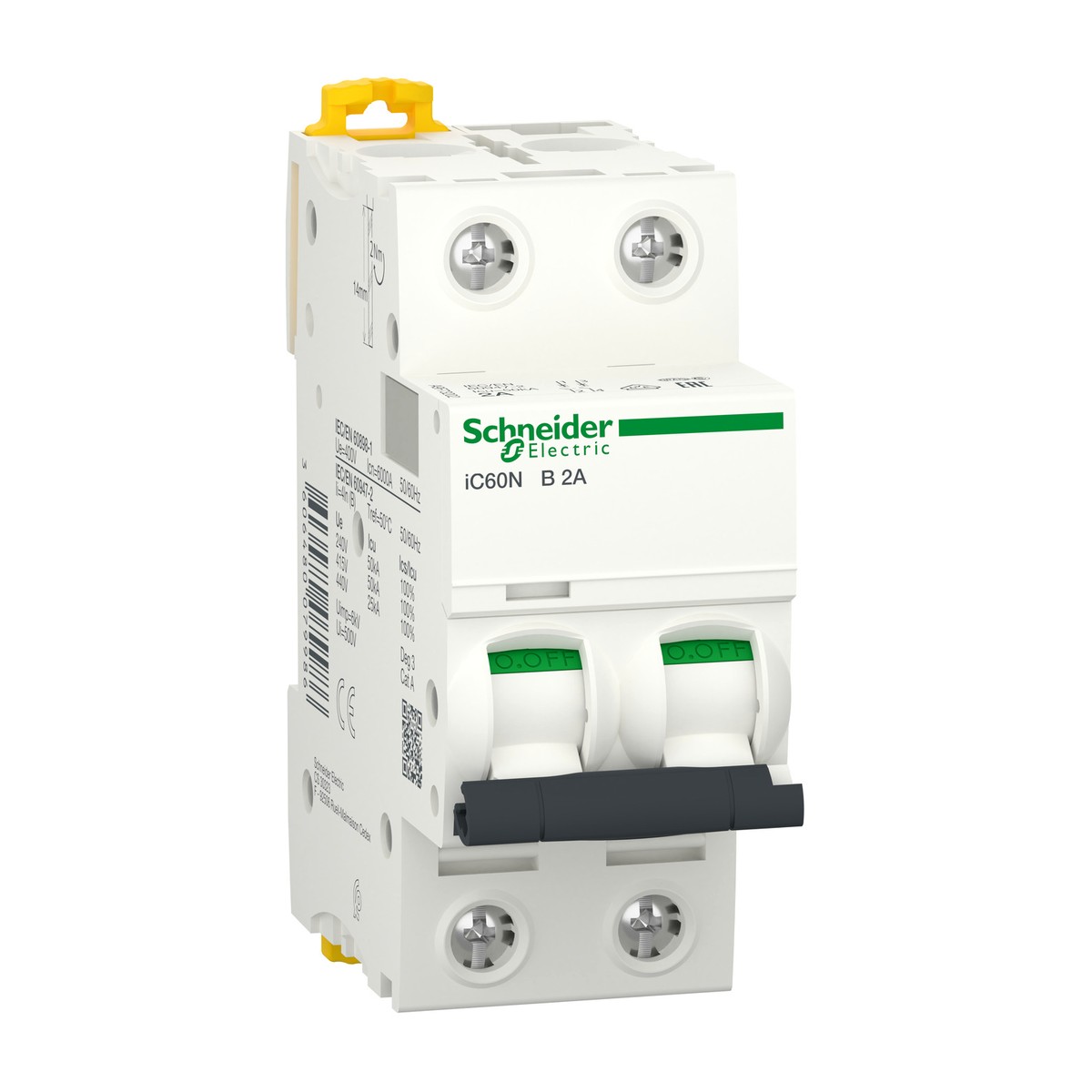

Schneider Electric A9F73202 Acti9 iC60N 2P 2A B-curve Miniature Circuit Breaker. The Schneider Electric A9F73202 is a robust Acti9 iC60N Miniature Circuit Breaker (MCB) designed for efficient and reliable protection of final distribution circuits. This 2-pole device features a 2 A rated current and a B-curve trip characteristic, making it ideal for safeguarding resistive or lightly inductive loads against overcurrents and short circuits. Engineered with thermal-magnetic trip unit technology, it offers both overload and short-circuit protection for AC and DC networks. The Schneider Electric A9F73202 boasts impressive breaking capacities of 6000 A (IEC/EN 60898-1 at 400 V AC) and 50 kA (IEC/EN 60947-2 at 380-415 V AC), ensuring high performance in demanding environments. Its broad operational voltage compatibility, including 220-240 V AC and 380-415 V AC at 50/60 Hz, aligns perfectly with electrical standards in Egypt and the Gulf region. This MCB is suitable for a wide array of applications, from building services to critical industrial sectors such as cement, oil and gas, water treatment, food and beverage, and textiles. Featuring DIN rail mounting and an IP20 degree of protection, it ensures straightforward installation and durability.
Details
- Brand: Schneider Electric
- Part number: A9F73202
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F73203 — Miniature Circuit Breaker (MCB) Acti9 iC60N 2P 3A B-Curve
- Schneider Electric A9F73204 — Acti9 iC60N Miniature Circuit Breaker 2P 4A B-curve
- Schneider Electric A9F73210 — Miniature Circuit Breaker (MCB) iC60N, 2P, 10A, B Curve
- Schneider Electric A9F73216 — Acti9 iC60N Miniature Circuit Breaker 2P 16A B-Curve
- Schneider Electric A9F73225 — Miniature Circuit Breaker Acti9 iC60N 2P 25A B-curve
- Schneider Electric A9F73240 — Acti9 iC60N Miniature Circuit Breaker 2P 40A B-Curve
- Schneider Electric A9F73250 — Acti9 iC60N MCB 2P 50A B-curve 6000A/10kA
- Schneider Electric A9F73263 — Miniature Circuit Breaker (MCB) 2P 63A B-Curve
- Schneider Electric A9F73304 — Acti9 iC60N Miniature Circuit Breaker 3P 4A B-Curve
- Schneider Electric A9F73306 — Miniature Circuit Breaker, iC60N, 3P, 6A, B curve
- Schneider Electric A9F73316 — Acti9 iC60N Miniature Circuit Breaker 3P 16A B-Curve
- Schneider Electric A9F73320 — MCB, Acti9 iC60N, 3P, 20A, B-curve
Specifications
- Width
- 36 mm
- Curve code
- B
- Network type
- AC, DC
- Product weight
- 0.25 kg
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- Terminal capacity
- 1…25 mm² rigid; 1…16 mm² flexible
- [In] rated current
- 2 A
- Trip unit technology
- Thermal-magnetic
- Breaking capacity (DC)
- 10 kA Icu at <= 125 V DC
- IP degree of protection
- IP20
- Manufacturer part number
- A9F73202
- Number of protected poles
- 2
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz; 220...240 V AC 50/60 Hz; 380...415 V AC 50/60 Hz; 440 V AC 50/60 Hz; <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 50 kA Icu at 380...415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
