A9F73204

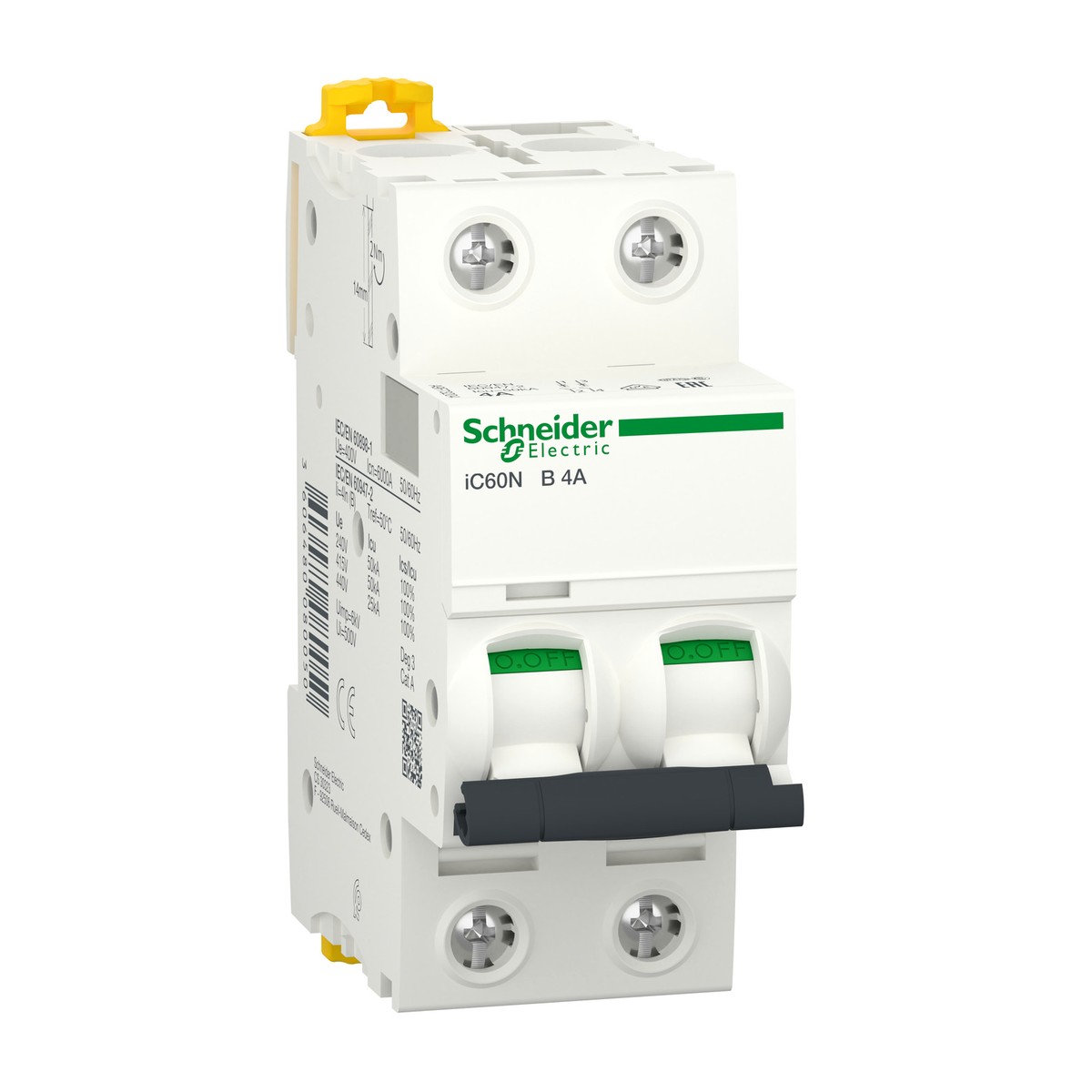

Schneider Electric A9F73204 Acti9 iC60N Miniature Circuit Breaker 2P 4A B-curve. The Schneider Electric A9F73204 Acti9 iC60N Miniature Circuit Breaker provides robust and reliable protection for final distribution circuits. This 2-pole, 4A, B-curve MCB utilizes thermal-magnetic trip unit technology, safeguarding against both overload and short-circuit faults in AC and DC networks. Compatible with common voltages in Egypt and the Gulf, it operates across 220-240V and 380-415V AC at 50/60 Hz, as well as up to 125V DC. The A9F73204 offers impressive breaking capacities of 6000A (IEC/EN 60898-1) at 400V AC and 50kA (IEC/EN 60947-2) at 220-415V AC, ensuring high performance. Designed for quick clip-on mounting to a 35mm DIN rail, it is ideal for building services, water treatment, light industrial, and commercial applications throughout the region. With IP20 protection and suitability for isolation, this Schneider Electric MCB is a durable choice.
Details
- Brand: Schneider Electric
- Part number: A9F73204
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F73210 — Miniature Circuit Breaker (MCB) iC60N, 2P, 10A, B Curve
- Schneider Electric A9F73216 — Acti9 iC60N Miniature Circuit Breaker 2P 16A B-Curve
- Schneider Electric A9F73225 — Miniature Circuit Breaker Acti9 iC60N 2P 25A B-curve
- Schneider Electric A9F73240 — Acti9 iC60N Miniature Circuit Breaker 2P 40A B-Curve
- Schneider Electric A9F73250 — Acti9 iC60N MCB 2P 50A B-curve 6000A/10kA
- Schneider Electric A9F73263 — Miniature Circuit Breaker (MCB) 2P 63A B-Curve
- Schneider Electric A9F73304 — Acti9 iC60N Miniature Circuit Breaker 3P 4A B-Curve
- Schneider Electric A9F73306 — Miniature Circuit Breaker, iC60N, 3P, 6A, B curve
- Schneider Electric A9F73316 — Acti9 iC60N Miniature Circuit Breaker 3P 16A B-Curve
- Schneider Electric A9F73320 — MCB, Acti9 iC60N, 3P, 20A, B-curve
- Schneider Electric A9F73325 — Miniature Circuit Breaker (MCB) Acti9 iC60N 3P 25A B-Curve
- Schneider Electric A9F73340 — Miniature Circuit Breaker Acti9 iC60N 3P 40A B curve
Specifications
- Curve code
- B
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Poles description
- 2P
- Tightening torque
- 2 N.M
- Dimensions (HxWxD)
- 85 x 36 x 78.5 mm
- [In] rated current
- 4 A
- Connection terminals
- 1…25 mm² rigid, 1…16 mm² flexible (copper)
- Trip unit technology
- Thermal-magnetic
- IP degree of protection
- IP20 (IP40 in modular enclosure)
- Manufacturer part number
- A9F73204
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 12...440 V AC 50/60 Hz, <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 50 KA at 220-415 V AC 50/60 Hz, 10 KA at <= 125 V DC
- Ambient air temperature for operation
- -35…70 °C
